Power-up
Before applying power, verify wiring per interconnect
drawing supplied by Ronan. Ensure all boards are fully
seated in frame’s slots. Close front door of the X96S
and secure the door...

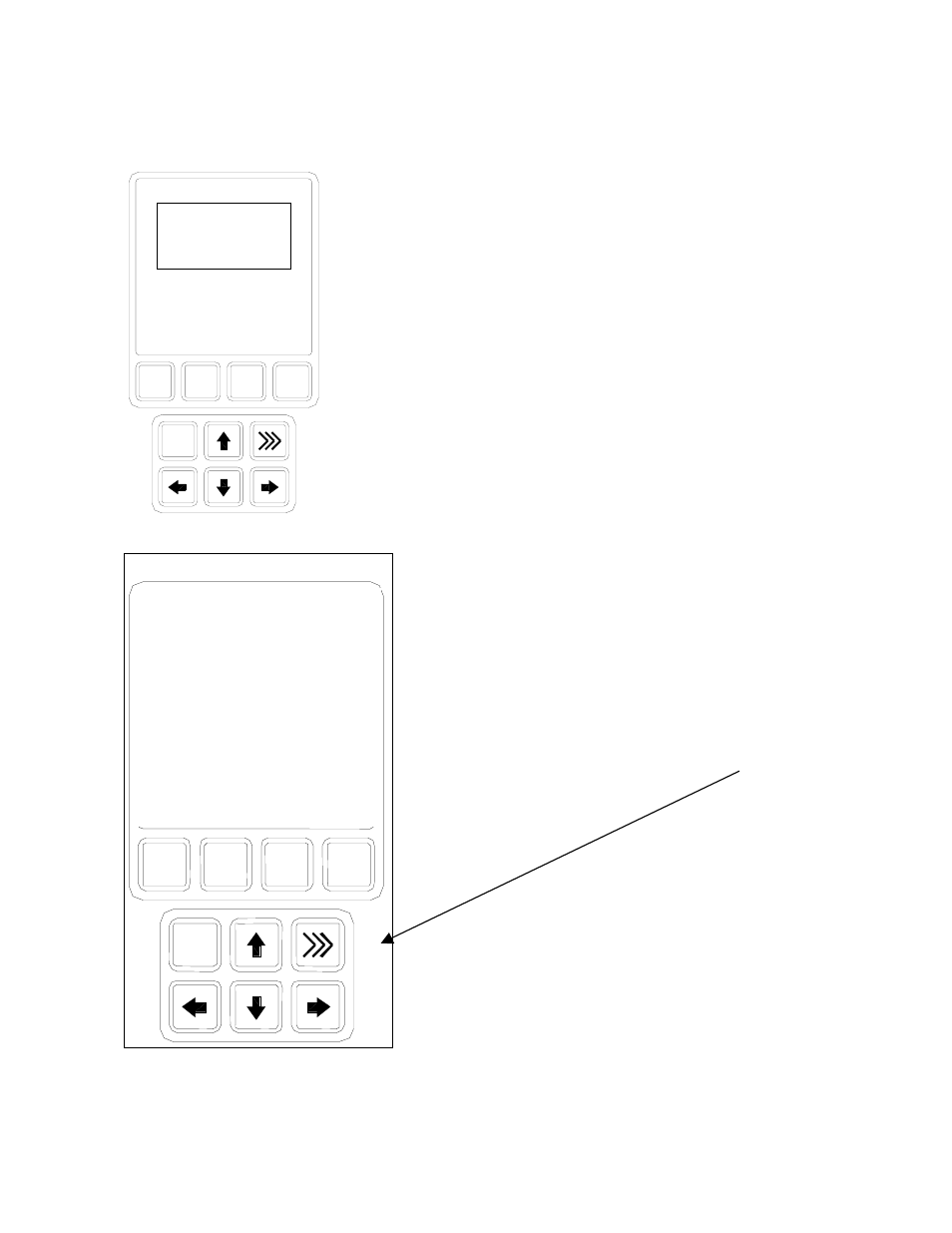

When power is applied the X96S runs a self-diagnostic
program.
First display appears for just a second
The status display appears next. From this screen you
can navigate through your system’s configuration.
To view the status screen at any time or from any point
in the software, you can press the Hot Key >>> on the
keypad.
To access the main display, press the F3 key and enter
the password as shown on the next page.
C
F1 F2 F3 F4
X96S
QQQQ 30%
Ronan Engineering
X96S Mass Flow Gage
Menu Title
Menu line 1
Menu line 2
Menu line 3
Menu line 4
Menu line 5
….
Menu line 11
C
F1 F2 F3 F4
X96S
Ronan Engineering
Please wait . . .
