10
Digital Outputs Output
[Select]
Output [type] Relay 1
Select Sources [type] Relay 2
Polarity [type] Relay 3
Relay 4
TTL 1
TTL 2
TTL 3
TTL 4
Select Sources
Output [type] Output
Alarm 1 [yes/no] [Select]
Alarm 2 [yes/no] Relay 1
Alarm 3 [yes/no] Relay 2
Alarm 4 [yes/no] Relay 3
Alarm 5 [yes/no] Relay 4
Alarm 6 [yes/no] TTL 1
Alarm 7 [yes/no] TTL 2
Alarm 8 [yes/no] TTL 3
Totalizer [yes/no] TTL 4
PD Counter [yes/no]
AutoCal Ref [yes/no]
AutoCal Err [yes/no]
Ref Prompt [yes/no]
Wipe Test [yes/no]
Shutter Test [yes/no]
Empty Clamp [yes/no]
Detector Flt [yes/no]
System Alarm [yes/no]
Polarity
[Select]
NO/Not Driven
NC/Driven
Open/Not Driven
Closed/Driven
Digital Inputs
Input 1 Input #
Input 2
Input 3
Use Use
Input 4 Polarity [Select]
Input 5 Not Used
Input 6 Auto Ref
Input 7 Line Down
Input 8 Totalizer Reset
Polarity
[Select]
Low
High

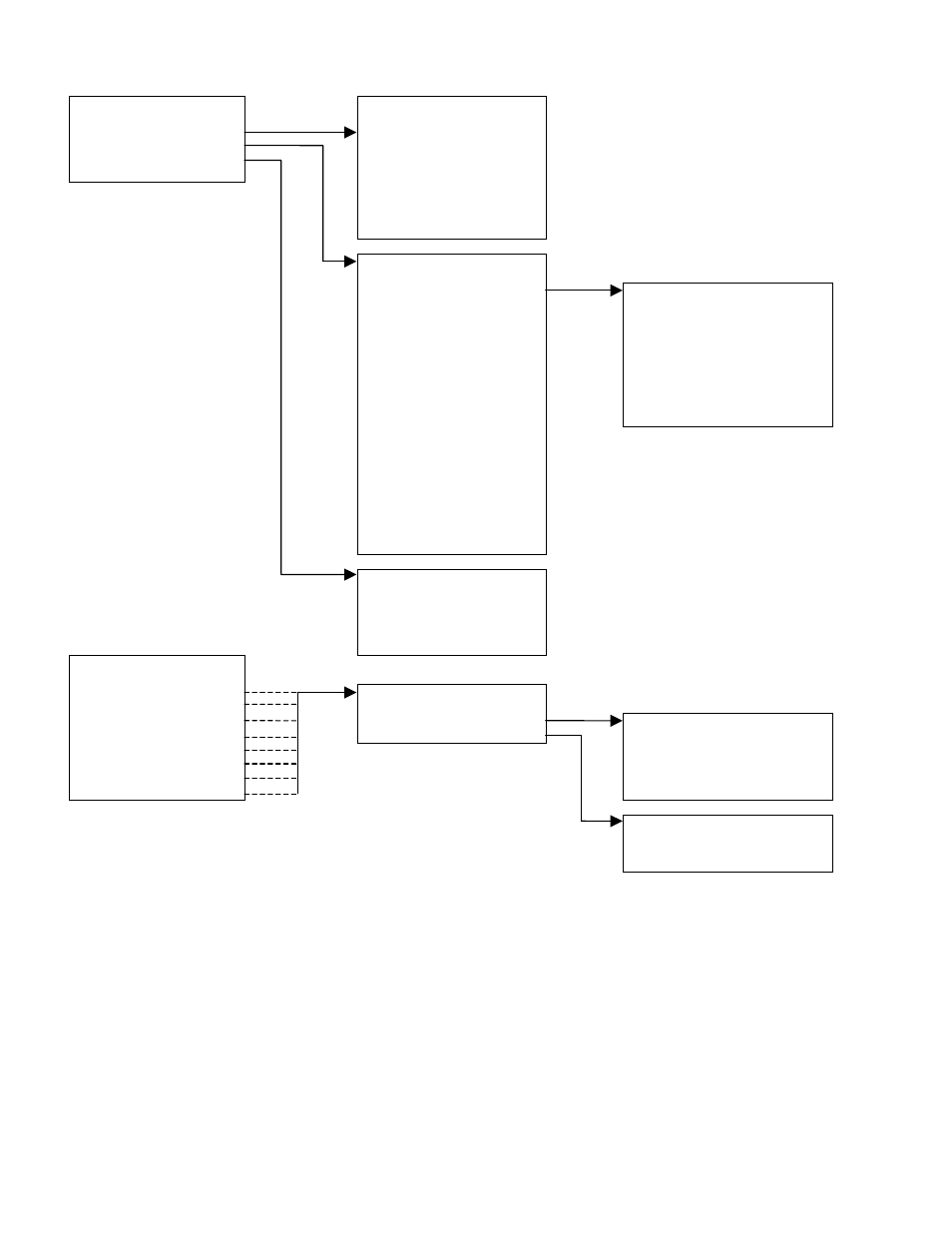

Figure 3-3, Digital Outputs, Digital Inputs Menus
