3-4 Programming
High RPM Analog High RPM is the resolver speed at which full scale analog output will occur. It is
programmed in whole RPM. When this speed is reached, the analog output signal level
will be at full scale (10 VDC or 20 mA). Increasing speed beyond the High RPM will not
increase the analog output beyond full scale.
To program High RPM, move the cursor to “Hi” and use the numeric keys and ENT.
Analog Output
Menu Path MAIN SCREEN to SETUP MENU to ANALOG OUTPUT

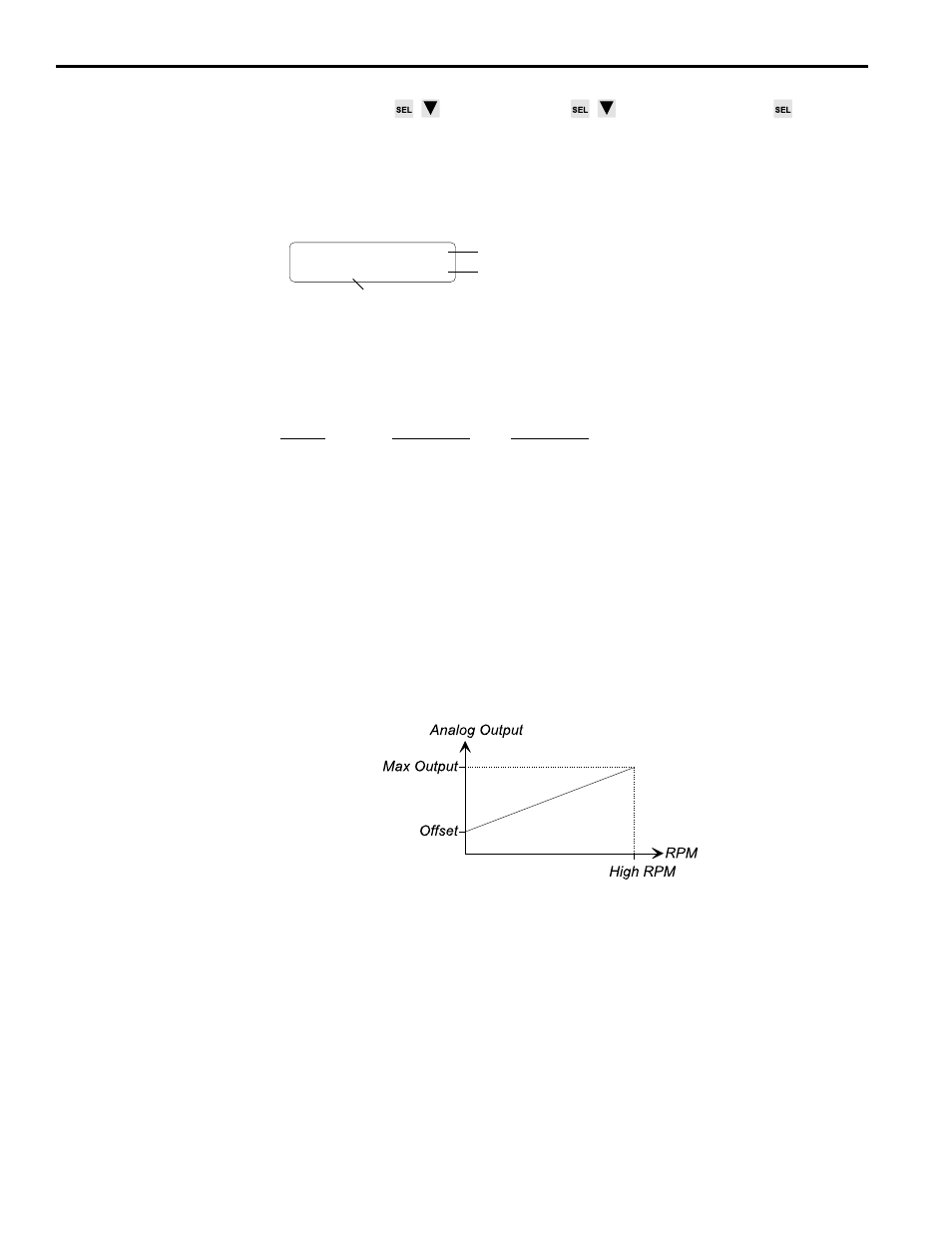

Purpose Analog output signals are linearly proportional to the resolver RPM. Two types of ana-
log output modules are available: 0-10 VDC and 4-20 mA.
This function assigns Offset and High RPM values to output positions for analog mod-
ules.
Screen
Module Number The following table shows the relationship between the analog module number on the
screen and the module position on the controller back. See Figure 9 for an illustration of
analog module positions.
Module #1 Module #2
Model On Screen On Screen
PS-6144-17 Output #17 Output #16
PS-6144-25 Output #25 Output #24
• Analog characteristics can be programmed for Modules #1 and #2 even if no analog
modules are physically mounted on the controller. Programming can be done first,
and modules mounted later.
• To program Offset and High RPM for Module #2, be sure the ANALOG QTY function
(next page) is set to “2.” If ANALOG QTY is set to “1,” programming for Module #2 will
not be available.
• When two analog outputs are used, the two outputs can have different values for
Offset and High RPM.
To program Module Number, move the cursor to “Module” and use the numeric keys
and ENT.
ANALOG MODULE: 1<
OF: 20 HI: 1500 Analog Module Number
Analog High RPM
Analog Offset
