2-19 Installation & Wiring
Fuse Tester & Fuse Replacement
Fuse Tester Figure 17 shows the location of a fuse test socket and LED which can be used to test
TR5 style fuses. PS-6144 controllers are shipped with a spare 4A fuse mounted in the
test socket.
Rating Function ECC Part # Wickmann Part #
250 mA Power for Inputs (TB 2) PS-9005-0250 19374-035
1 A Power for Transistor Outputs (TB 11) PS-9005-0001 19370-048
4 A Fuse for Output Modules PS-9005-0004 19370-062
Replacement TR5 Fuse Part Numbers

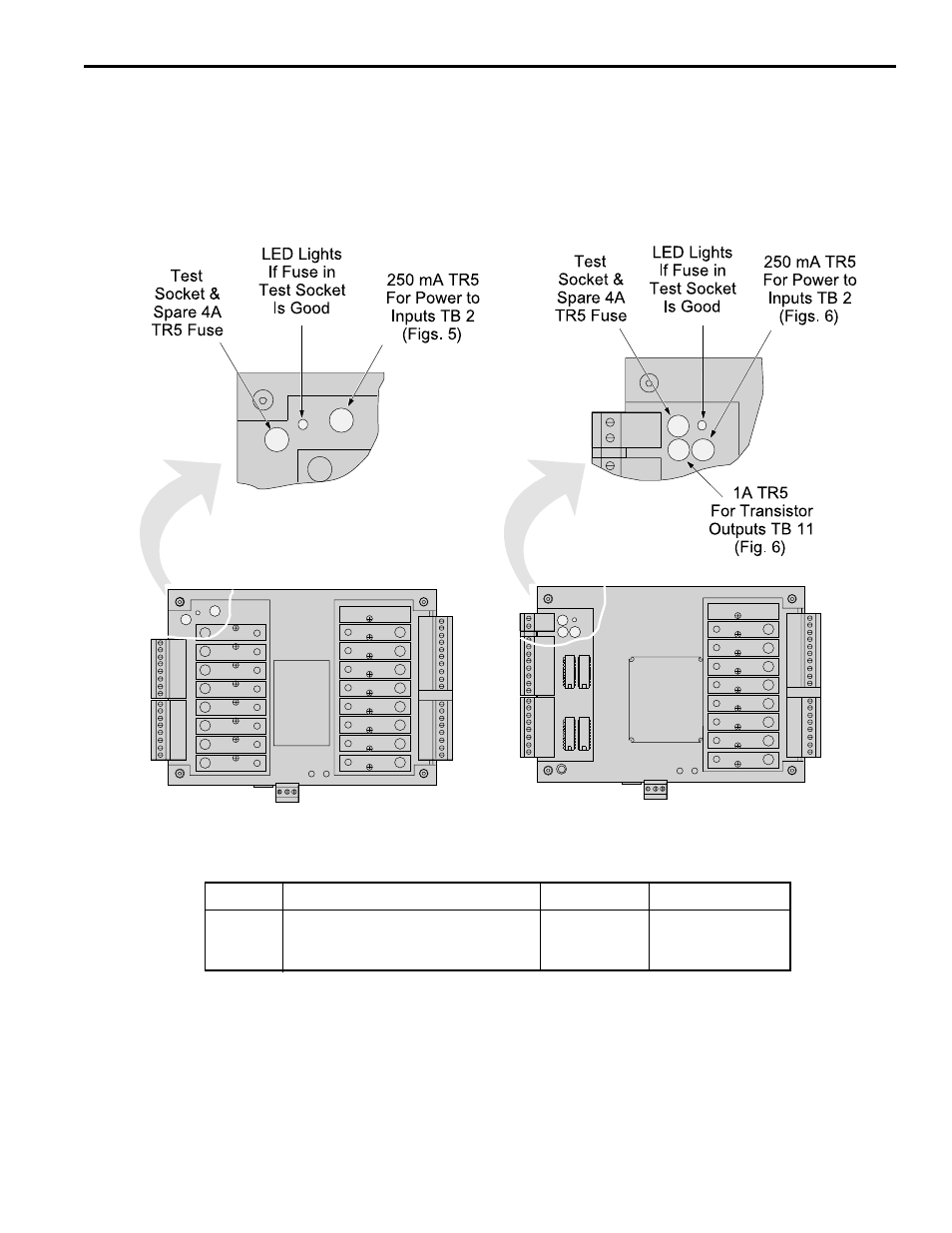

Figure 17—TR5 Fuse Tester and Fuse Locations
PS-6144-24M17
PS-6144-24-X16-M09
