2-17 Installation & Wiring

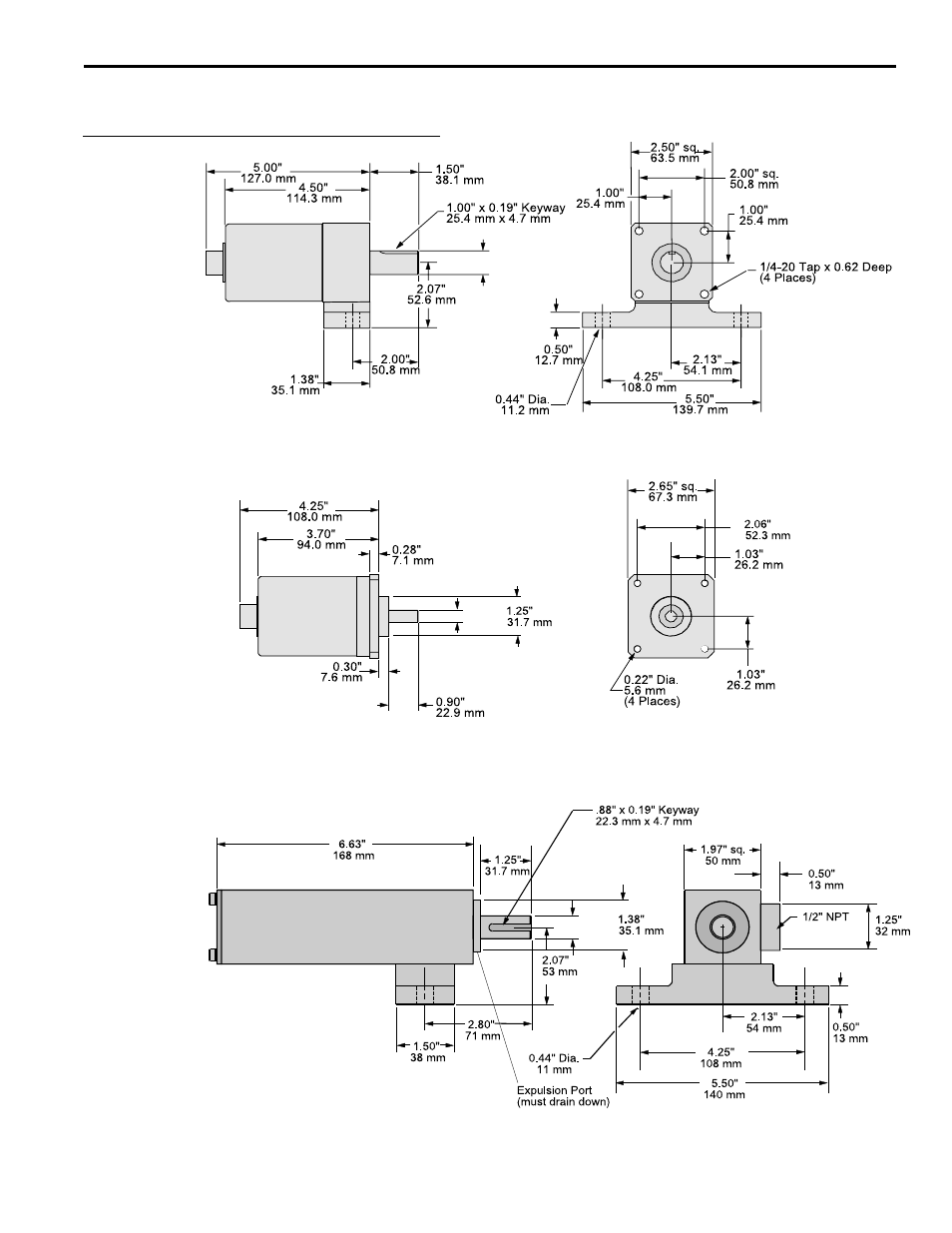

Resolver Dimensions
Figure 16 - Electro Cam Corp. Resolvers
Foot Mount
With Rear Connector (shown):
PS-5238-11-ADR
With Side Connector:
PS-5238-11-ADS
Cable:
PS-5300-01-XXX where “XXX” is length in feet.
0.749/
0.747"
19.02/
18.97 mm
0.375/
0.374"
9.53/
9.50 mm
.625/
.624" dia.
15.88/
15.85 mm
For horizontal applications
Flange Mount
With Rear Connector (shown):
PS-5275-11-ADR
With Side Connector:
PS-5275-11-ADS
Cable:
PS-5300-01-XXX where “XXX” is length in feet.
Stainless Steel
Horizontal Mount
(shown) PS-5262-11-CTG (with right connector)
PS-5262-11-CTL (with left connector)
Vertical Mount (Shaft Up)
PS-5262-11-CTG-V (with right connector)
PS-5262-11-CTL-V (with left connector)
Cable: PS-5300-02-XXX where “XXX” is length in feet.
