Electro Cam PS-6144 Series - Manual (Page 26)

2-18 Installation & Wiring
GR
BK
RD
BK
WT
BK
SH

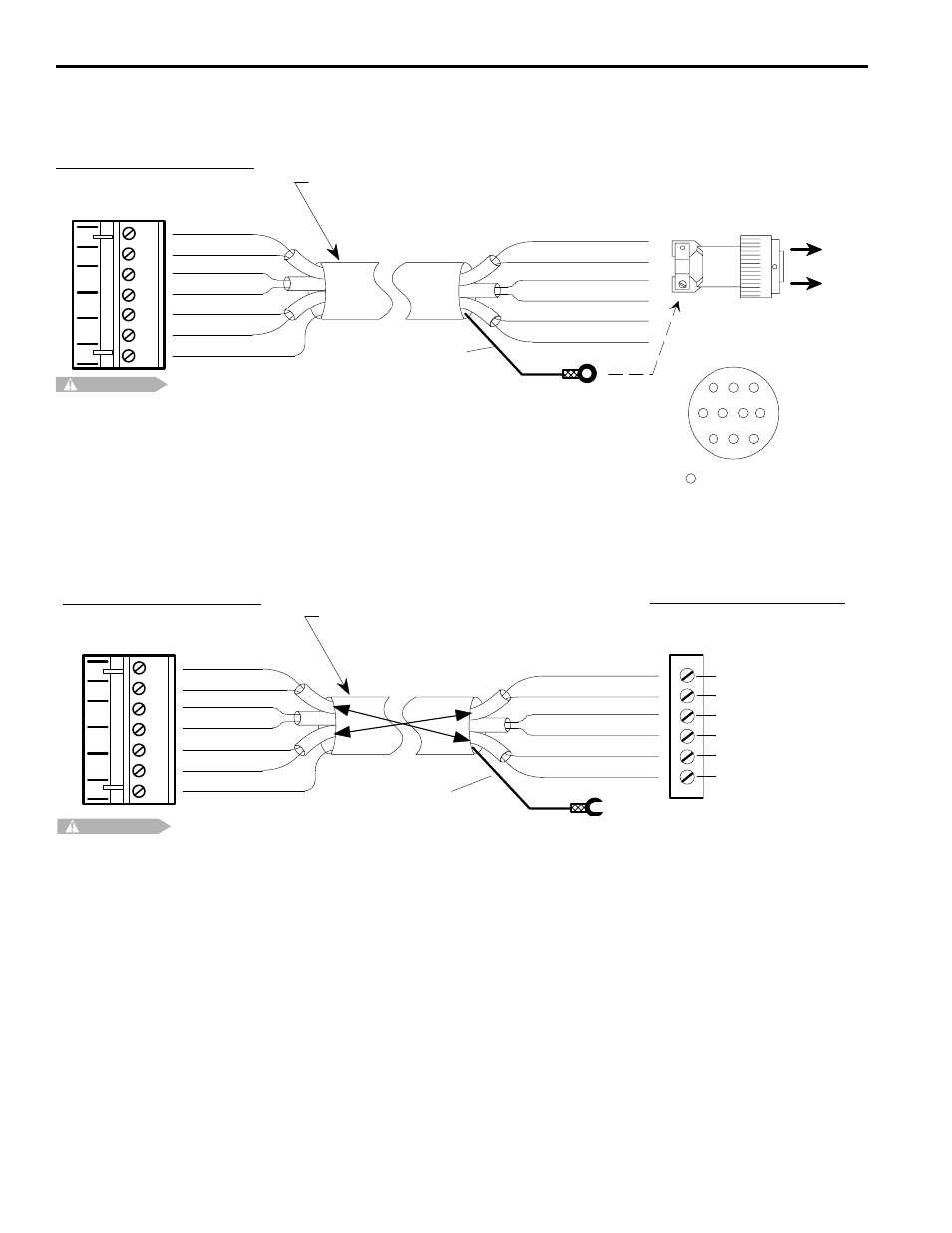

Resolver Cables
Shield
Red
Green
Black
Black
White
Black
Pin A - Black
Pin D - Red
Pin E - Black
Pin F - White
Pin B - Green
Pin C - Black
Connector - Controller End
PT# PS-5300-01-TER
(Weidmuller # BLA7 12822.6)
Cable Type:
3 individually shielded pairs, 22 gauge
Shield
(see note below)
Front View
(pin out)
= Not Used
Shielding Note: Resolver cables made after 3-2-93 have a ring lug on a black shield wire at
the resolver end. The ring lug should be attached to one of the resolver connector strain relief
screws to protect against static discharge through the resolver cable. In some installations,
it may be advisable to disconnect the ring lug to prevent ground loops through the cable shield.
Consult Electro Cam if electrical noise problems are suspected.
Cable for Resolver with Cannon Connector
PT# PS-5300-01-XXX (XXX = Length in Feet)
Cable for Stainless Steel Resolver with Terminal Strip Connections
PT# PS-5300-02-XXX (XXX = Length in Feet)
Connector - Controller End
PT# PS-5300-01-TER
(Weidmuller # BLA7 12822.6) Connector Inside Resolver
(cable is stripped and tinned at
both ends)
Shielding Note: This type of resolver cable will have a spade lug connected to the shield at the resolver end. The lug should
be attached to the grounding stud on the cover plate of the resolver. In some installations, it may be advisable to disconnect
the lug to prevent ground loops through the cable shield. Consult Electro Cam if electrical noise problems are suspected.
Cable Type:
3 individually shielded pairs, 22 guage
Shield
(see note below)
Red
Green
Black
Black
White
Black
Shield
White
Black
Black
Red
Black
Green
Shield
BLK (P/W) WHITE
WHITE
BLK (P/W) RED
RED
BLK (P/W) GREEN
GREEN
Shield
GR
BK
RD
BK
WT
BK
SH
A B
C
D E F
G
H
J K
X
X X X
X
C AU T I O N
C AU T I O N
