Page 75
MOD 30ML Multiloop Controller
MODULAR I/O CONNECTIONS
4.4.3 2007A Nonisolated Digital Output (DOM)
Make nonisolated digital output connections as shown in Figure 4-13. Output specifications
are:
DIGITAL OUTPUTS (NONISOLATED)
Output voltage range
+5 to +24 Vdc
Max Output current
100 mAdc
Response time
100 usec
Maximum leakage current
100 uAdc

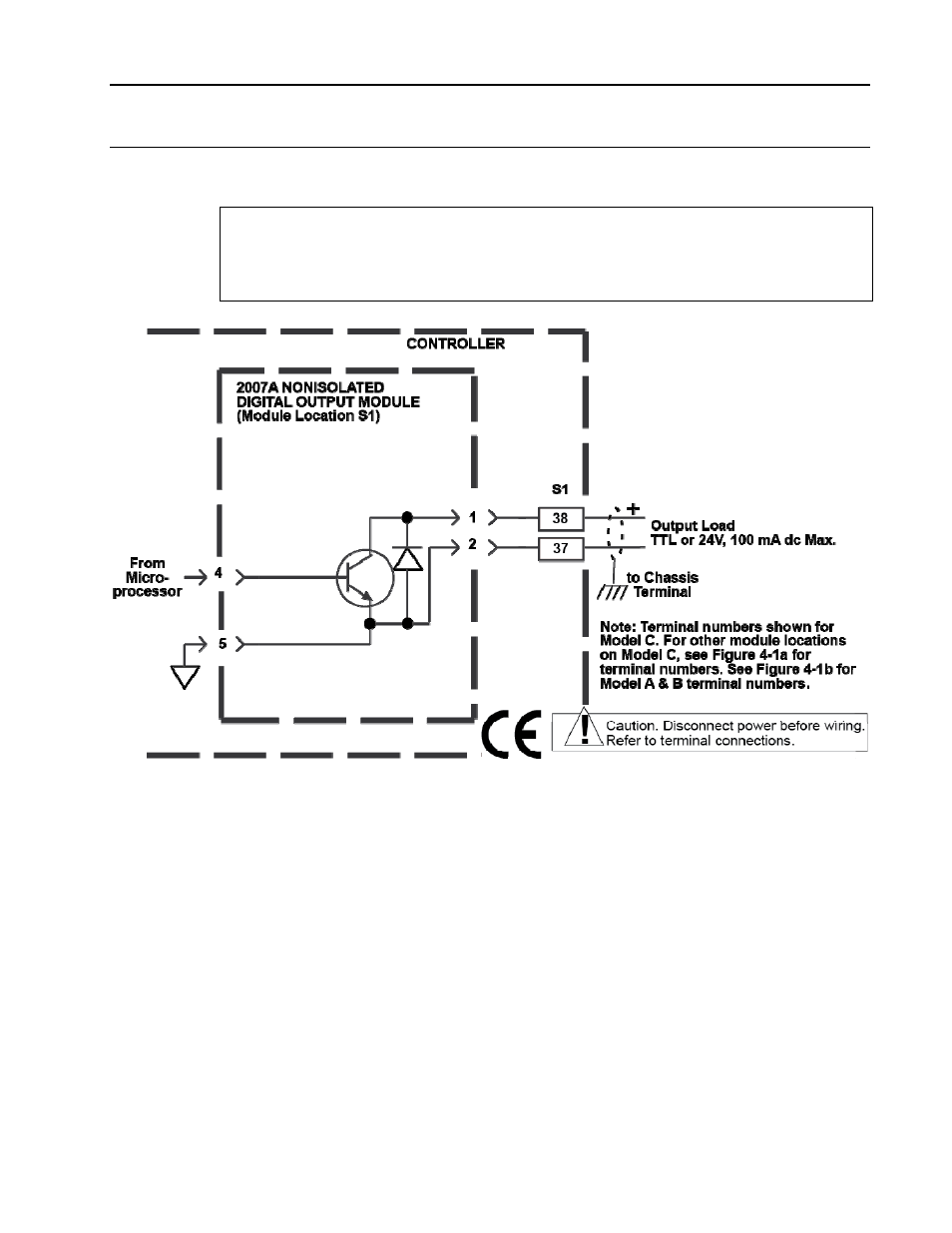

Figure 4-13. Typical Connections for a 2007A Nonisolated Digital Output Module
69
