Micromod MOD: 30ML Installation User Manual
Page 33
MOD 30ML Multiloop Controller
MECHANICAL INSTALLATION
27
MOUNTING DIMENSIONS FOR 1800R
1.5 inch (38.1mm) clearance for optional communications jack.
NOTES: 1. When mounting housing in panel cutout or rack and panel mounted bezel, turn retaining screws
until point of screw touches rear of panel or bezel. Overtightening of retaining screws will
distort housing. Housing must be square after retaining screws are tightened.
2. Only the NEMA 4 option contains the gasket and lower front panel screw. Also, communication
jack and service manual switch are not present on NEMA 4 option.
3. The 1801R has a bezel width of 2.735in (69.47mm) and uses the same panel cutout as the
1800R.

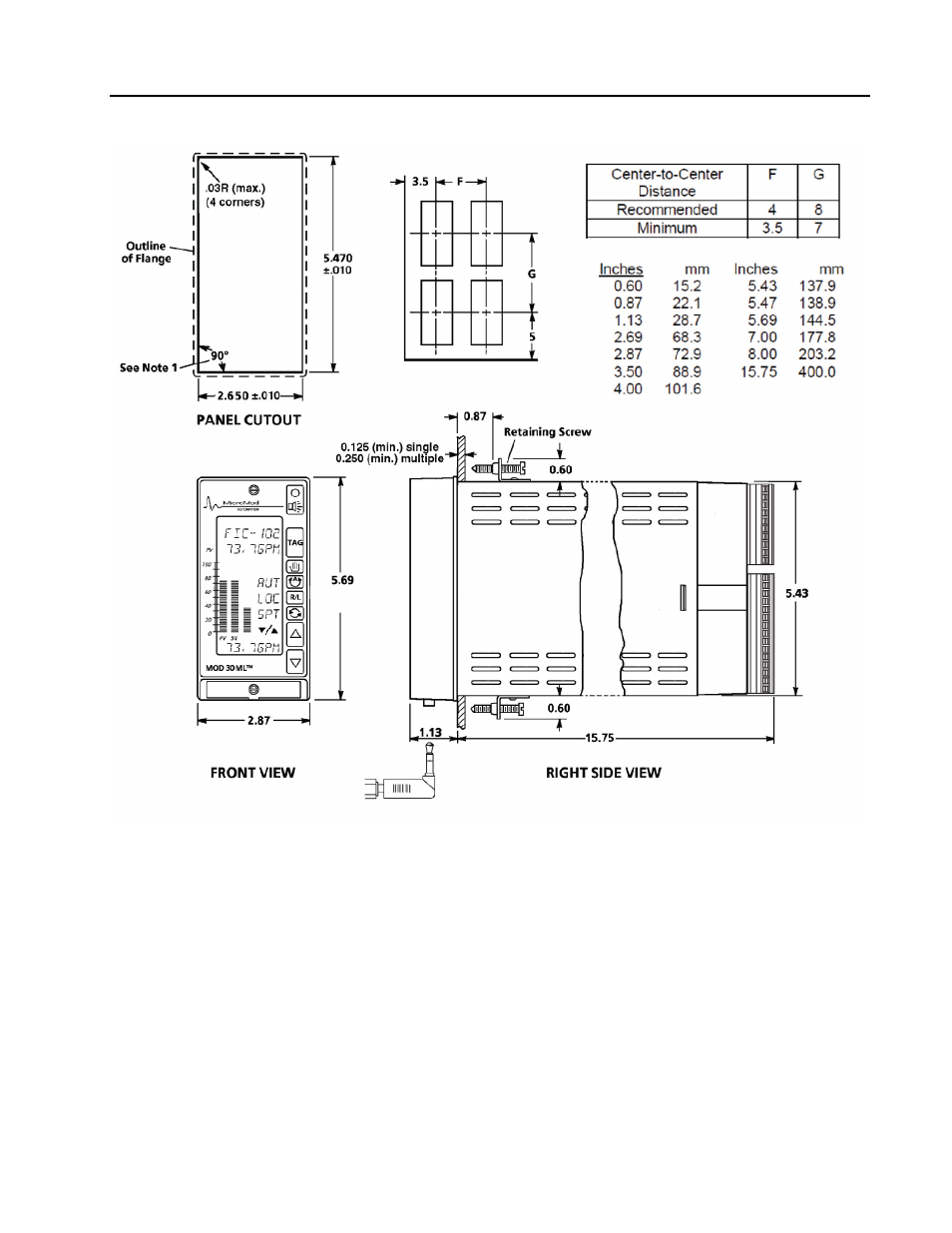

Figure 2-2 1800R Controller Mounting Dimensions
