Micromod MOD: 30ML Installation - Manual (Page 23)

MOD 30ML Multiloop Controller
PRODUCT DESCRIPTION
1.4.10 2011A Mechanical Relay Output Module
The Mechanical Relay Output Module may have dual SPST relays or a Form C relay. This
module uses the Dual Digital Output Module (DDOM) Block for configuration of dual SPST
output parameters or the Wide Digital Output Module (WDOM) Block for configuration of
Form C output parameters.

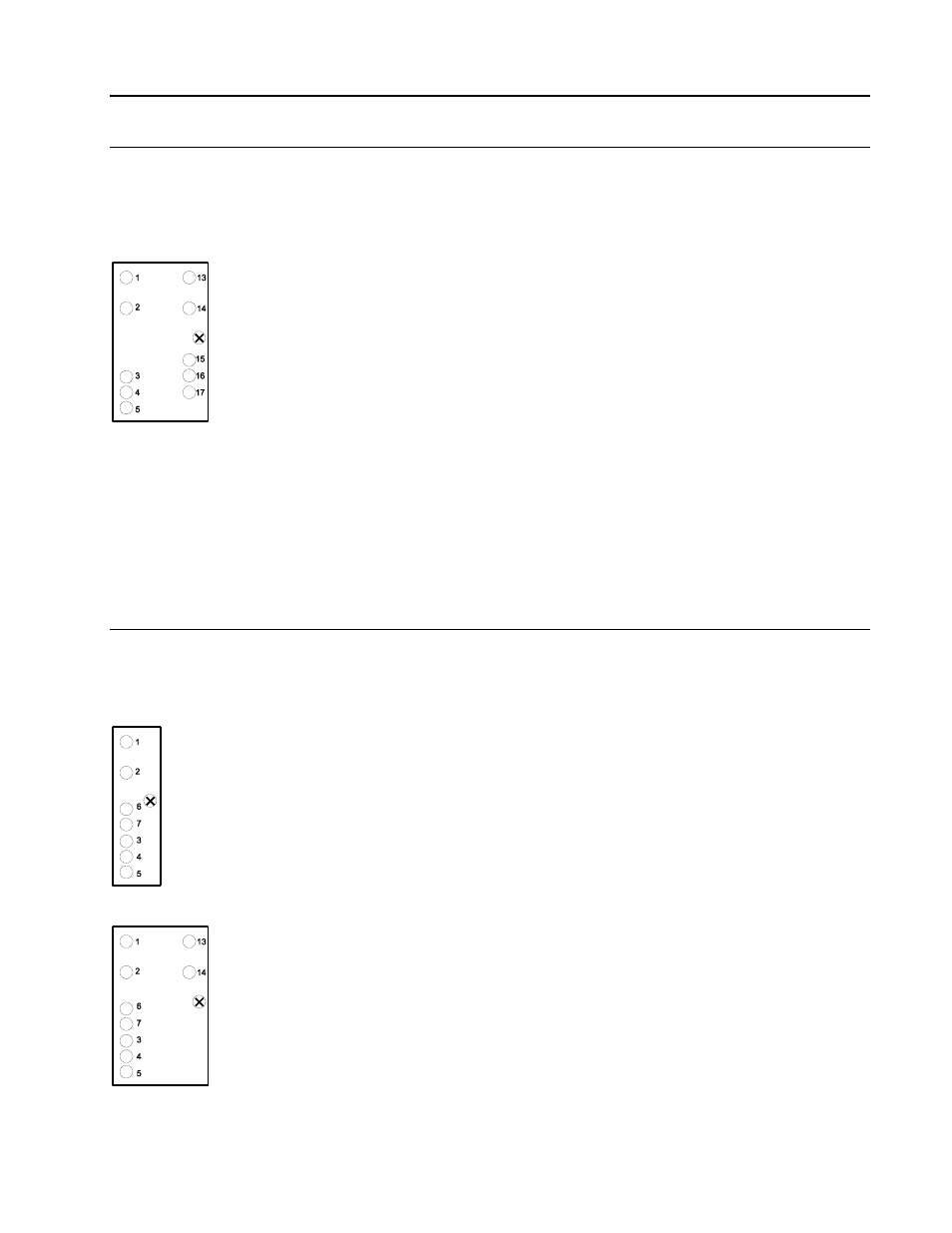

DDOM
WDOM
Catalog Number Description for 2011A
BASE NUMBER 2011A Mechanical Relay Output Module
UNUSED
Z Unused Character
ELECTRICAL CODE 10
General Purpose
TYPE 10
Dual SPST, NO/NO
11 Dual SPST, NC/NC
12 Dual SPST, NO/NC
20 Form C
UNUSED
0 Unused Character
MODEL
A Design Level
Sample Number
2011AZ10100A
1.4.11 2009A RTD Input Module
The RTD Input Module is available in two basic forms, 2-wire 0 to 4000 ohm (single wide)
and 3-wire 0 to 400 ohm (double wide). RTD sensors use the Wide Resistance Input Module
(WRIM) Block for configuration of 3-wire input parameters and the Resistance Input Module
(RIM) Block for configuration of 2-wire input parameters.
RIM
Catalog Number Description for 2009A
BASE NUMBER
2009A RTD Input Module
UNUSED
Z Unused Character
ELECTRICAL CODE 10
General Purpose
REF. RESISTANCE
1 100 Ohm (3-wire 0 to 400 only)
2 1000 Ohm (2-wire 0 to 4000 only)
WRIM
CONNECTION 2 2-Wire (0 to 4000 Ohm)
3 3-Wire (0 to 400 Ohm)
4 2-Wire CJC Sensor (1000 ohm RTD, Table 4-2)
MODEL
B Design Level
Sample Number
2009AZ10130B
17
