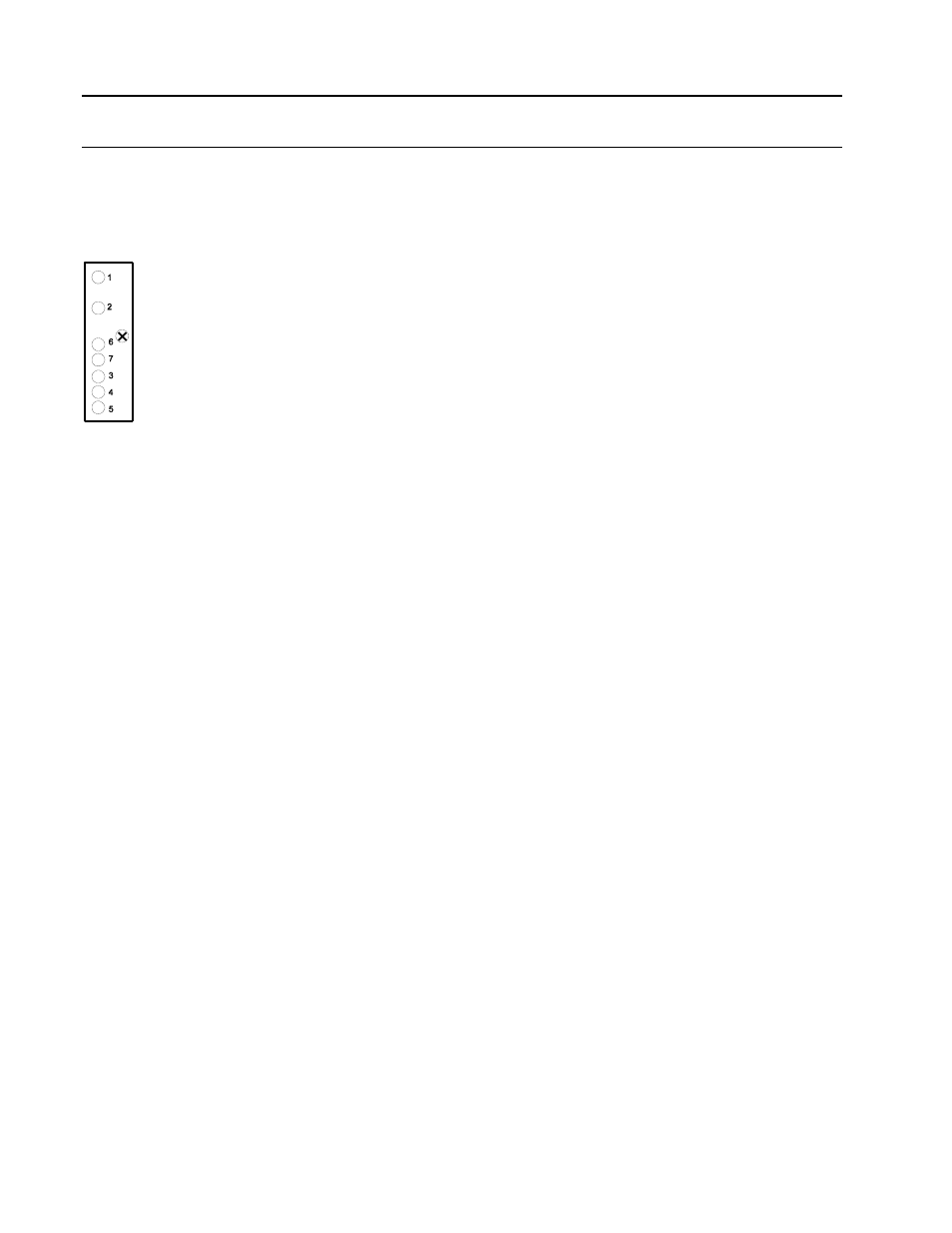

1.4.5 2003A Current Output Module
The current output module provides an isolated 0-20 mA or 4-20 mA current output. An
internal A/D converter reads back the output value to check for open outputs or broken wires.
This module uses the Analog Output Module (AOM) Block for configuration of output
parameters.
AOM
Catalog Number Description for 2003A
BASE NUMBER 2003A Current Output Module
UNUSED
Z Unused Character
ELECTRICAL CODE 10
General Purpose
OUTPUT RANGE
10 4 – 20 mA
ISOLATION 1 Isolated
MODEL
A Design Level
Sample Number
2003AZ10101A
