MOD 30ML Multiloop Controller
MODULAR I/O CONNECTIONS

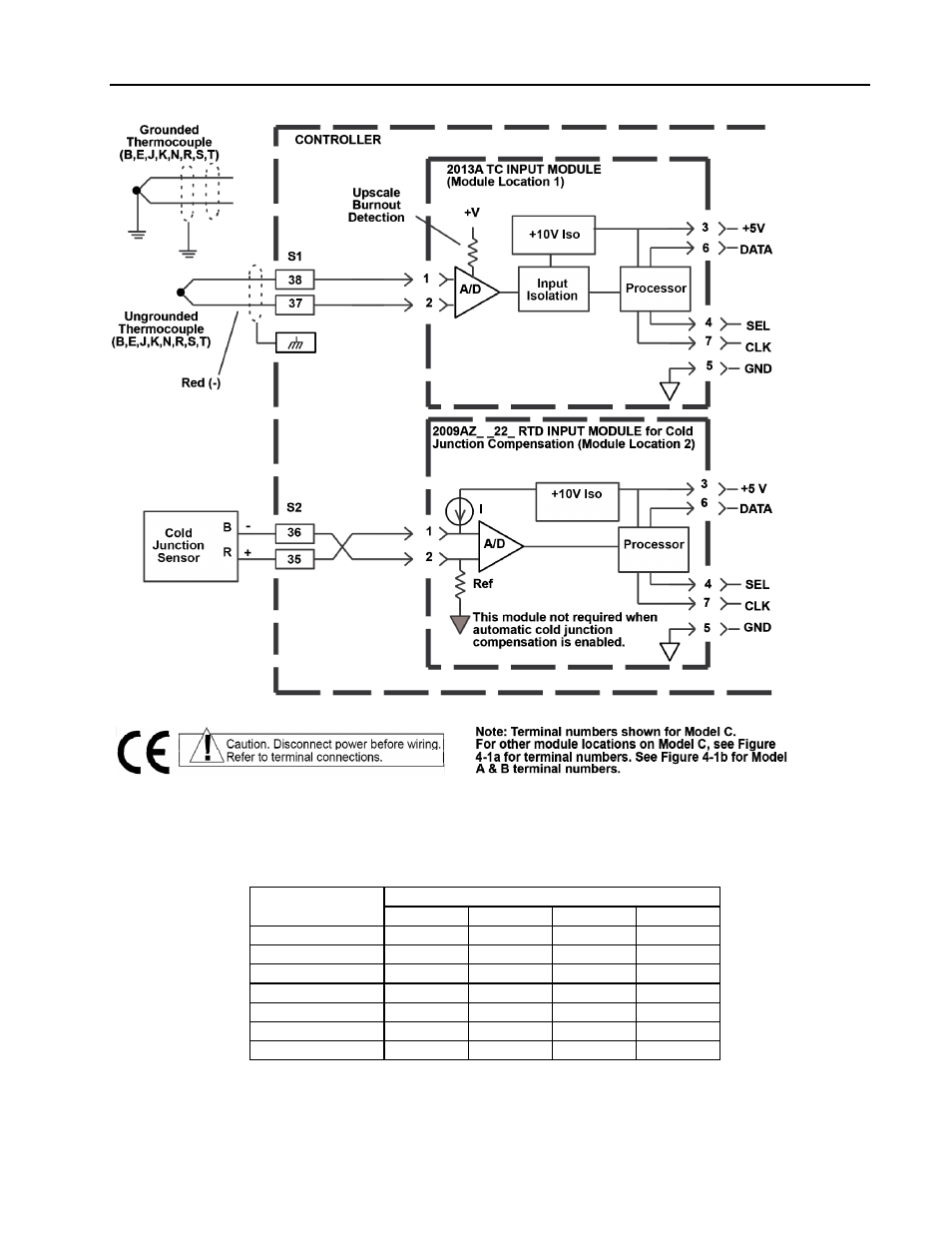

Figure 4-2. Typical Connections for a 2013A Thermocouple Input Module, and a 2009A RTD Module for
Cold Junction Compensation
Table 4-1. Temperature Range Limits for Thermocouple Input Modules
Measuring Range Limits
Thermocouple °C Lower °C Upper °F Lower °F Upper
Type B 200 1820 392 3308
Type E –200 1000 –328 1832
Type J –210 760 –346 1400
Type K –200 1372 –328 2501
Type N 0 1300 32 2372
Types R and S 0 1768 32 3214
Type T –257 400 –430 752
55
