MOD 30ML Multiloop Controller
MODULAR I/O CONNECTIONS
4.4 MODULAR OUTPUT CONNECTIONS
This section describes the process input connections for the following input module types:
 2003A Current Output Module - Section 4.4.1
 2005A Solid-State Relay Output Module - Section 4.4.2
 2007A Nonisolated Digital Output Module - Section 4.4.3
 2011A Dual Mechanical Relay Output Module - Section 4.4.4
 2011A Form C Mechanical Relay Output Module - Section 4.4.5
4.4.1 2003A Current Output (AOM)
Make current output connections as shown in Figure 4-10. Due to heat generated, this
module must be installed in a location with no adjacent module on either side.
When the instrument is installed in the European Union, an interface filter must be connected
in the signal wires to the module to comply with European Union (EU) Electromagnetic
(EMC) requirements. Use a Phoenix Contact FILTRAB NEF1-1 or equivalent. Reference
Phoenix Contact Ltd., P.O. Box 131, D32819, Blomberg, Lippe, Germany, Phone 52-35-
320510.
Output specifications are:
ANALOG OUTPUT
Range: (0-100%) 4 to 20 mA
Low limit: 0 mA
Upper limit: 25 mA
Open circuit voltage: 26 Volts maximum
load limit: 800 Ohms
Isolation : 250 Vrms
Resolution: 12 bits
Sensitivity: 5 uA
Accuracy: ±0.2% of span

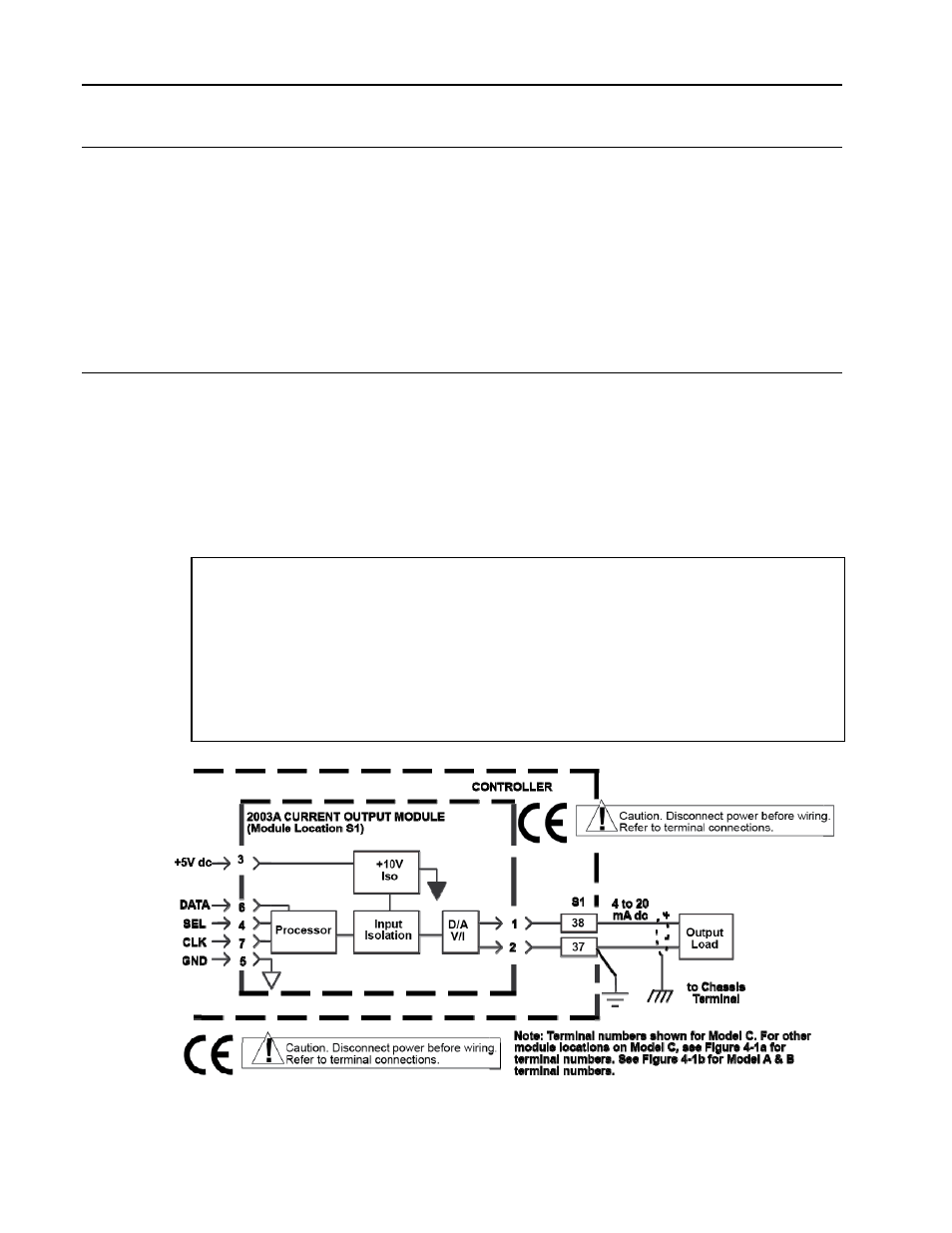

Figure 4-10. Typical Connections for a 2003A Current Output Module
