Micromod MOD: 30ML Installation User Manual
Page 69
MOD 30ML Multiloop Controller
MODULAR I/O CONNECTIONS

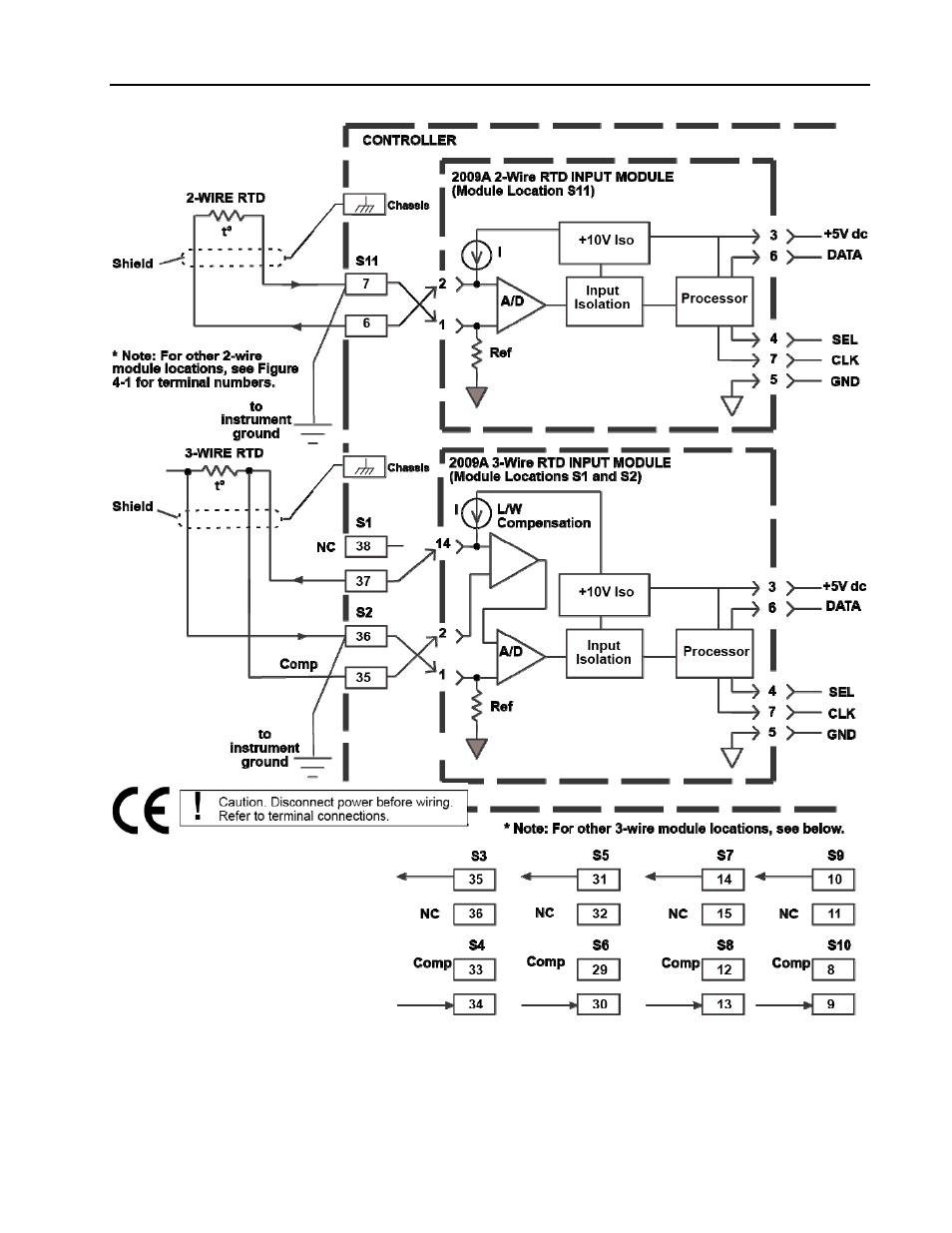

Figure 4-8. Typical Connections for a 2009A 2-Wire or 3-Wire RTD Input Module
*
NOTE
:
The lead wire resistance effect is about +0.001
/ (ohms per lead).
Assuming 20 ohms per lead, the total error could be calculated as follows:
Error = ((0.001
/ × 20 /lead) 400 Module Span) Ч 100% = 0.005%
63
