Page 26
MOD 30ML Multiloop Controller
PRODUCT DESCRIPTION
20
1.5.4 2034N RS-485 Communication Module for Modbus (4-Wire)
This RS-485 Communication module contains a driver and receiver that provide Extended
Modbus communications capability for the instrument. This module can be used for either a
point-to-point or point-to-multipoint Modbus network. The Extended Modbus communications
supported by this module include data base downloading, reading diagnostics, reading the
system event queue, and reading and writing controller attributes.

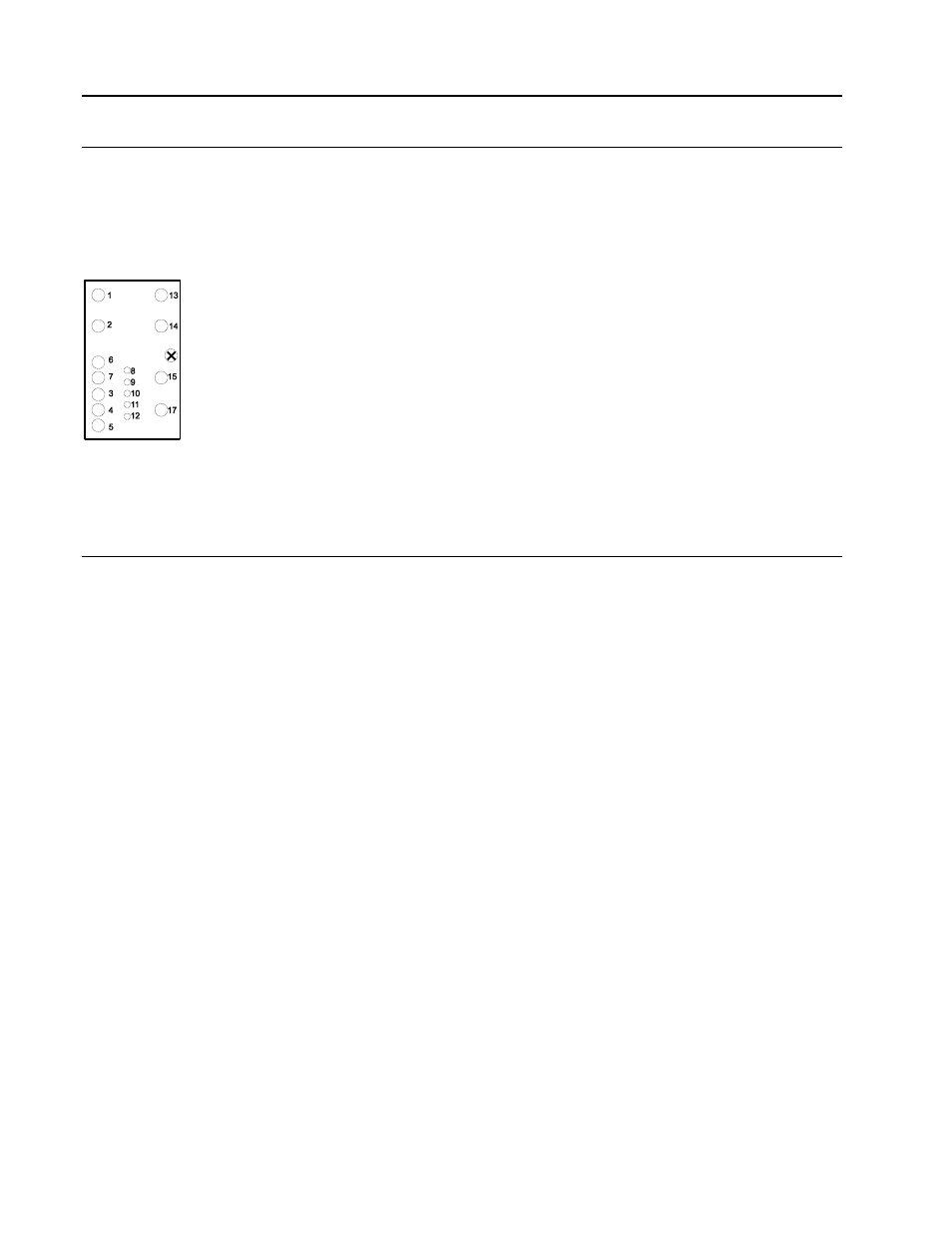

MSC
Catalog Number Description for 2034N
BASE NUMBER
2034N
RS-485 Communication Module for Modbus (4-Wire)
UNUSED
Z
Unused Character
ELECTRICAL CODE 10
General Purpose
UNUSED
000
Unused Character
MODEL
A
Design Level
Sample Number
2034NZ10000A
1.5.5 2030F ICN Terminator
The ICN Terminator is used to provide a termination scheme for an ICN network. One
termination is required per ICN.
Catalog Number Description for 2030F
BASE NUMBER
2030F
ICN Terminator
UNUSED
Z
Unused Character
Unused
0000
Unused Characters
FORMAT
1
1800R (also for Modcell Eurocard)
MODEL
A
Design Level
Sample Number
2030FZ00001A
