4 modular i/o connections, 1 general, 2 modular i/o connection guidelines – Micromod MOD: 30ML Installation User Manual

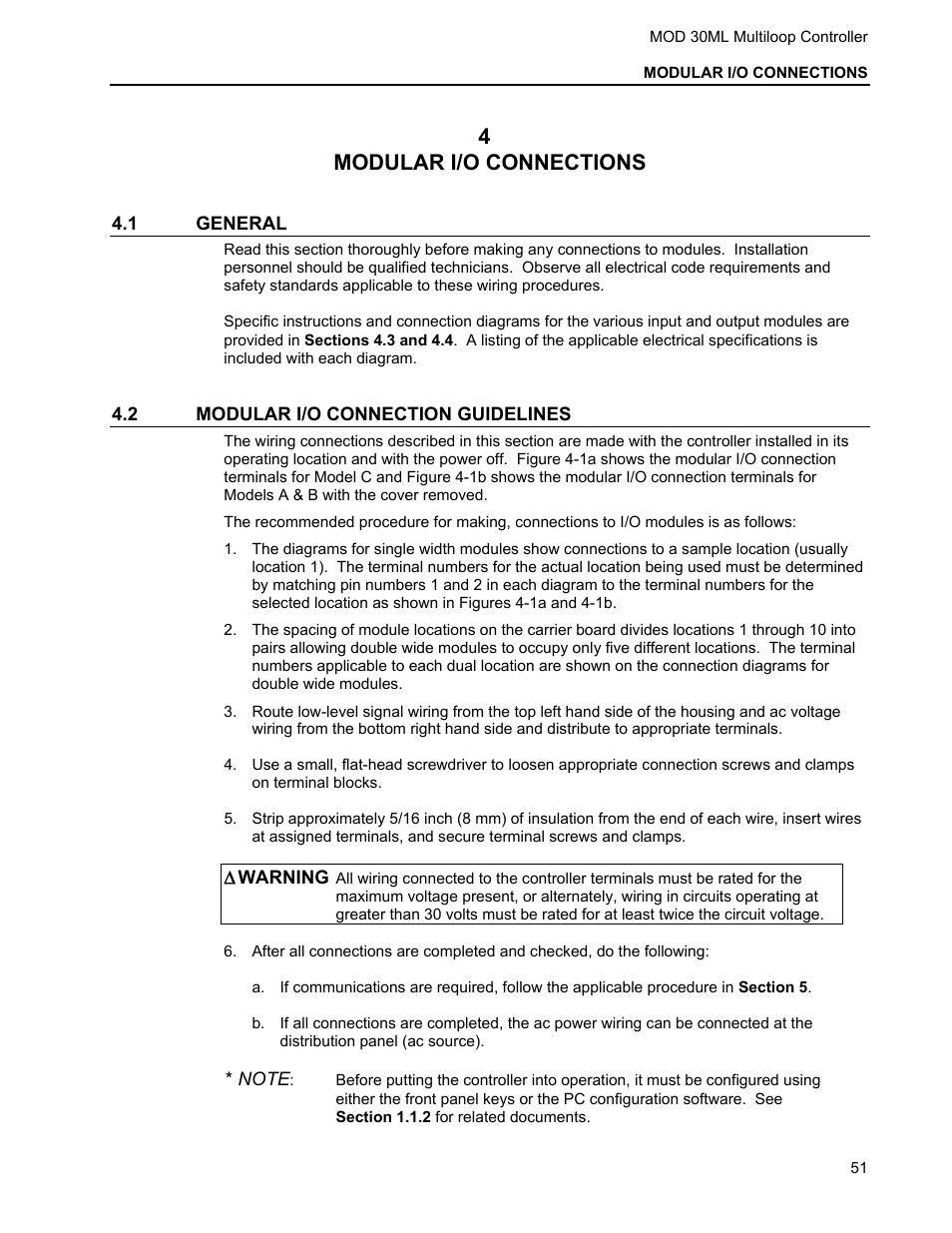

Page 57: 4modular i/o connections
