Magnum Venus Plastech Megaject RTM Pro Revison 7_0 User Manual
Page 53
Megaject RTM Pro Manual – Revision 7.00 – 13
th
APRIL 2006
Remove top head block bolts. Split head into two sections. Remove head block O
ring.(0742) To remove NRV 3 (0042), first remove spring retaining pin ()503) Screw
M8 bolt partially into the valve body (0493) and pull body to remove it from head.
Block (0727)
NRV 2 may be unscrewed from the side port after removing 6 mm clear pipe at union
(0665)

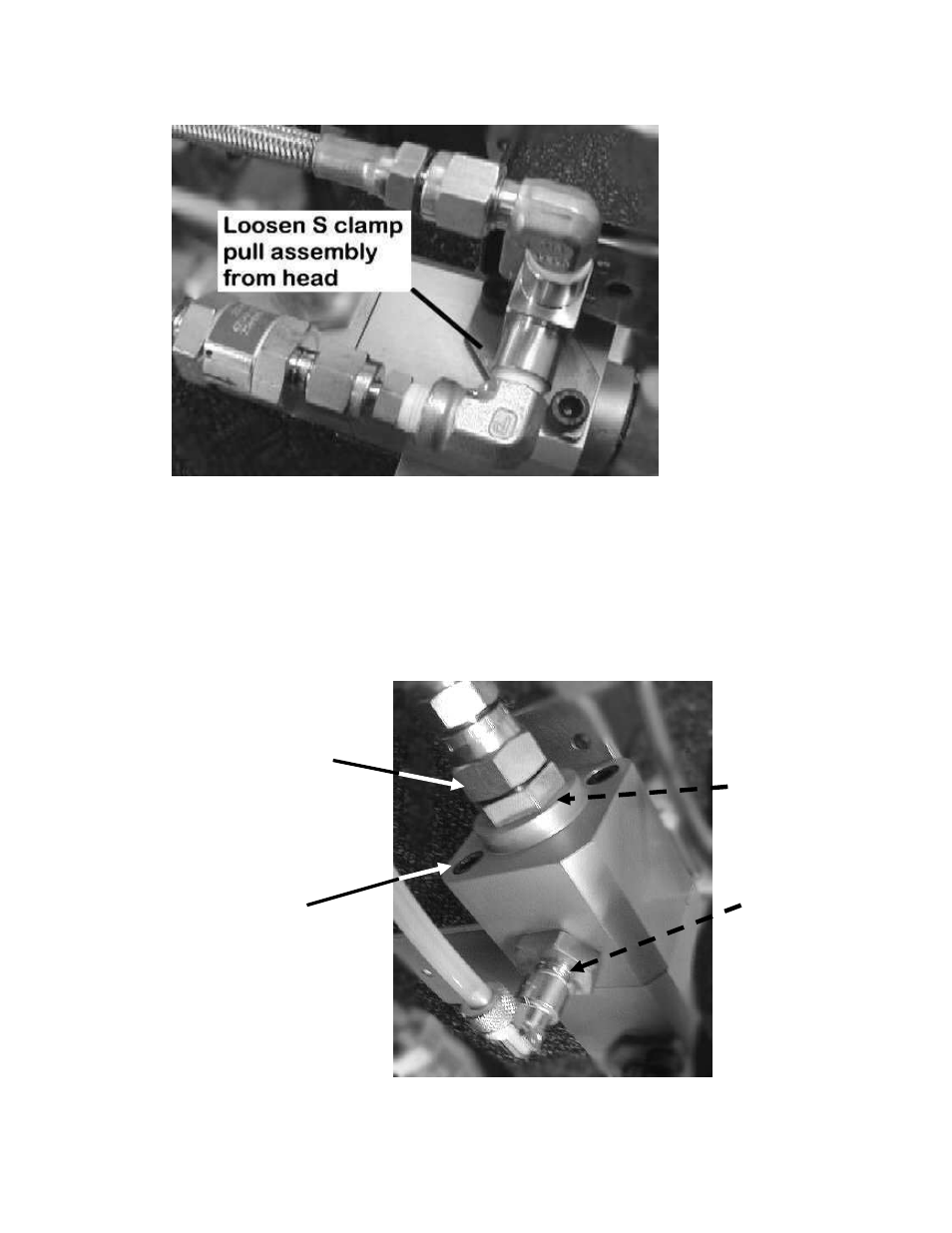

To remove Resin
valve/actuator
Assembly, unscrew
swivel joint here (Note –
small amount of resin
will leak)
To split head
blocks (0728 and 0727)
Remove 2 x M6
NRV 2
NRV1
