In order to pause the machine during the injection, press the STOP button. If you wish
to end the injection prematurely, press the FLUSH button when the machine is in the
paused state.
To restart the machine when paused, simply press the START button once again.
When the machine has finished injecting the quantity of resin specified in the selected
recipe, it will move the head valves back to the recirculation position and closed any
selected sprues. The machine will then proceed to flush the system automatically,
using the same system described in section 3.8.

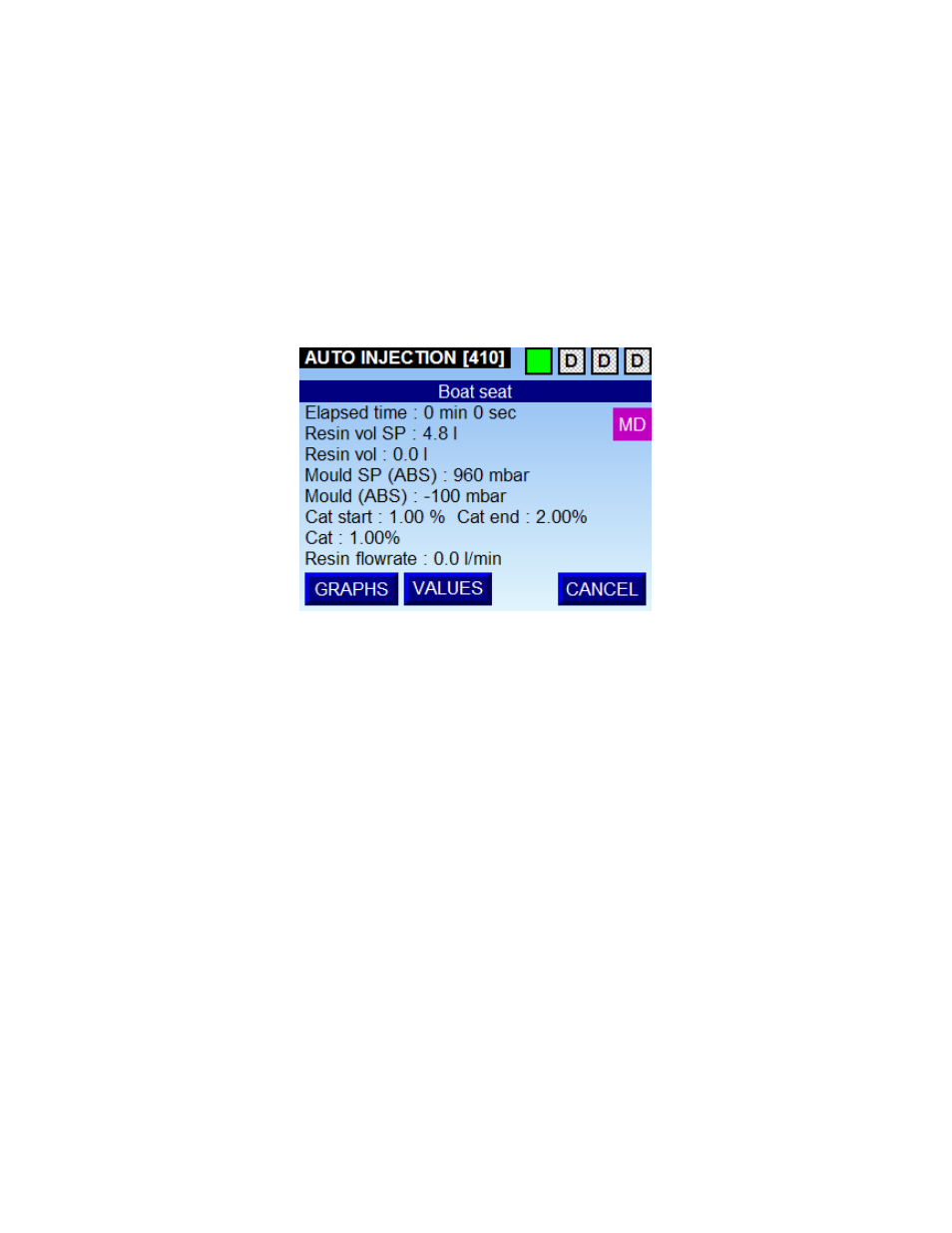

Figure 3.14 – Automatic injection using mould pressure control
When the recipe selected utilises mould pressure control, the user may operate the
machine in an identical way to that described above.
The only differences to the display, an example of which can be seen in Figure 3.14,
are the mould pressure set point (SP) and actual mould pressure values are displayed
instead of the head pressure SP and actual head pressure values. Additionally, and
indicator containing the letters MD, is displayed below towards the top right of the
screen, below the recipe title.
3.11. Logout/Shutdown
When the user wishes to stop using the machine, they must firstly logout of the
system. The machine should not be left unsupervised when a user is logged on; in
order to ensure that unauthorised users do not use the machine irresponsibly. To
logout select the LOGOUT/SHUTDOWN button from the main menu to navigate to
the login screen, which will appear as shown in Figure 3.15.
