4. Configuration
The configuration and maintenance menu screen shown in Figure 4.0, can be accessed
by pressing the CONFIGURATION & MAINTENANCE button on the main menu
screen. These buttons allow the operator to select various screens, which allow the
user to configure how the machine functions and can also be used assist maintenance
operations. To return to the main menu, press the DONE button.

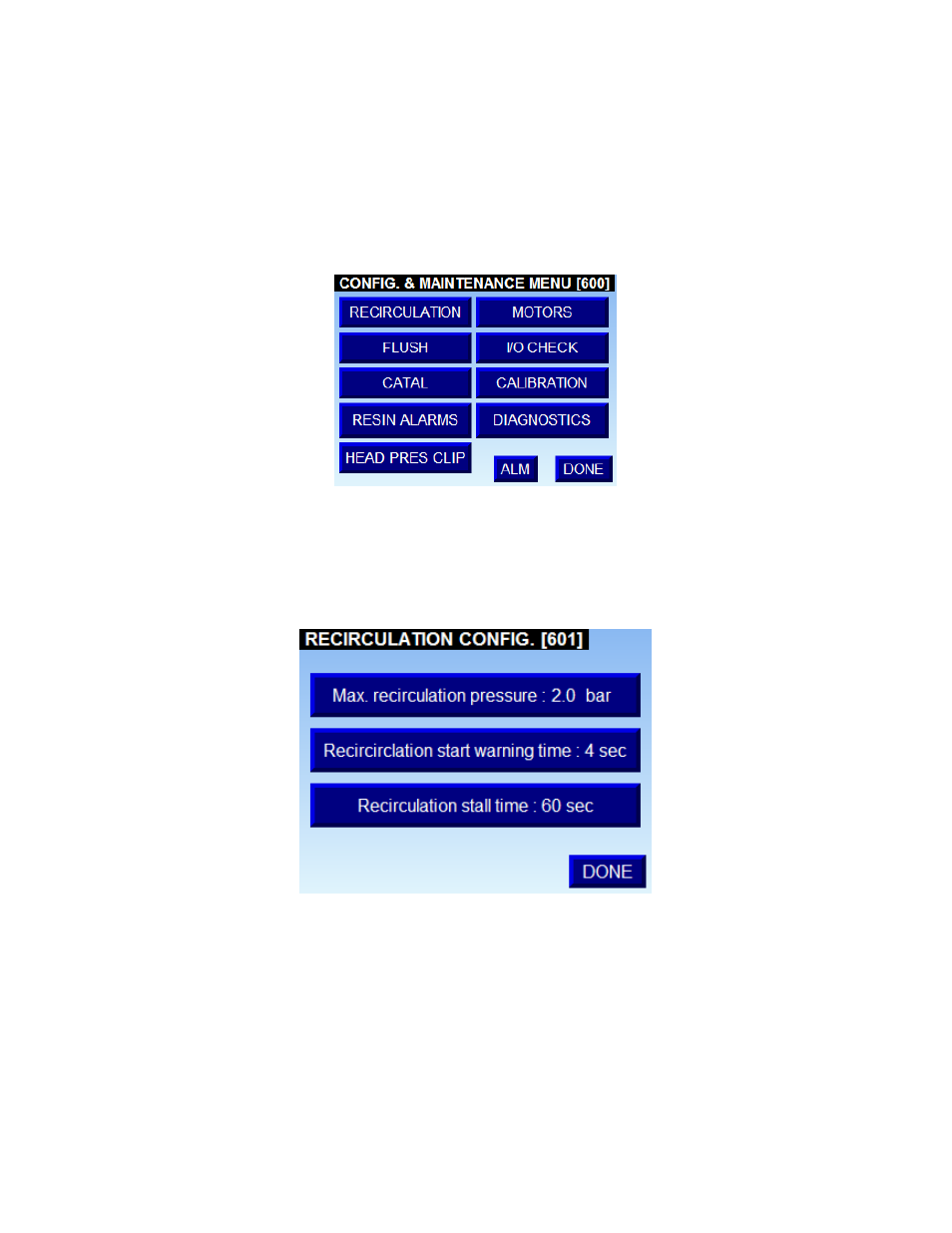

Figure 4.0 – Configuration & maintenance menu
4.1. Recirculation
The recirculation configuration screen can be seen in Figure 4.1 and gives the user the
ability to adjust how the recirculation function operates.
Figure 4.1 – Recirculation configuration screen
The maximum recirculation pressure button is used to set the maximum amount of
pressure, which can be selected to operate the pumps on the recirculation screen. If for
example, this value is set to 2 bar, when the recirculation rate is set to 100% on the
recirculation screen, 2 bar would be delivered to the air cylinder driving the pumps. If
the recirculation rate was adjusted to 50%, 1 bar would be supplied to the air cylinder
and so on.
