- 8 - H.I.S. Instruction Manual

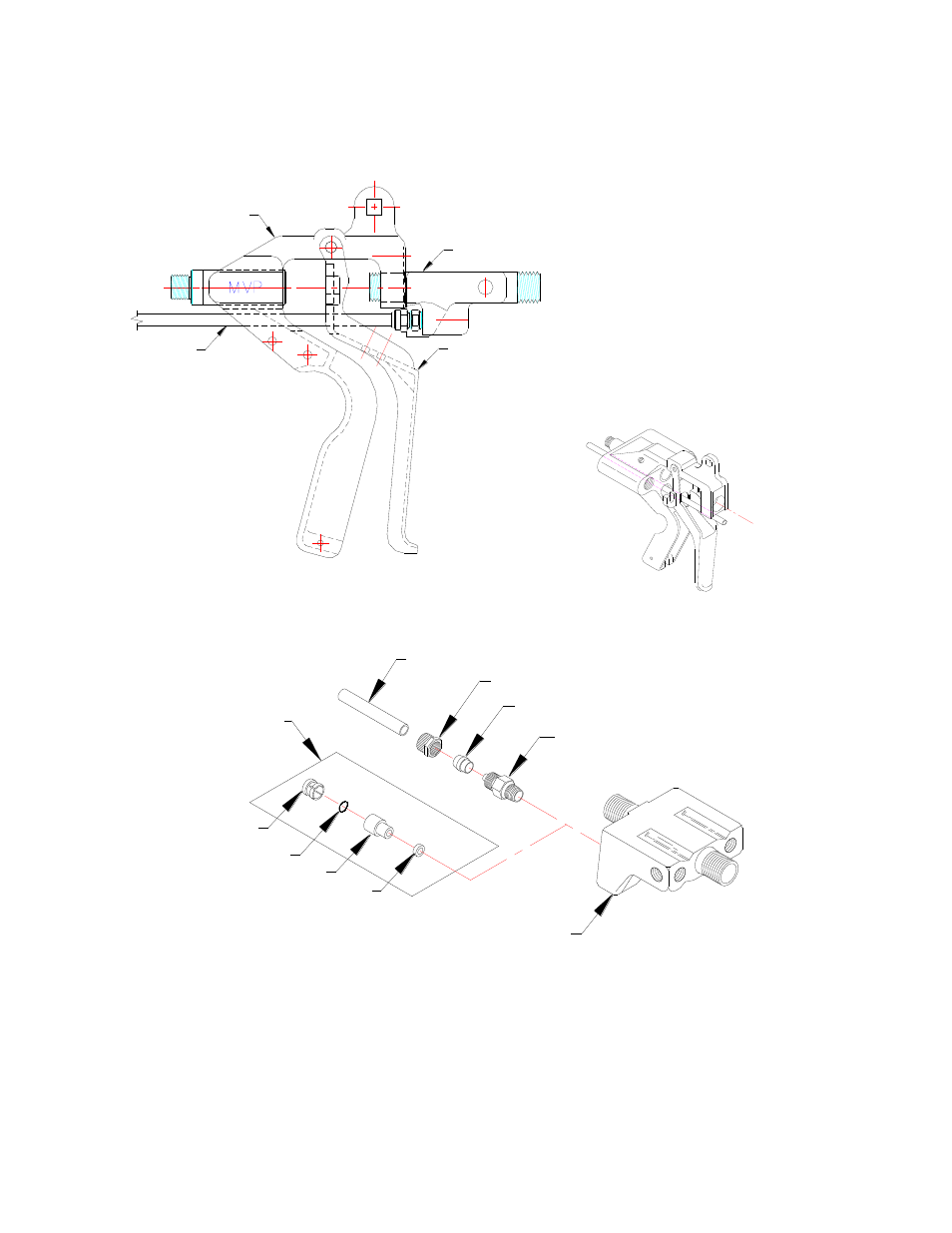

FLUSH TUBE
GUN HANDLE
GUN TRIGGER
GUN BLOCK
Magnum Venus Products recommends gun handle be sent to Magnum Venus
Products or contact Magnum Venus Products for machining instructions.
1. Cut tube square with a sharp razor
knife, remove any burs.
2. Feed the flush tube through the hole
in the handle and then through the hole
in the trigger.
3. Push the flush tube into the ferrule of
the flush fitting and tighten the nut.
FLUSH HOSE INSTALLATION
DETAIL lV
01405-1 O-RING
01250-1 BUSHING
01200-5 FITTING BODY
02440-1 SEAL
NO LONGER SOLD IN
THIS CONFIGURATION
09244-1 CONNECTOR
7701-6-11 FERRULE
GUN BLOCK
POLY NUT
POLY TUBE
FLUSH HOSE AND FITTING CONFIGURATIONS
DETAIL V
