- 11 - H.I.S. Instruction Manual
common to mounting bracket, plywood sheet and wall stud; a proper installation when lag
screws are tight.
At a location 39” from bottom of plywood and 1 ¼” to the right of plumb line, screw a lag
screw through bottom hole in the manifold and spacer tube provided, and into plywood.
Position the manifold parallel to plumb
line and screw the other ¼” x 4” lag screw through
manifold and spacer and into plywood. Tighten both lag screws until flush with surface of
manifold.
Measure 10 ½” in from right hand edge (right hand as you face sheet) of plywood 1 ½” up
from bottom of sheet, position the lowest attachment hole of the flush tank bracket and
secure to plywood.
Mount resin pump on bracket. Attach catalyst jug bracket. Securely tighten.

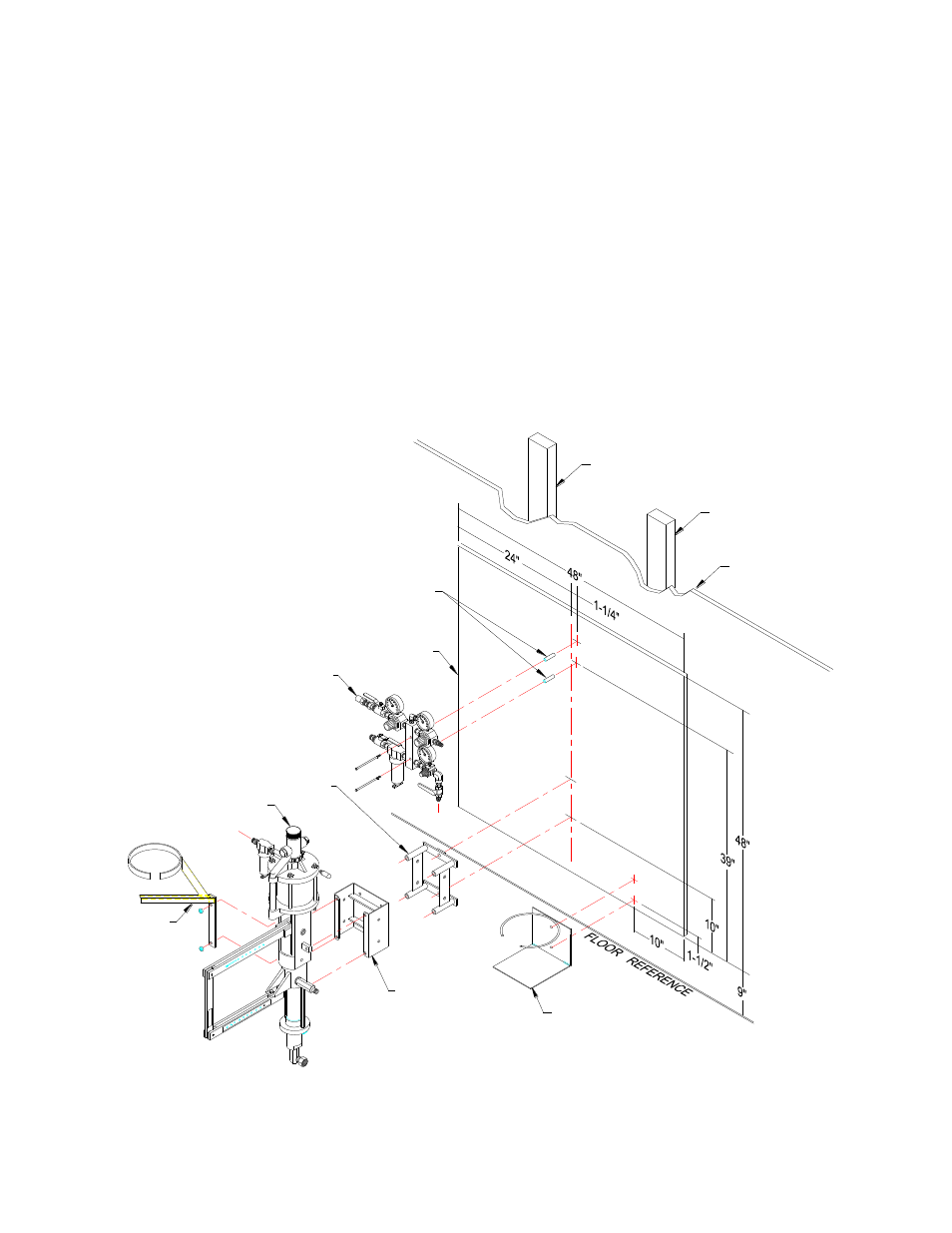

CATALYST JUG
BRACKET
PUMP
PUMP MOUNT BRACKET
ALTERNATE PUMP MOUNT
BRACKET USED ON NEWER
SYSTEMS
FLUSH TANK BRACKET
AIR MANIFOLD
1-1/2" MANIFOLD SPACER (2)
STUD / BUILDING SUPPORT MEMBER
WALL BOARD
4' x 4' x 3/4" PLYWOOD
FOR DIRECT WALL MOUNTING OR ON WALL
MOUNTING BOARD - BE SURE PUMP IS MOUNTED
SECURELY TO LOAD SUPPORTING BUILDING
MEMBER. HONOR 9" FLOOR REFERENCE DISTANCE
FOR PICK UP WAND DRUM USE. UNIT MAY BE
RAISED TO 22" FROM FLOOR REFERENCE FOR BULK
SUPPLY CENTRAL SYSTEM.
STUD / BUILDING SUPPORT
MEMBER
DETAIL Vll
