Example Simatic

When HALA09AC.GSD is imported, the slave will be located at PROFIBUS DP, ADDITIONAL FIELD DEVICES, GENERAL.

1. Select 2 Words from Slave network card.

Each module is 4 bytes of the input address range.

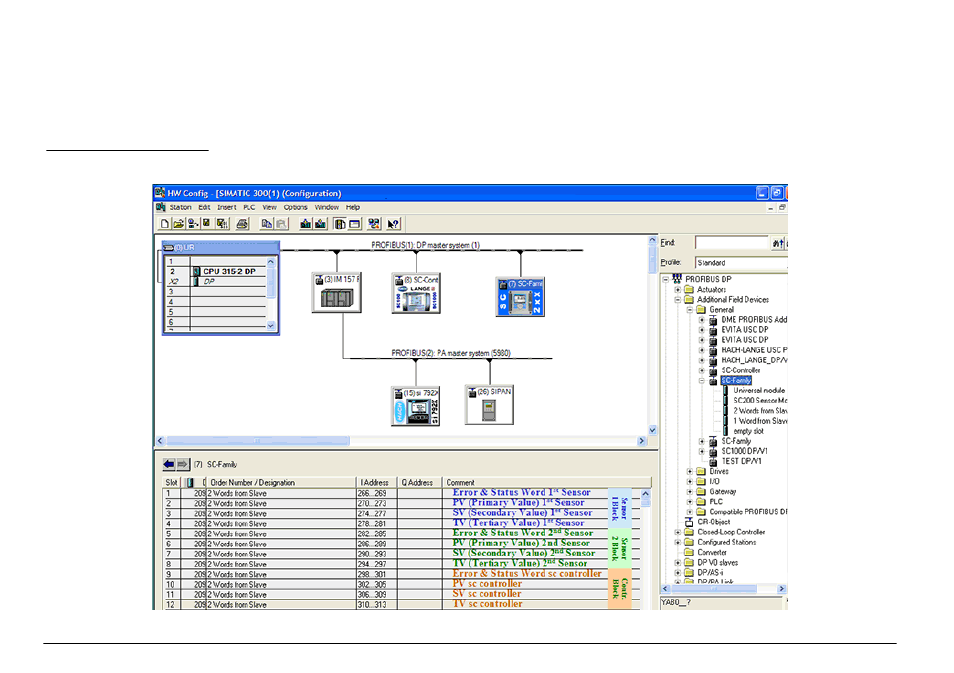

Figure 4 Example Simatic

14 English
