64
Standard Operations
7. Select a tag and press the ENTER button. The new tag is added to the Telegram list.
Select a tag and press the UP and DOWN button to move the position of the tag
( Figure 48 and Table 15 ).
8. Repeat the steps to add further devices and tags.
9. Press the ENTER button to store the Profibus configuration.
5.12.2 Error and status register
Note: ERROR and STATUS definitions are valid for all sc probes.

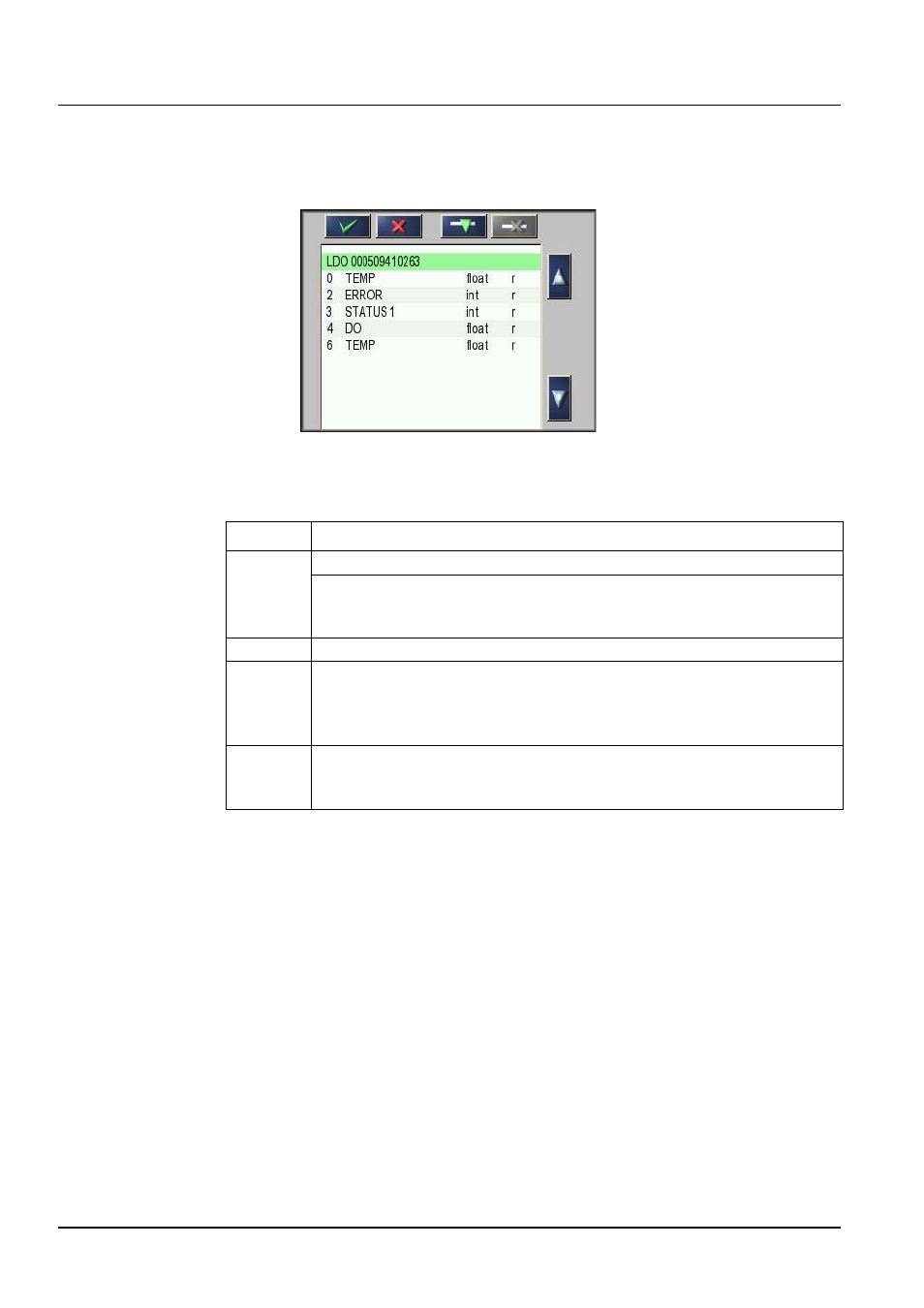

Figure 48 Profibus/Modbus configuration menu — Telegram list with new tag
Table 15 Telegram list—Column description
Column Description
1
Profibus: Data position in the configured Profibus slave (in 2 byte words)
Modbus: Data position in the configured Modbus slave
This slave contains holding registers beginning at 40001.
Example: “0” means register 40001 or “11” means register 40012.
2 Tag name to identify the configured data.
3
Data type
float=floating point value
int=integer numbers
sel=integer value resulting from a enum (selection) list
4
Data status
r=data are read only
r/w=read/write
