11

Section 3

Installation

3.1 Mechanical installation

3.2 Mounting the controller

3.2.1 Wall mounting

Leave a minimum of 5 cm (2 in.) of space at the top and sides for cooling purposes and
display module installation. Leave a minimum of 15 cm (6 in.) of space underneath for the
cable connections. Refer to

Figure 3

for proper wall mounting dimensions.

1. Install four bolts into the wall.

2. Hang the sc1000 controller over the bolts and attach the supplied washers and

hand-tighten the two bottom bolts.

D A N G E R

Only qualified personnel should conduct the tasks described in this section of the manual.

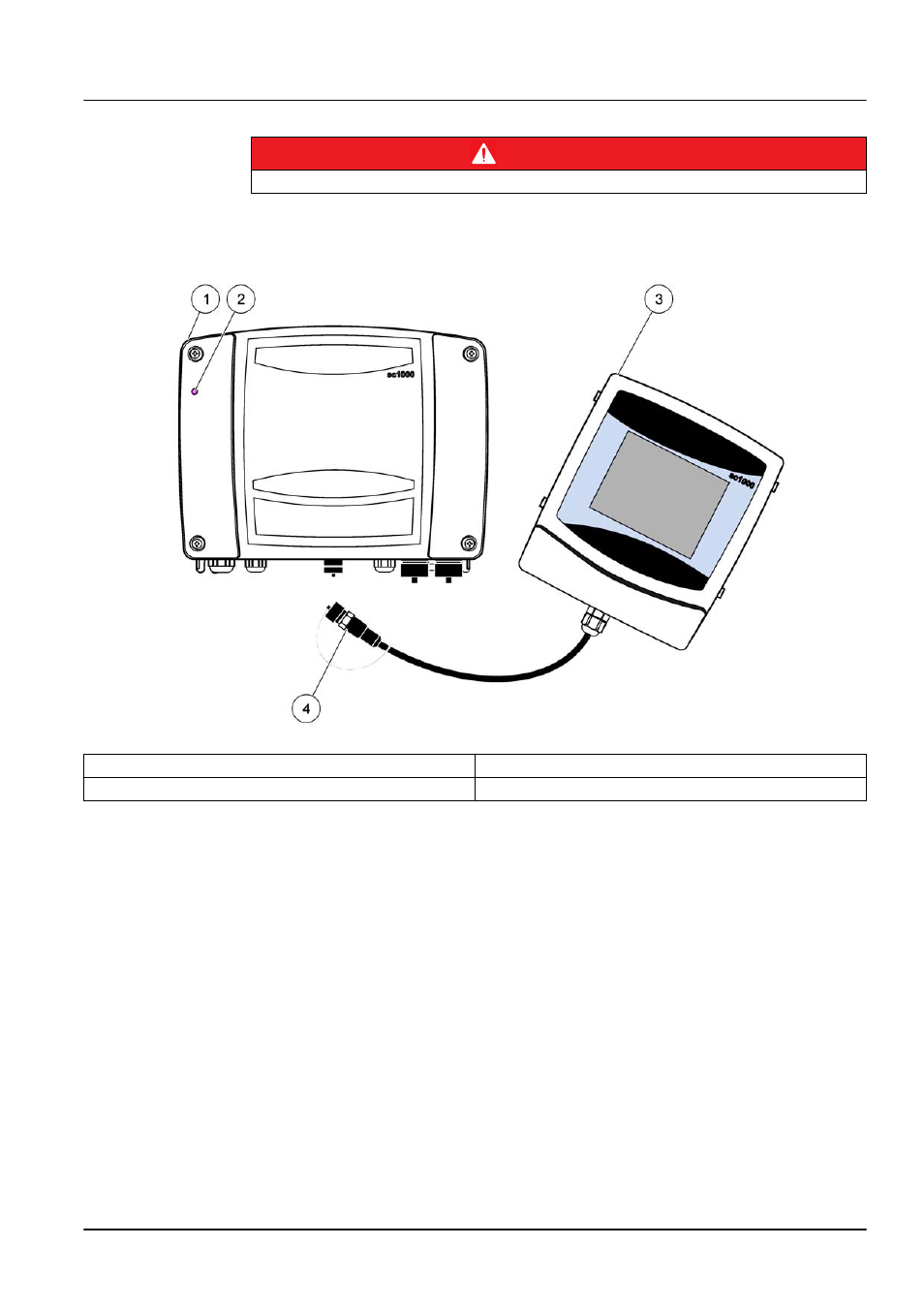

Figure 2 Probe module with display module

1

Probe module

3

Display module

2

LED indicator

4

Connector, display module to probe module
