Advanced Operations

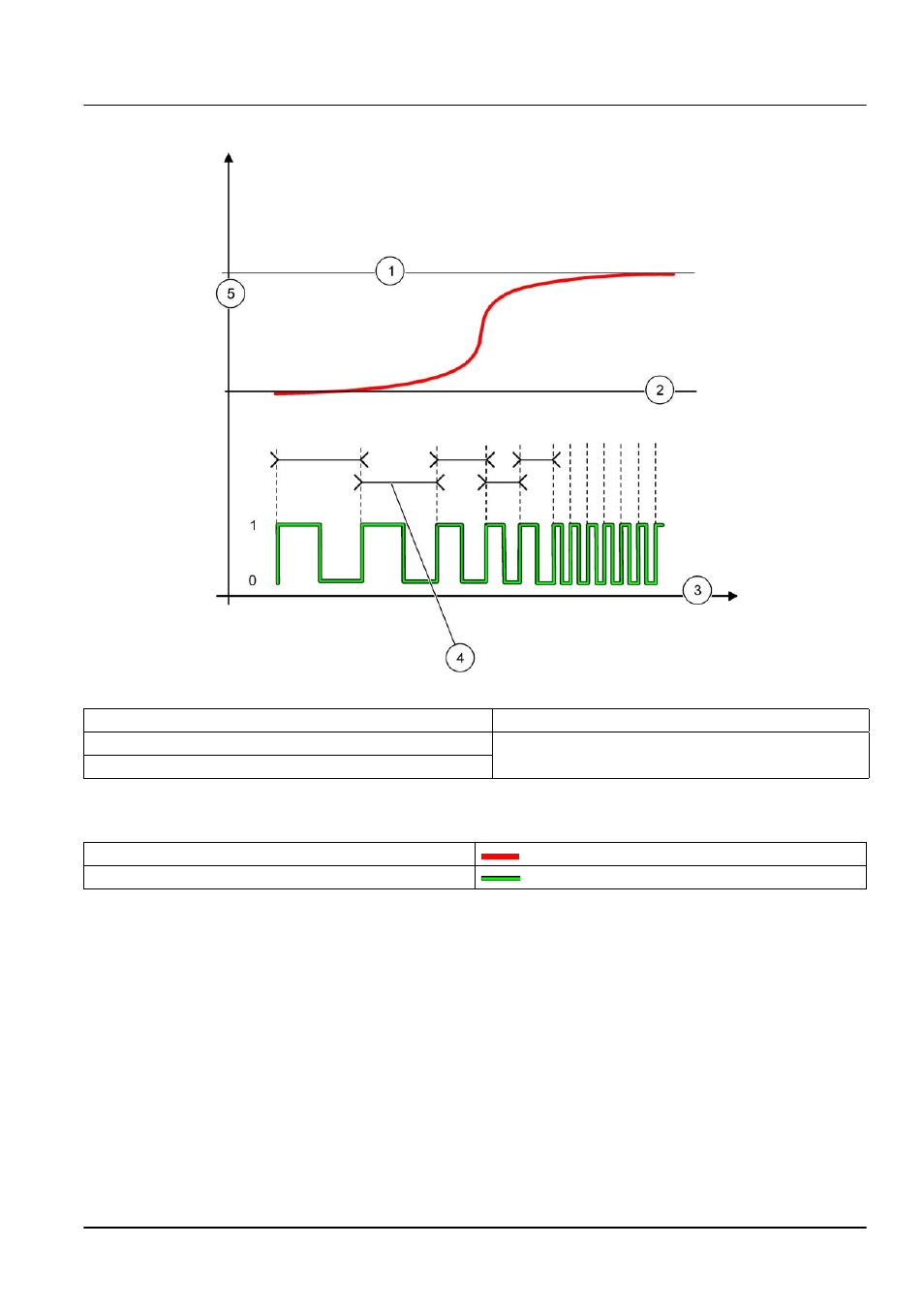

Figure 64 Relay behavior—FREQ. Control/Linear mode

1

High Limit

4

Cycle duration

2

Low Limit

5

Selected source (y-axis)

3

Time (x-axis)

Table 36 Color/line code for

Figure 64

Selected source
Relay contact
