Page 34
32
Installation
3.6.3 Output card connections
If the instrument is equipped with the output card option, the mA output card supplies up
to 4 analog (0–20 mA/4–20 mA) signals into an impedance of max. 500 Ohm.
Note: The sc1000 mA output card cannot be used to provide power to a 2-wire (loop-powered)
transmitter.
To make an output card connection:
1. Remove power from the instrument. Remove the probe module cover.
2. Connect the output card to the appropriate slot (
). Use a magnetic
screwdriver to secure the four screws to the card.
3. Install the card connector to the appropriate connection on the main circuit board
(
Figure 17
).
4. Feed the cable through the base of the module and properly prepare and insert each
wire into the terminal according to
and
Table 6
. Tug gently after each
insertion to make sure that the connection is secure.

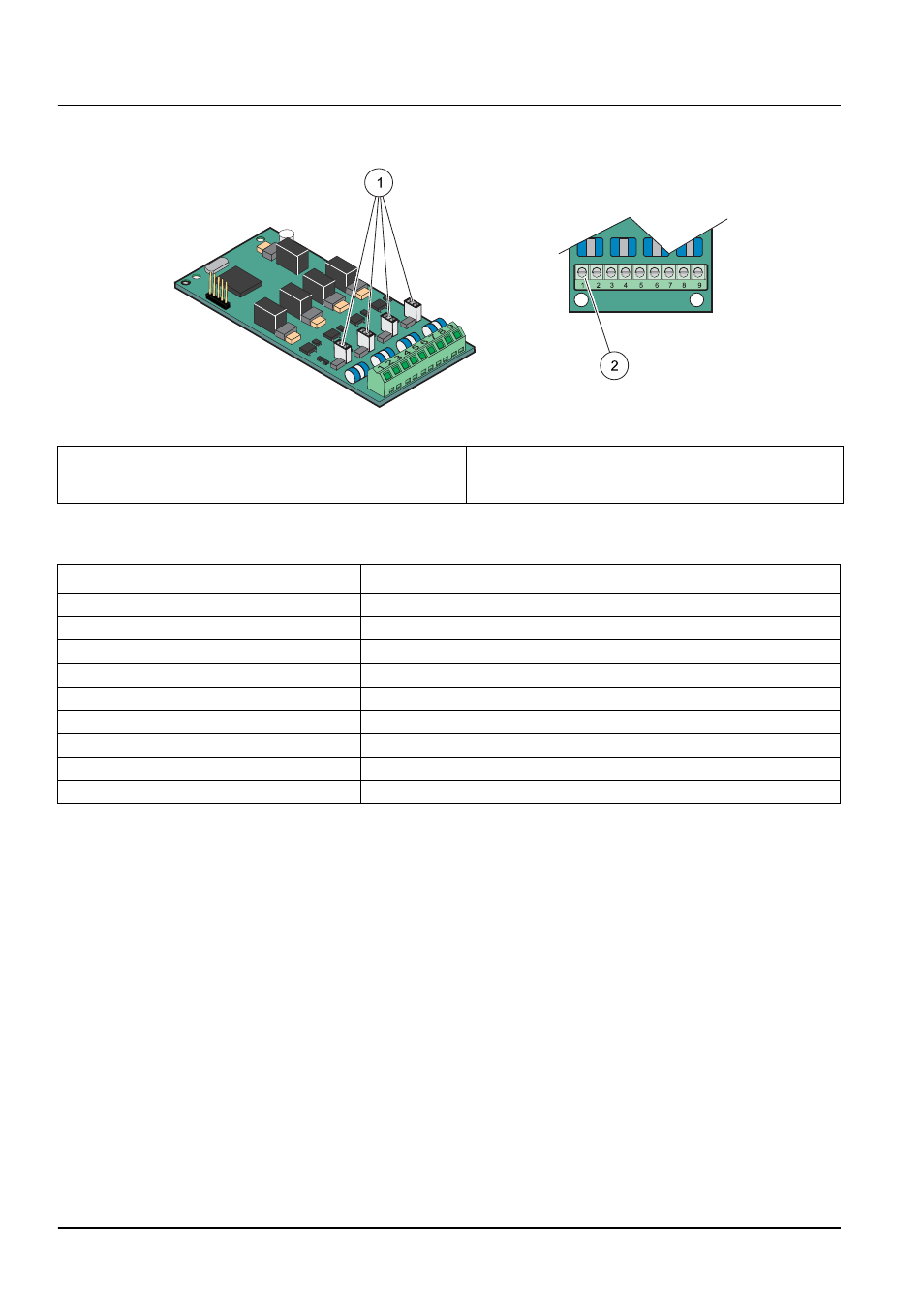

Figure 22 Input card (YAB018) cable connections and jumper setting
1
Jumper switches
Digital input=Jumper closed
Analog input=Jumper opened
2
Terminal block– Refer to
Table 5
for terminal
assignments.
Table 5 Input card (YAB018) terminal assignments
Terminal
Designation
1
Input 1 +
2
Input 1 –
3
Input 2 +
4
Input 2 –
5
Input 3 +
6
Input 3 –
7
Input 4 +
8
Input 4 –
9
PE (Protective earth)
