ERROR
Default value: 0
The value entered in this menu will be set in the first simulated tag (
Table 16 ).
STATUS
Default value: 0
The value entered in this menu will be set in the second simulated tag (
Table 17 ).
TOGGLE Changes the direction of the simulated ramp.
TEST/MAINT
Default value: DISABLED
DISABLED: Normal operation mode
ENABLED: Sets the TEST/MAINT bit (0x0040) of every status register of every configured slave
to indicate the “Service” mode.
VERSION Displays the current software version of the Profibus network adapter card.
LOCATION Displays the current location.
STATUS Displays the status of the PROFIBUS connection.
INPUT FROM PLC Displays the parameter and unit of variables that are described externally via PROFIBUS.
sc1000 SETUP
NETWORK MODULES
FIELDBUS

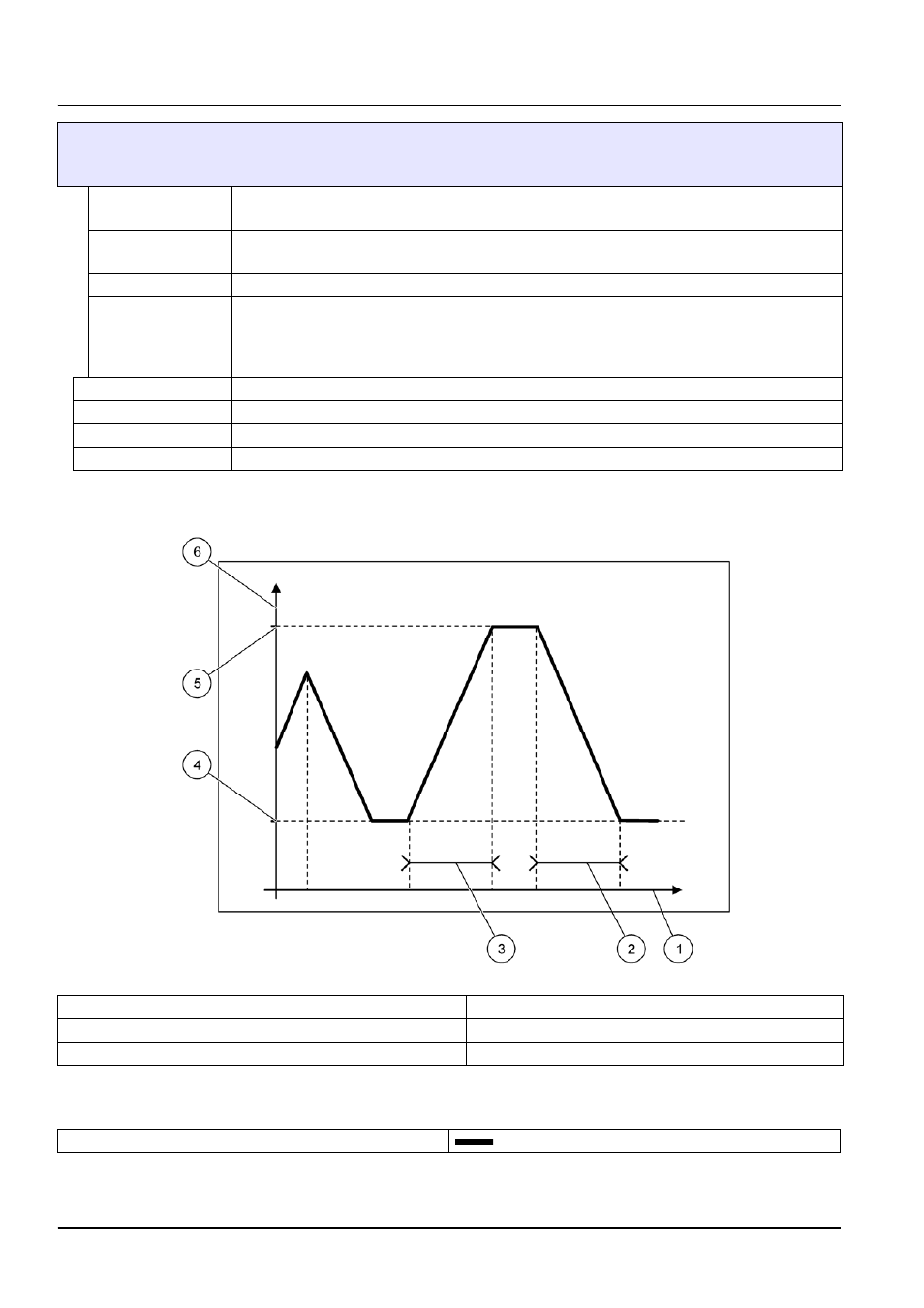

Figure 66 Profibus simulation mode
1 Time (x-axis) 4 Minimum
2 Period 5 Maximum
3 Period 6 Simulated value (y-axis)
Table 38 Color/line code for Figure 66
First floating point value
