2 2552 Magmeter

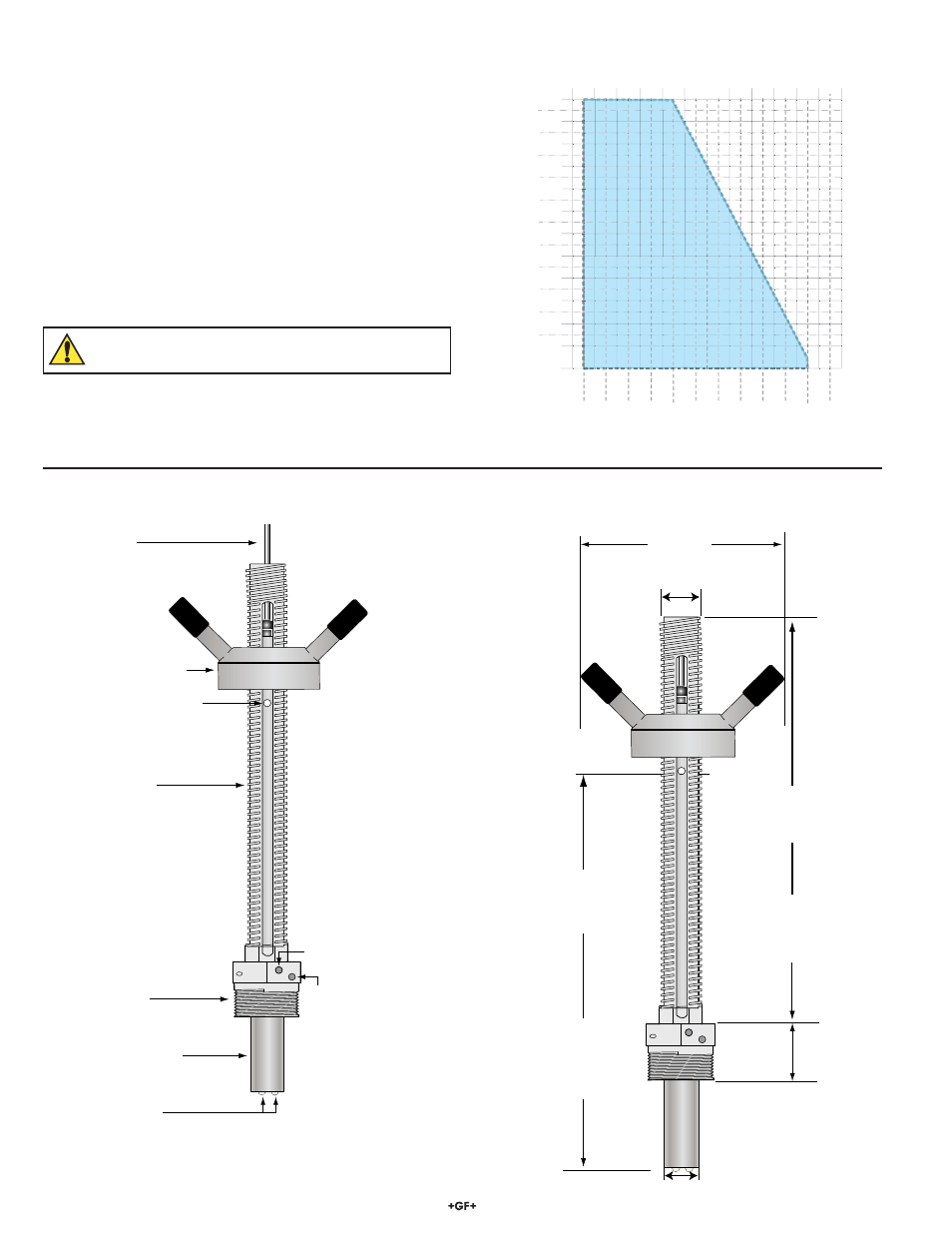

2.1 Temperature and Pressure Specifi cations
Max. Temperature/Pressure Rating
Storage Temperature:
-15 °C to 70 °C (5 °F to 158 °F) in non-icing conditions
Operating Temperature
•
Ambient: -15 °C to 70 °C (5 °F to 158 °F) in non-icing conditions
• Media: -15 °C to 85 °C (5 °F to 185 °F)
Maximum Operating Pressure:
20.7 bar @ 25 °C (300 psi @ 77 °F)
Hot-Tap Installation Requirements
•
Maximum Installation Pressure: 20.7 bar (300 psi)
• Maximum Installation Temp.: 40 °C (104 °F)
Do not use hot-tap installation where temperatures will
exceed 40 °C or if hazardous liquids are present.
Media Temperature
Operating Pressure
10 100
158 185 212
-10
41
20 -20 30 40 50 60 70 80 90
59 77 °F
°C
5
0
0
0.9
150
175
300
200
225
50
25
2.6
75
100
125
23
250
275
95 113 131
20.6
11.2
7.8
9.5
16.4
bar psi
Safe Media Pressure
and
Temperature Range
14.7
18.1
12.9
4.3
6.0
19.8
2552 Magmeter
Temperature-Pressure Operating Range
Locking
Set Screw
Threaded
Ground lug
Alignment Reference hole
Process Connector Nut
1¼ in. or 1½ in.
NPT or ISO threads
316 SS Sensor Body
Signal Cable
Sensor Adjustment Hub
ACME Threaded
outer housing
316 SS Electrodes
41 mm
1.6 in.
137 mm
5.4 in.
2552-2 models
290 mm
11.4 in.
2552-3 models
432 mm
17.0 in.
2552-2 models
276.3 mm
10.88 in.
2552-3 models
419 mm
16.5 in.
32 mm (1.25 in.)
Acme threads
2.3 2552 Magmeter Dimensions 2.2 2552 Magmeter Overview
