Electrical connection

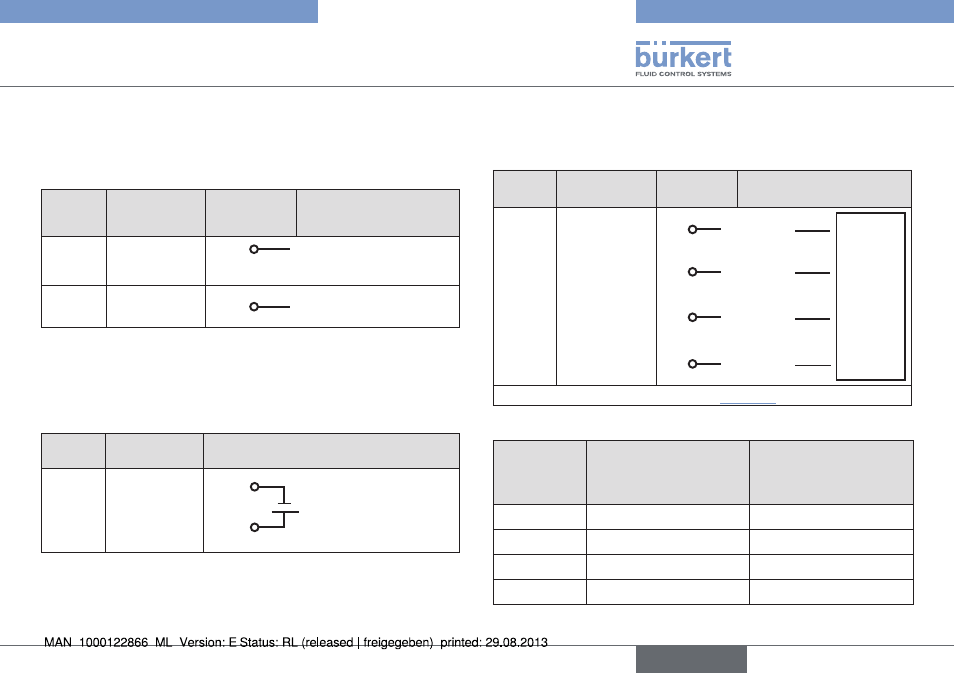

10.4.3. Terminal assignment for output
signals to the control centre (e.g. plc)
- (required for analogue output option
only)
terminal configuration on the
device side
external circuit / signal
level
31 + Analogue
feedback + 31 + + (0/4 – 20 mA)
not galvanically isolated
32 –
Analogue
feedback GND
32 –
GND (identical with the
GND supply voltage)
Tab. 16: Terminal assignment; output signals to the control centre
10.4.4. Terminal assignment for operating
voltage
terminal configuration external circuit / signal level
+24 V
Operating
voltage +
24 V DC ± 10 %
max. residual ripple 10%
+24 V
GND
GND
Operating
voltage GND
Tab. 17: Terminal assignment; operating voltage
10.4.5. Terminal assignment for connecting
the external position sensor (for remote
model only)
terminal configuration
on the
device side external circuit / signal
level
S +
Supply
sensor +
S + +
Remote
Sensor
Type
8798
8)
S –
Supply
sensor –
S – –
A
Serial interface,
A cable
A A-line
B
Serial interface,
B-cable
B B-line
8)
Assignment of the wire color see “Tab. 19”
Tab. 18: Terminal assignment; external position sensor
positioner
terminal
Wire color remote
sensor with cable
type 1 Wire color remote
sensor with cable
type 2
S + brown brown
S – white black
A green red
B yellow orange
Tab. 19: Assignment of the wire color (Remote Sensor)
