Attachment and assembly
8.2.1. installation
Warning!
risk of injury from improper installation!
• Installation may be carried out by authorised technicians only
and with the appropriate tools!
risk of injury from unintentional activation of the system and
an uncontrolled restart!
• Secure system from unintentional activation.
• Following assembly, ensure a controlled restart.
yoke mount procedure:
→
Using the bracket
②
the clamping pieces
③
, hexagon bolts
⑰
and circlips
⑯
attach the hoop to the actuator spindle.
3 17
2
16

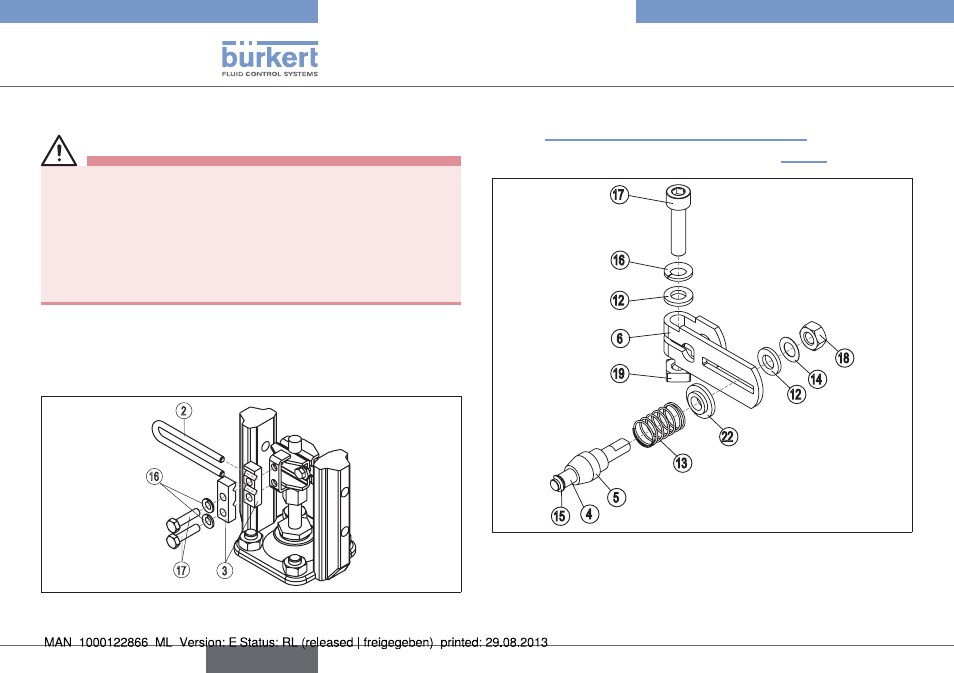

Fig. 6: Attaching the hoop
→
Select short or long lever according to the stroke of the actuator
(see “Tab. 8: Attachment kit for linear actuators”, part no. 6a/6b).
→
Assemble lever (if not pre-assembled) (see “Fig. 7”).
17
16
12
6
19
18
14
12
22
5
4
13
15
Fig. 7: Assembling the lever
