Structureandfunction
Type 2035 / 3236
5.6. intended application area
The diaphragm valve has been designed for use with soiled and
aggressive media which do not corrode the body and the seal
materials.
Observe the maximum pressure range according to the
type label.
• Ultra-pure, sterile, aggressive or abrasive media.
• Highly viscous media.
Observe instructions on operation in an explosion-risk (Ex)
area. See chapter "3.1. Use in Ex area"
.
5.6.1. application areas
e.g. plant construction
luxury food and food processing industry
bottling plant
chemical engineering
pharmaceutics
6. sTrucTure anD funcTiOn
6.1. structure of Type 2035
The diaphragm valve consists of a pneumatically operated piston
actuator, diaphragm and multi-port valve body.
Actuator cover
Actuator body
Body screws / nuts
Diaphragm
Valve body
Silencer
Pilot air port
Cover position
proximity switch
Cover screw
pressure piece

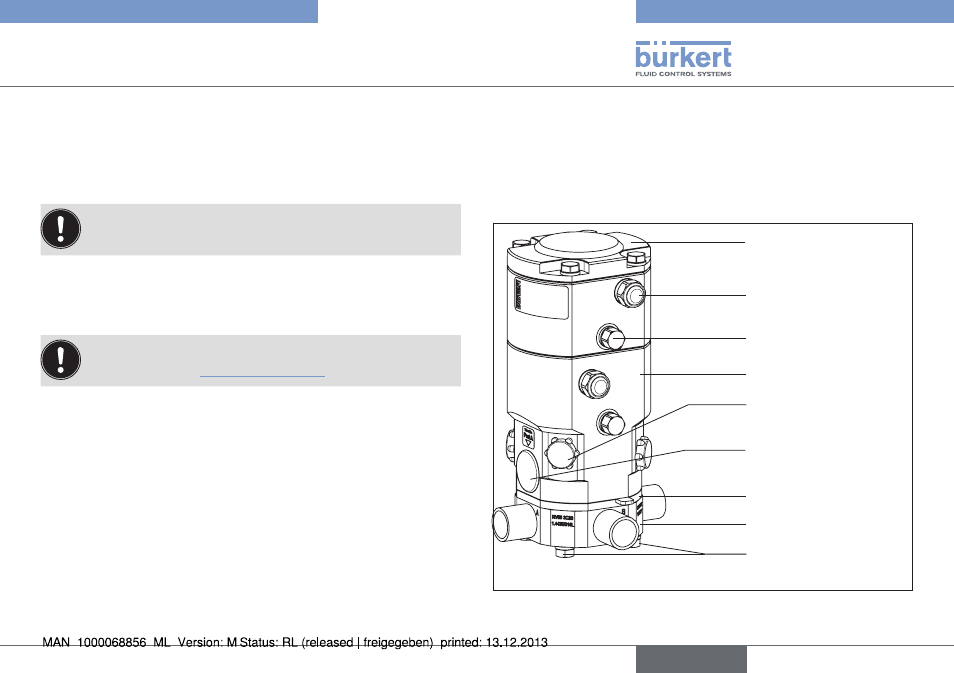

Fig. 19: Piston-controlled diaphragm valve, structure and
description
