16
Productdescription
Type 2035 / 3236

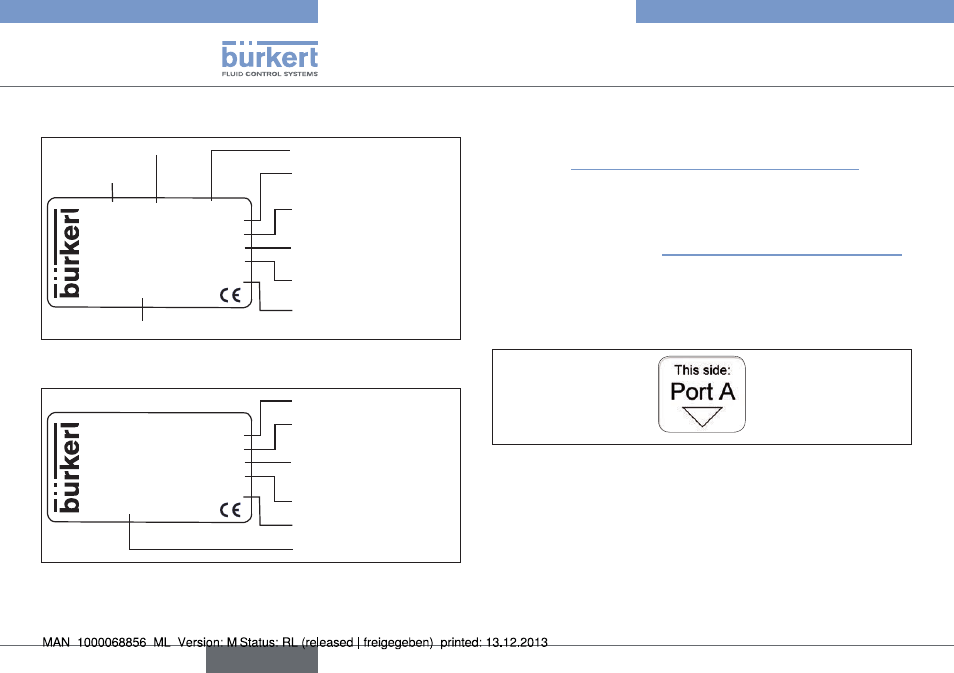

5.5.1. Type label
2035 RV50 4C 4S-DFP
EPDM-cus D11 -D11
Weld end 19.05x1.65
Pilot 4.2-10 bar
Pmed 10bar
12345678
Made in Germany
W14UN
Identification number
Size
Connection type -
connection dimensions
Type Diaphragm material -
actuator 1 - actuator 2
Date of manufacture
Max. medium pressure
Pilot pressure
Design
Fig. 16: Type label Type 2035
Robolux
3236 RV50 4C 4S-DFP
EPDM-cus D44 -D44
Weld end 19.05x1.65
Pmed 10bar
12345678
Made in Germany
W14UN
Identification number
Connection type -
connection dimensions
Diaphragm material -
actuator 1 - actuator 2
Date of manufacture
Max. medium pressure
Type - Size - Design
Fig. 17: Type label Type 3236
5.5.2. Marking and warning notices in ex
area
See chapter "3.1.3. Marking and warning notices in Ex area" .
5.5.3. port connection markings
All port connections are provided with letters corresponding to the
flow diagrams (see chapter "5.4. Valve symbols and flow diagrams").
5.5.4. actuator orientation marking
The actuator has a marking close to connection A as an aid to
ensure correct assembly.
Fig. 18: Actuator orientation marking
