5-2. WORKING WITH THE RCS

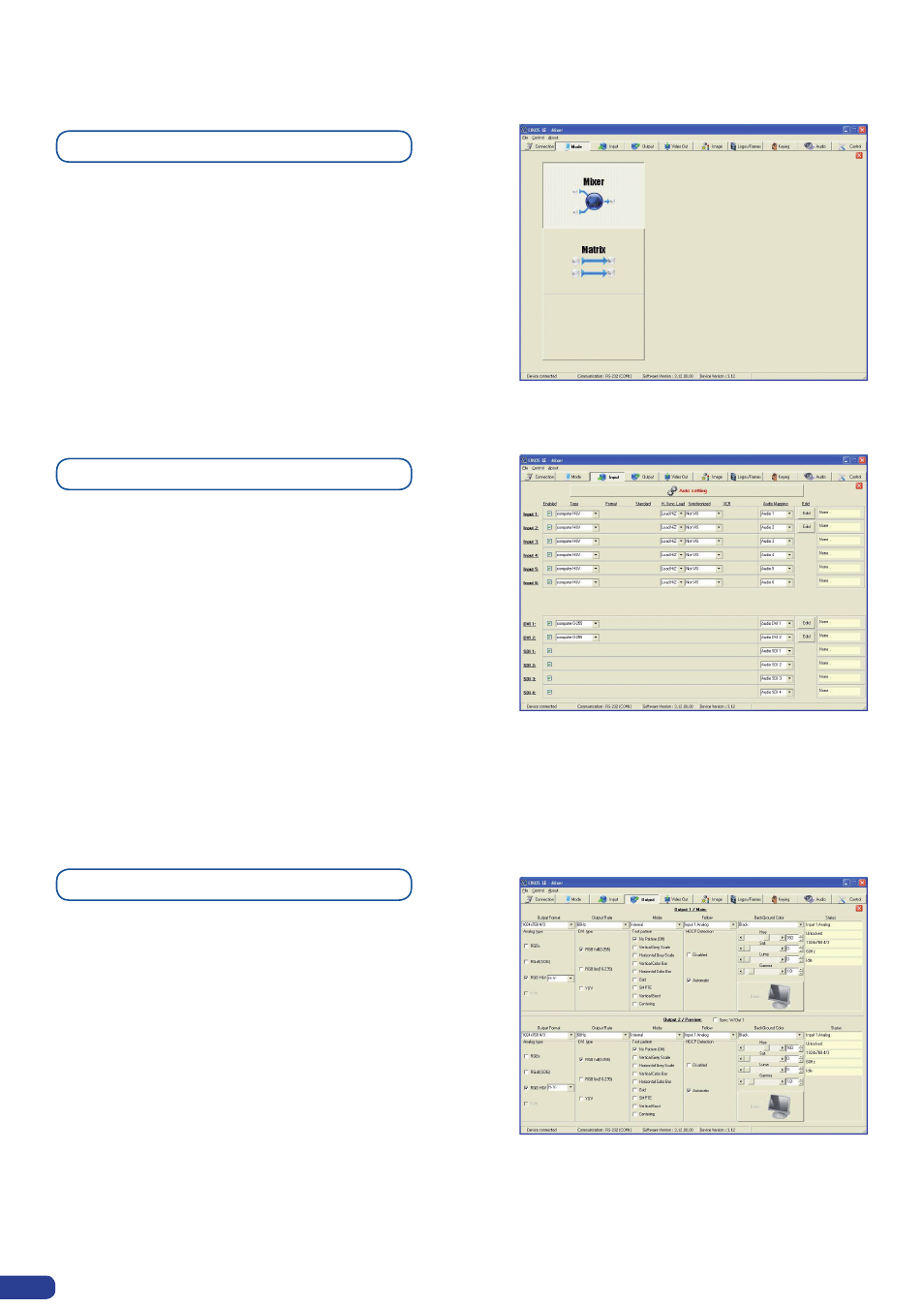

Operating mode
To choose the operating mode you want your Eikos LE
to work in, simply click the “Mode” tab, then select the
desired mode by clicking on one of the two mode buttons
(Mixer or Sync Matrix).
* NOTE *: for further details on different modes,
restrictions and settings, please refer to the “Working
with the Eikos LE” chapter, p.33, and the “Home Menu”
chapter p.60 .
Source input configuration
Once your Eikos LE is wired up to your PC, the first step
in properly configuring your machine is to individually
select and parameter your inputs.
1. Click on the “Inputs” tab of the RCS.
2. In the Plug column of the “Input” page, select the
plug type by clicking the appropriate field.
3. Activate the input in the Enabled column if it is not.
4. In the scroll-down menu of the Type column, select the signal type connected to that plug.
5. Repeat steps 2 to 4 for all sources connected to the rear panel of your
Eikos LE.
6. Click on the “Inputs” tab to return to the main screen.
Source output configuration
1. Click on the “Outputs” tab of the RCS.
2. Select the type of plug which is connected to
outputs #1 & #2 of your Eikos LE by clicking in the
appropriate field in Analog Type or DVI Type for
both Main and Preview outputs.
3. Select the appropriate output format and output
rate.
4. Click on the “Outputs” tab to return to the main
screen.
The Output menu also allows you to generate test patterns. The test patterns available through the
Output menu let you quickly and reliably setup your projectors.
* NOTE * : Be sure to turn the test pattern off to display your sources again.
