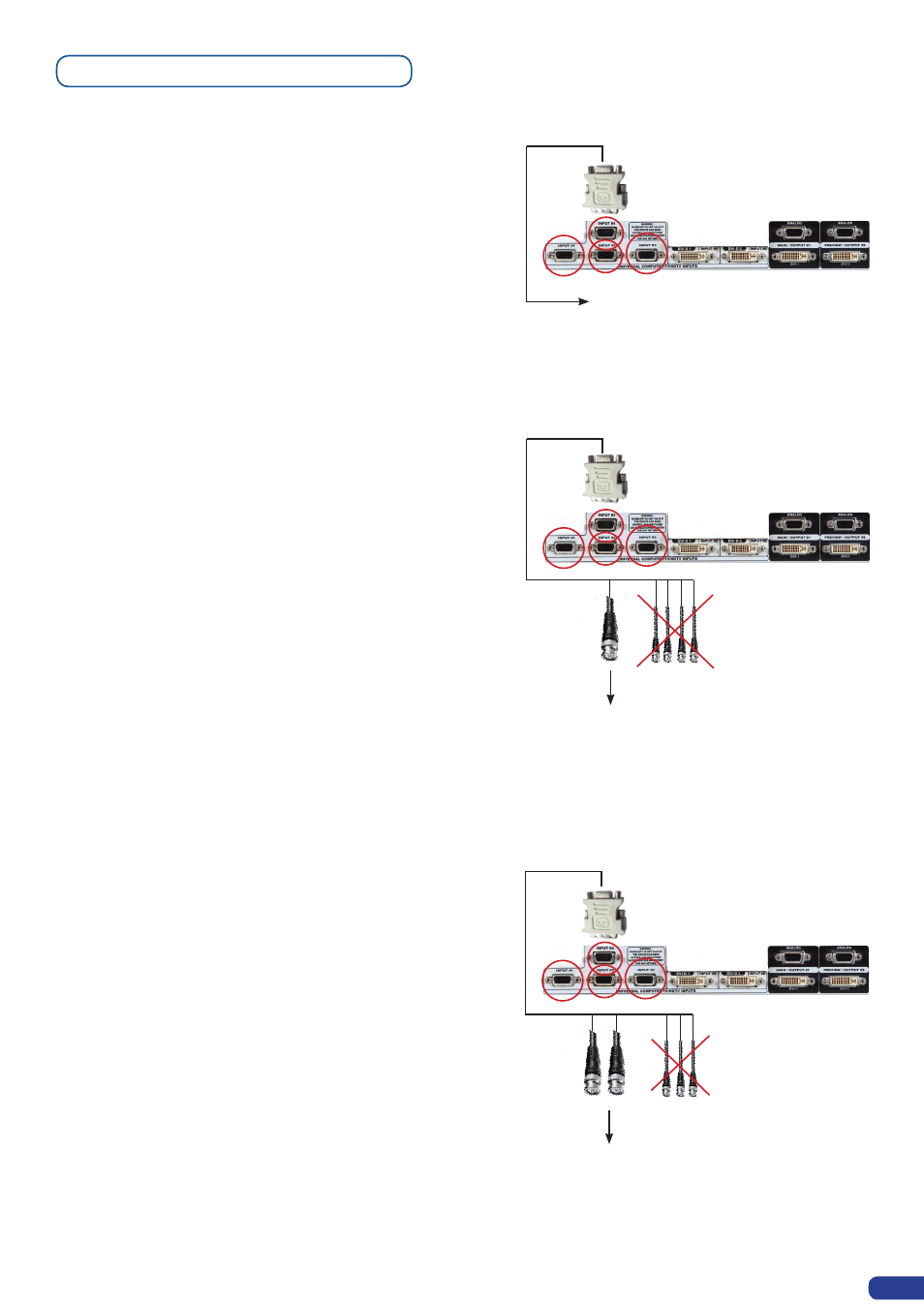

Inputs #1 to #6
UNIVERSAL COMPUTER & VIDEO INPUTS:
Universal Inputs accept computer sources (RGBHV,
RGBS, and RGsB (SOG) signals), standard TV/VIDEO
sources (Composite video, S.VIDEO), Component
video (YUV, RGBS & RGsB (SOG)), and HDTV
sources (480p, 720p & 1080i).
HD15: 1x Universal Analog input on female HD15
connector.
G
Composite Source
Analog Computer Sources
COMPOSITE VIDEO SOURCES:
The Composite Video signal, usually called
COMPOSITE or VIDEO, is available on most video
equipment (VCR, DVD, CAMCORDER…), but is also
the lowest in picture quality. The video standard of this
signal can be NTSC, PAL or SECAM. The signal is
transmitted on a single coaxial cable, and is connected
to the video equipment with an HD15 connector.
For inputs #1 to #4: connect a 1x BNC from your
composite source, to the HD15 input of the device.
25
G R
S.Video Source
S.VIDEO SOURCES:
The S.VIDEO signal, also called Y/C, HI-8™, or
S.VHS™, is available on DVD players and high quality
VCRs (S.VHS). The S.VIDEO signal in which the
Luminance (Y) and Chrominance (C) information are
separately transmitted, gives a higher quality picture
than the Composite video signal. The S.VIDEO
connector is usually a 4-pin Mini-DIN connector also
called Oshiden™ connector.
For inputs #1 to #4: connect a 2x BNC from your
S.VIDEO, Y (G/Y) & C (R/R-Y), to the HD15 input of
the device.
