Analog Way Eikos LE User Manual

Page 28

COMPONENT VIDEO SOURCES:

The Component Video signal, also called YUV

(Y, Pr, Pb) or BETACAM™, is widely used in

broadcasting and is available on high-quality DVD

players. The COMPONENT signal is transmitted with

3 coaxial cables, and also has a better quality

picture than COMPOSITE and S.VIDEO signals. The

COMPONENT connectors are usually RCA (x3), or

BNC (x3).

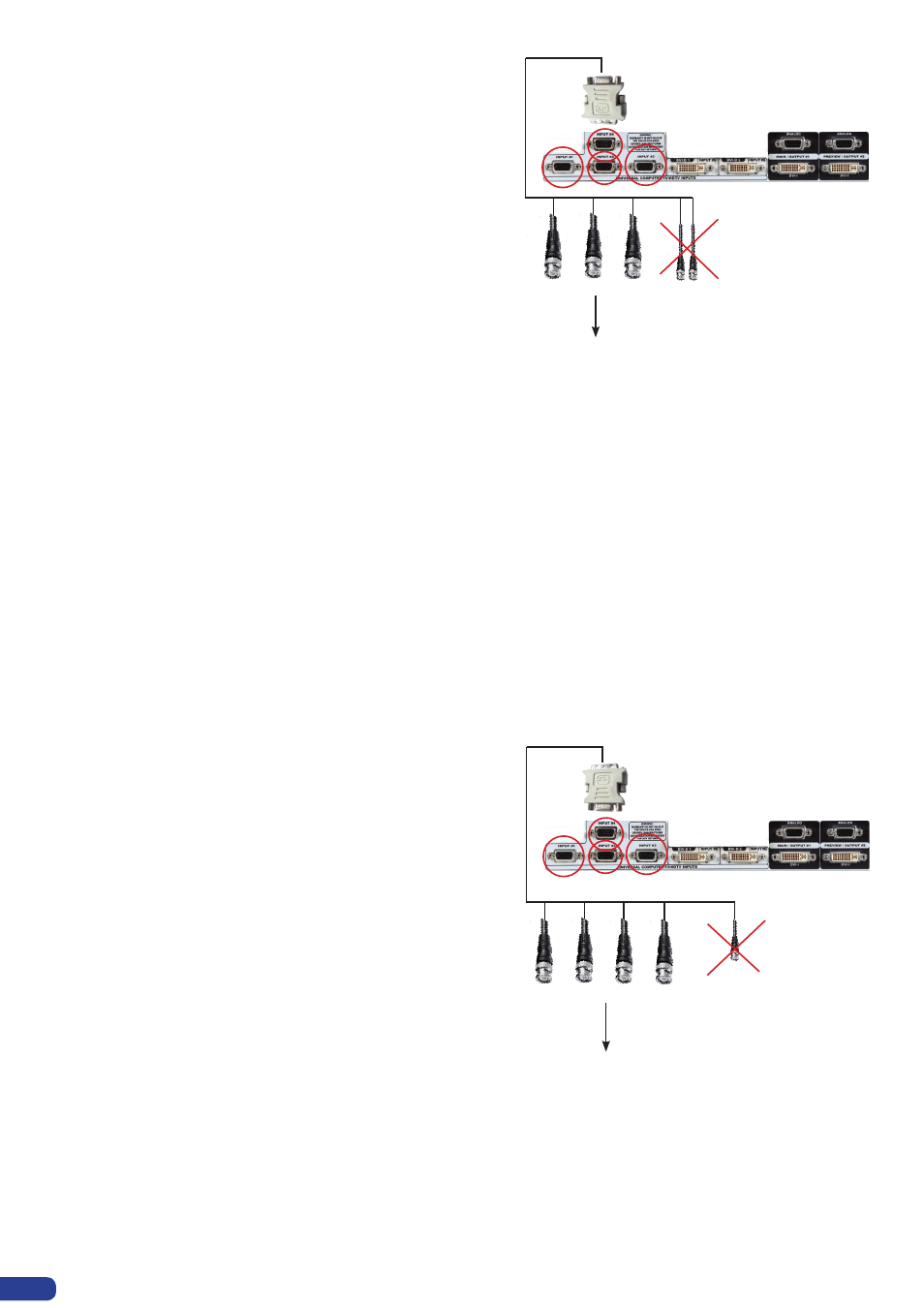

For inputs #1 to #4: connect a HD15 to 3x BNC cable

between the HD15 connector of the device and your

Component source.

Component (YUV) Source

COMPUTER SOURCES:

The device accepts the following computer signals:

RGBHV, RGB/S and RGsB on inputs #1 to #6.

RGBS VIDEO SOURCES:

This signal is widely used in broadcasting and is

available on European DVD player. The RGB/S

signal is transmitted with 4 coaxial cables, and also

has a better picture quality than COMPOSITE and

S.VIDEO signals. The RGB/S connectors are usually

BNC connectors for Broadcasting equipment, and

SCART connector for DVD players.

For inputs #1 to #4: connect a HD15 to 4x BNC cable

between the HD15 connector of the device and your

RGB/S source.

RGBS Source
