4-2. THE EIKOS LE MENU

Home menu

Pressing the MENU button in the menu section of the

Eikos LE, will display and give you access to

the following items on the menu VFD screen:

MODE:

select to choose which mode the

Eikos LE

will work (in Mixer or Matrix Mode,

see

Eikos LE

Modes p.5).

INPUT:

select to configure the 12 individual input types and resolutions.

MAIN OUT:

in Mixer mode, select to set the output types and resolutions of the Main output.

OUTPUT 1:

in Matrix mode, select to set the output types and resolutions of Output 1.

PREVIEW OUT:

in Mixer mode, select to set the output types and resolutions of the Preview output.

OUTPUT 2:

in Matrix mode, select to set the output types and resolutions of Output 2.

VIDEO OUT:

select to configure Video output card settings.

PRESET:

select to store and use presets.

IMAGE:

select to change source image settings of an input.

KEYING/TITLING:

select to access keying and titling controls and parameters when video layer is selected.

LAYER:

select to adjust layer size, position, border, transparency or transitions.

LOGO/FRAME:

select to store (record), use and manage logos and frames into the

Eikos LE.

AUDIO

select to access all audio input and output parameters.

CONTROL:

select to access device software information, LAN settings, reset factory settings, amongst

other user oriented functions.

VIRTUAL T-Bar:

select to access the Virtual T-Bar.

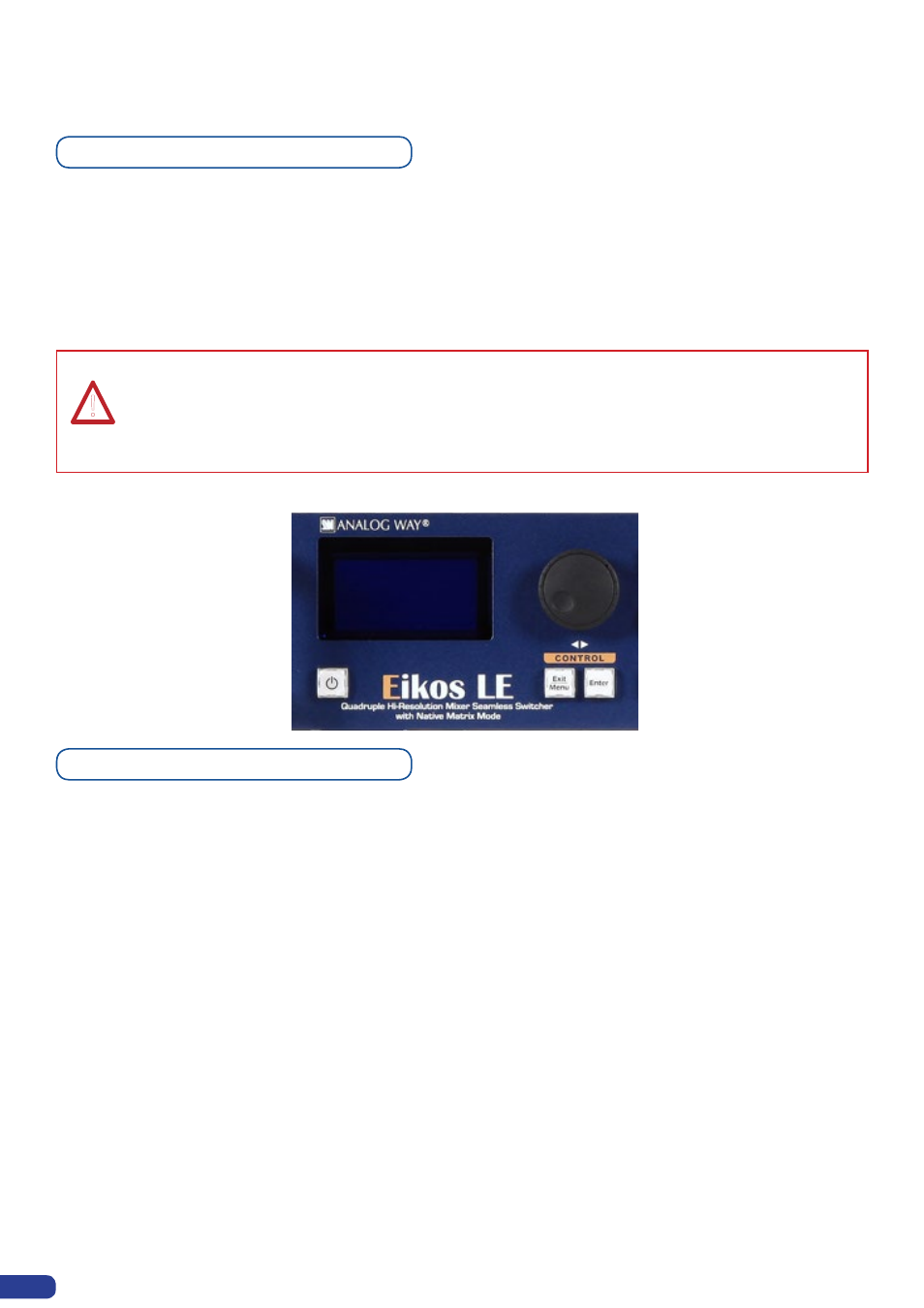

Menu navigation

To access the

Eikos LE menu, press the EXIT/MENU button in the control section (4). To highlight

items in the menu which will appear on the VFD screen (2), turn the scroll knob (3) left or right to the

desired menu item. When you have reached the desired menu item, press the ENTER button in the

control section (4) to access that menu function. Pressing the ENTER button when a selection has

been made sets the value to that selection in the

Eikos LE memory. When all settings have been

made, press the EXIT/MENU button to exit sub-menus and return to the main menu.

Simply selecting a menu item will not set it to that value. Be sure to press the ENTER

button when parametering the menu items or to push the scroll knob.
