Overview

The

Eikos LE rear panel is equipped with 11 universal digital and analog inputs. Inputs #1 through

#4 (3) are universal analog inputs. Inputs #5 & #6 share a DVI-D signal and a universal analog

signal (plug the included

Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals

simultaneously).

The Main and Preview (6) outputs will allow for the

Eikos LE high resolution digital and analog

signals to be viewed on screen and/or on a preview monitor (see also Output Specifications in this

chapter).

The extra Video Out card installed on the

Eikos LE, can be used for recording, broadcasting or

previewing purposes in a wide range of formats for maximum compatibility with industry viewing or

recording equipment.

Finally, the audio in and output card will let users mix audio with any source, accurately balance or

tweak sound sources and outputs.

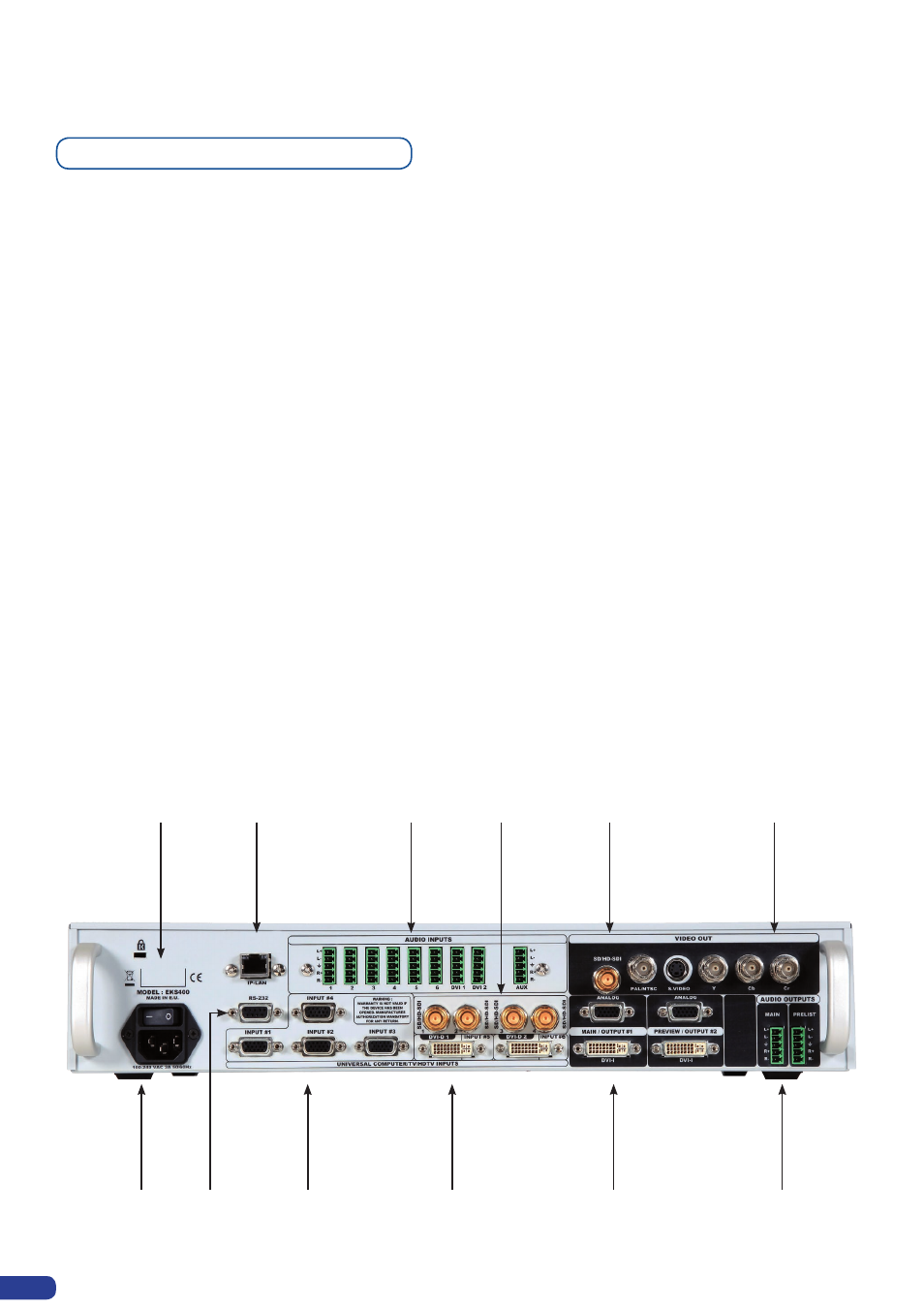

1 : AC outlet and on/off switch

2 : IP-LAN connector

3 : Universal Computer/TV/HDTV inputs

4 : DVI-D inputs

5 : HD-SDI inputs

6 : Main and Preview outputs

7 : SD-HD/SDI output

8 : SD/HDTV output

9 : Audio inputs

10 : Audio outputs

11 : RS-232 connector

12: Serial #

3-2. THE EIKOS LE REAR PANEL
