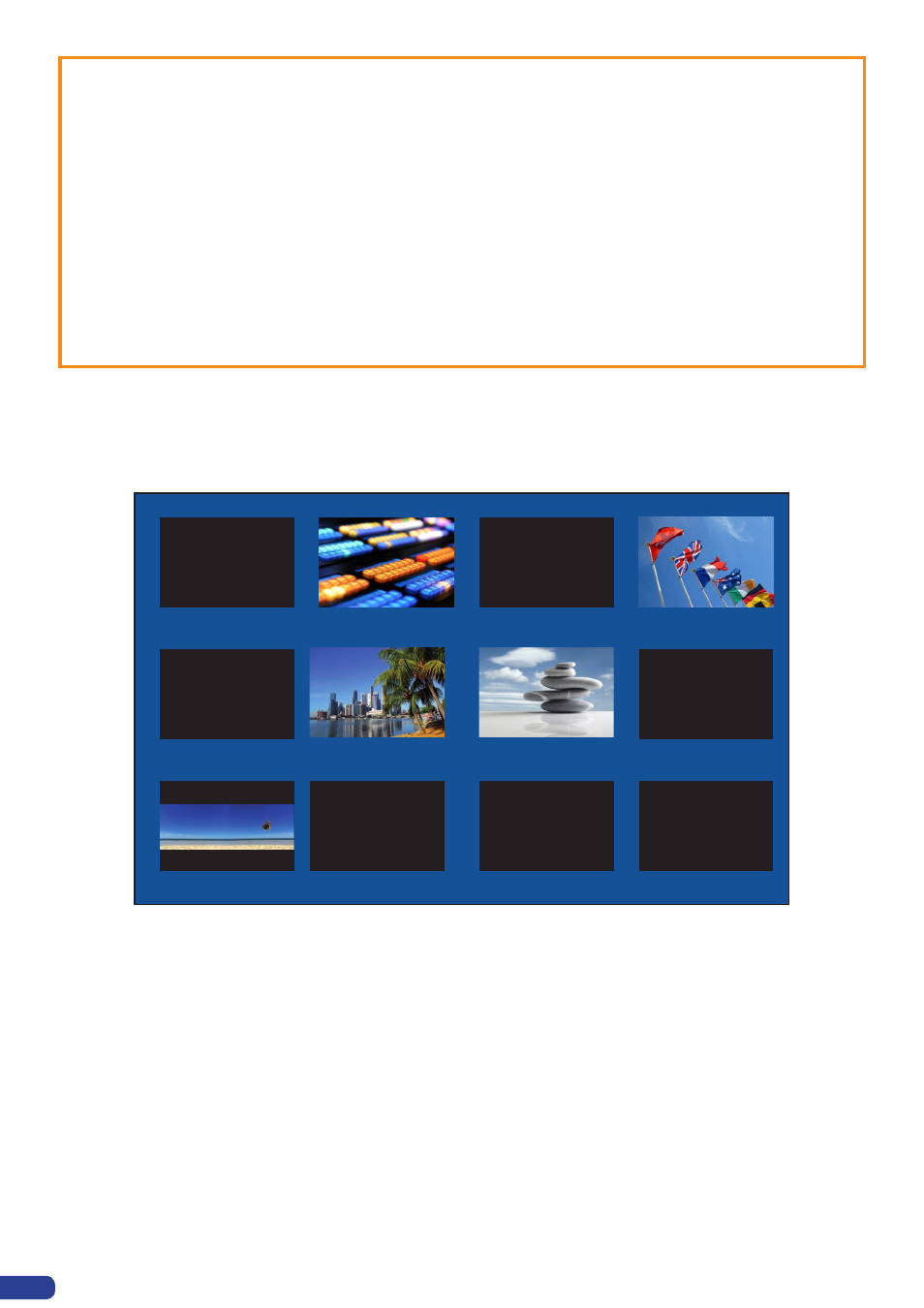

INPUT1 NO SIGNAL
INPUT5 NO SIGNAL DVI2 NO SIGNAL
SDI1 1920x1080 60.00 Hz SDI2 NO SIGNAL SDI3 NO SIGNAL SDI4 NO SIGNAL
INPUT3 NO SIGNAL INPUT2 PAL 50.00 Hz
INPUT6 1920x1080 60 Hz DVI1 1920x1080 60.00 Hz
INPUT4 1920x1080 60 Hz
To have better visualize all aspects of your inputs, two modes are available, when the Mosaic Preview
button is activated (Red light solid button):
- One live source mode: Select your Layer and the source you want to put on it. The input selected will
be displayed at full frame rate on your Mosaic Preview
Press a Layer button (Bkgnd Live, PIP1 or 2) --> Press the Live source chosen
- Refresh still source mode: To have a cyclic refreshment of all your inputs, select a layer and put it to black.
All sources will be automatically refreshed.
Press a Layer button (Bkgnd Live, PIP1 or 2) --> Press the Black Button
38
