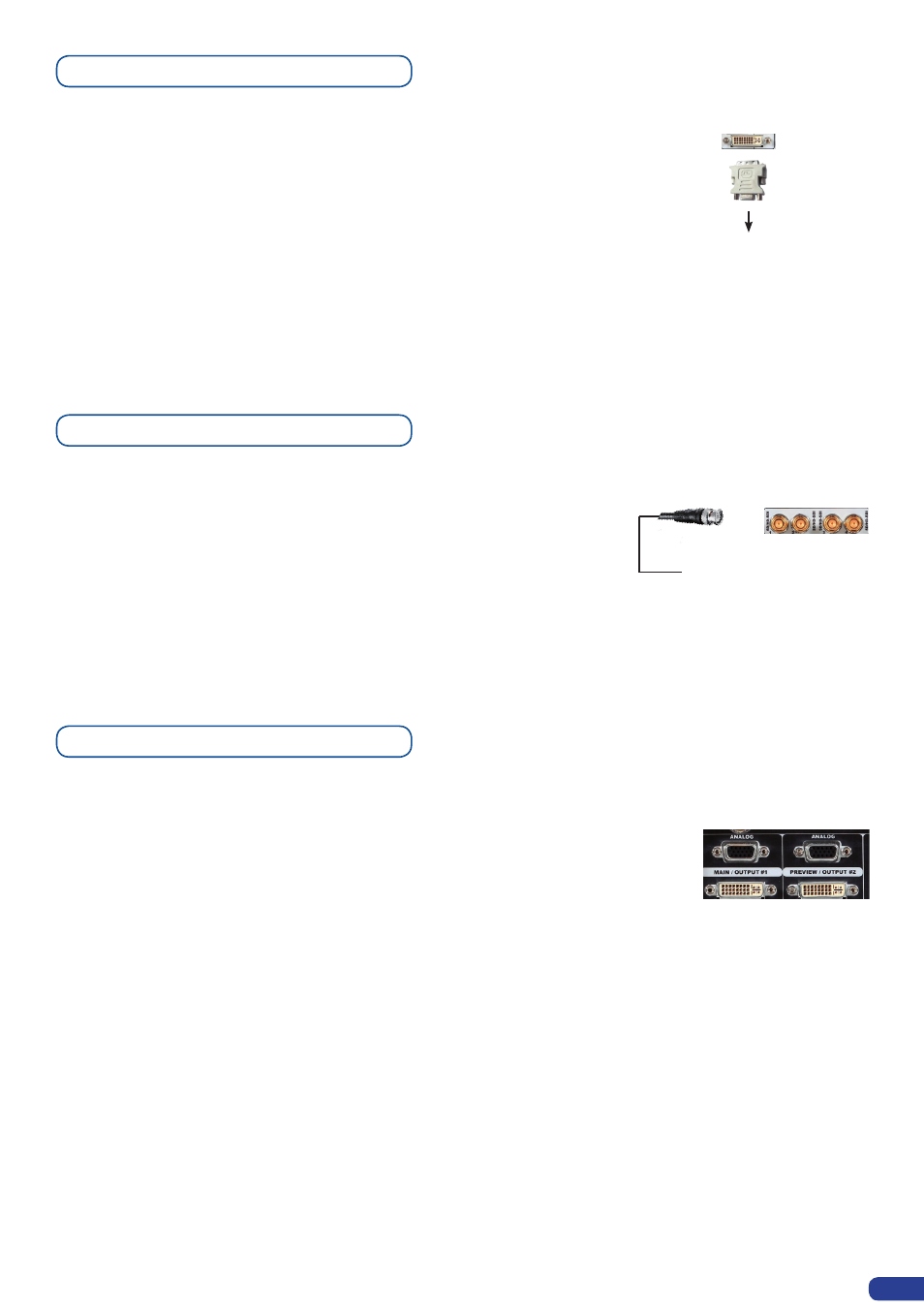

DVI Inputs #1 - #2
Preview Outputs
PREVIEW OUTPUT:
ANALOG: 1x analog output for the main display device
on female HD15 connector.
DIGITAL/ANALOG: 1x main output on female DVI-I connector
(simultaneous analog and digital).
DVI & ANALOG SOURCES:
DVI Inputs #1-#2 on the Eikos LE accept up to 2 live sources in Digital format.
DVI-I : 1x digital (DVI) and 1 x analog input on female DVI-I universal
connector.
For analog sources, please use the breakout cable supplied.
SD/HD-SDI SOURCES:
SD/HD-SDI Inputs #1- #2 on the Eikos LE accept up to 2 live sources
in Digital formats.
SD/HD-SDI: 1x digital input on female BNC connector.
SD/HD-SDI Inputs #1 - #2
HD/SDI Source
BNC
Analog Computer Sources
DVI-D
