Description of the data path
OSCAR Technical Manual V2.4.0
87
2 x full binning
If horizontal and vertical binning are combined, every 4 pixels are consoli-
dated into a single pixel. At first two horizontal pixels are put together and
then combined vertically.
Light sensitivity This increases light sensitivity by a total of a factor of 4 and at the same time
signal-to-noise separation is improved by about 6 dB.
Resolution This reduces horizontal and vertical resolution. The new resolution is approx-
imately 1/4 of the original resolution.
Format_7 Mode_7 By default use Format_7 Mode_7 for 2 x full binning.

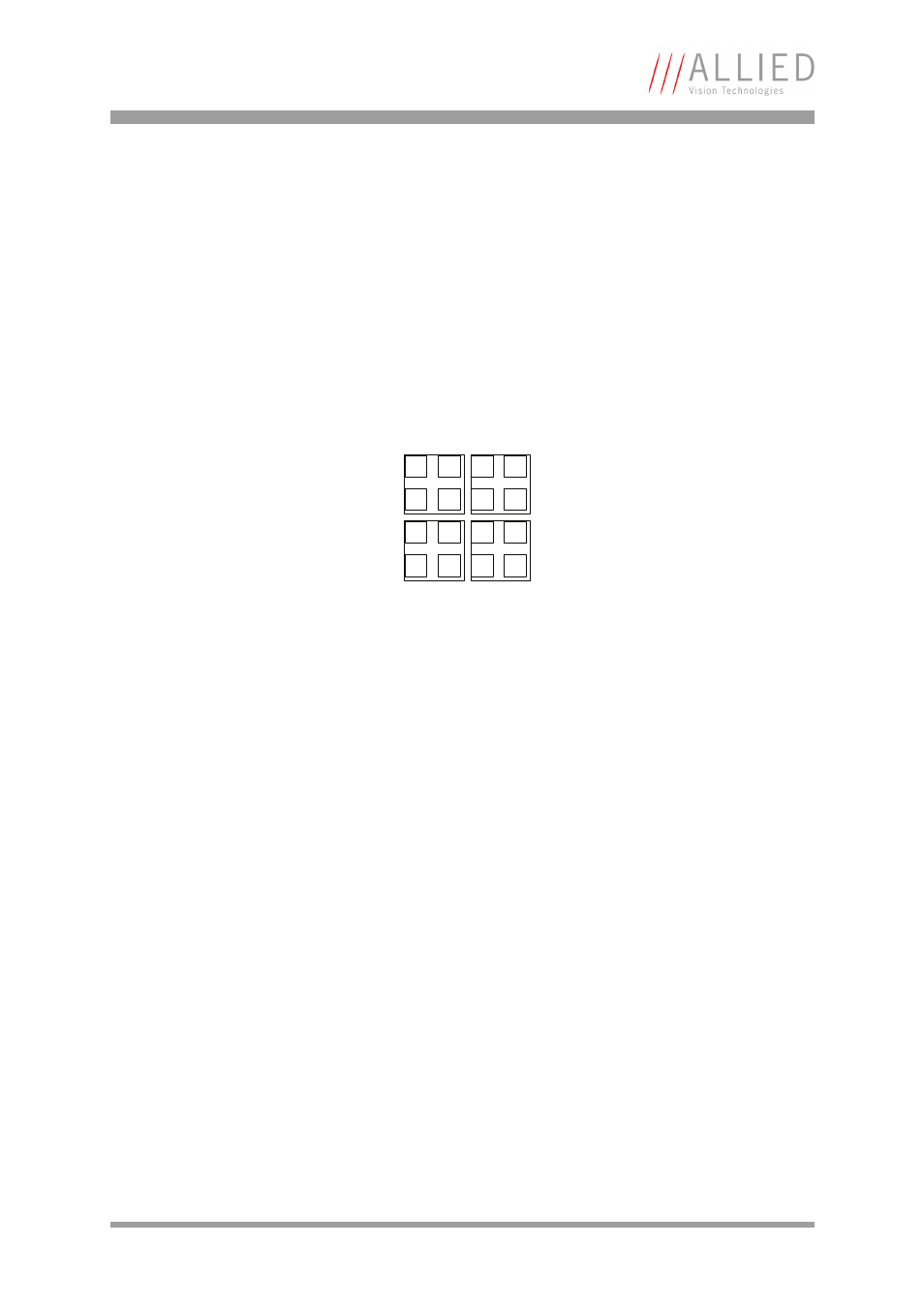

Figure 41: 2 x full binning
2 x full binning
