Description of the data path
OSCAR Technical Manual V2.4.0
54

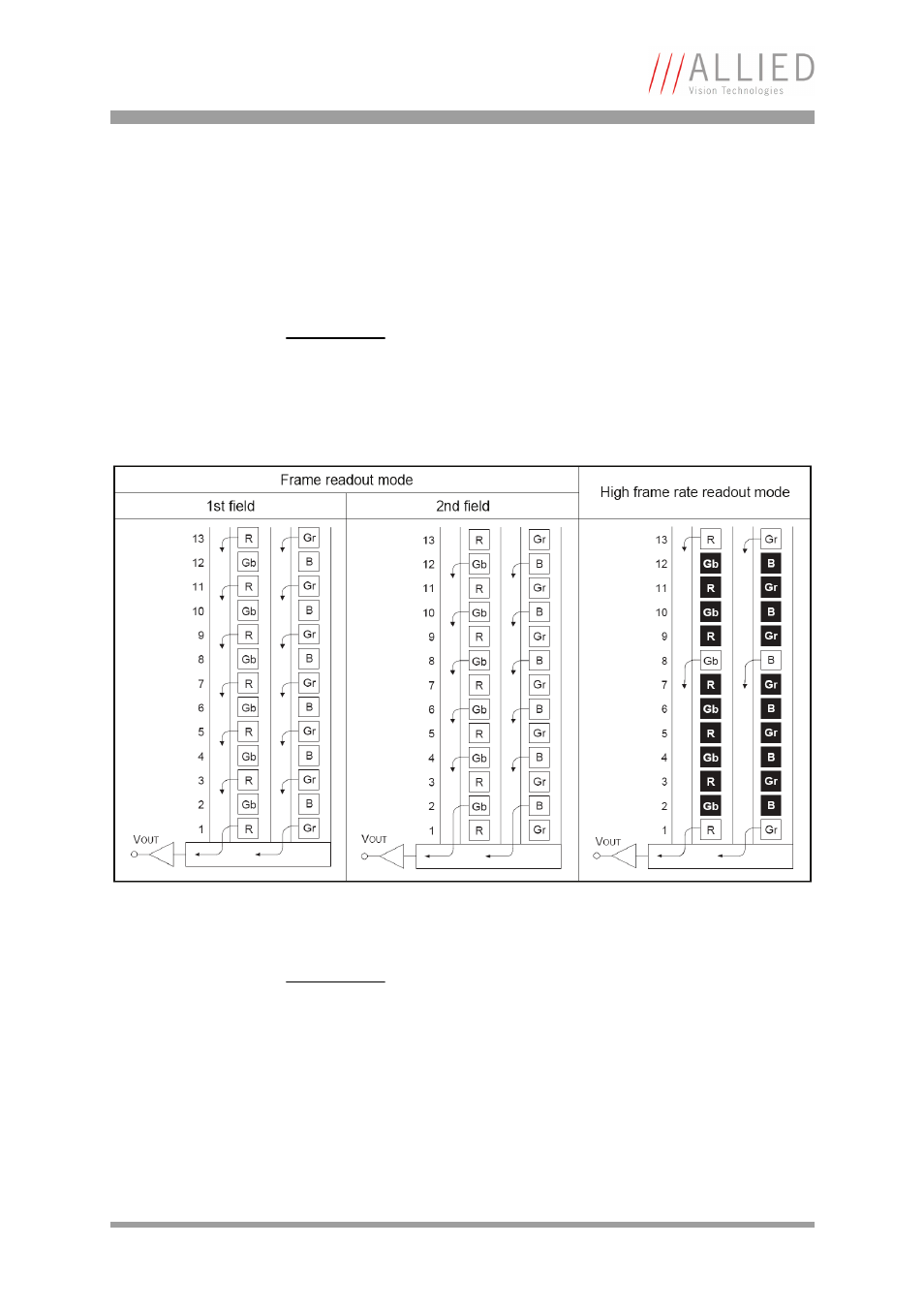

Oscar F-320C: ICX-262AQ readout scheme
The screenshot below, taken from the Oscar F-320C sensor's data sheet,
shows the ICX-262AQ readout scheme.
Frame readout mode reads out red and green color pixels in the first field,
followed by the green and blue pixels in the second field.
1. Frame readout mode
In this mode, all pixel signals are divided into two fields and output.
All pixel signals are read out independently, making this mode suitable
for high resolution image capturing.
Note
L
The high frame readout mode reads out 2 from 12 lines and
thus achieves a remarkably high frame rate of nearly 40 fps.
Figure 21: Oscar F-320C: Sony ICX-262AQ readout scheme
Note
L
Blacked out portions in the diagram indicate pixels which are
not read out.
