Camera dimensions

OSCAR Technical Manual V2.4.0

31

Oscar W270

This version has the sensor tilted by 270 degrees clockwise, so that it views
downwards.

Please note that an additional specification is required for the rotation of the
sensor.

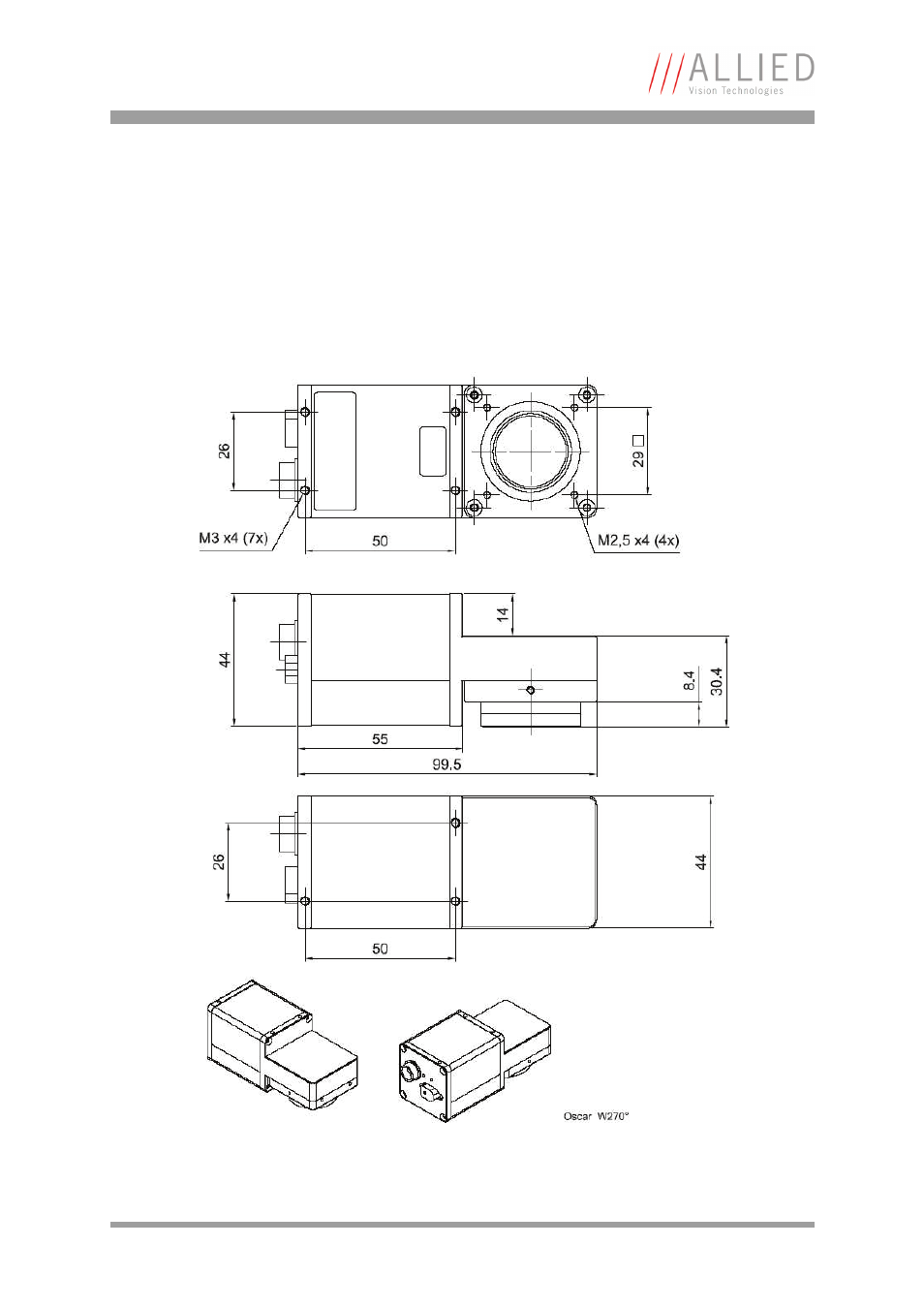

Figure 7: Oscar W270
