Description of the data path
OSCAR Technical Manual V2.4.0
56
Oscar F-810C: ICX-456AQ readout scheme
Oscar F-810C uses the ICX-456AQ sensor with three field readout mode. Every
field skips two lines during read out, so all primary colors of the BAYER
mosaic are read out in every field.
Progressive scan mode reads out 2 out of 6 lines.

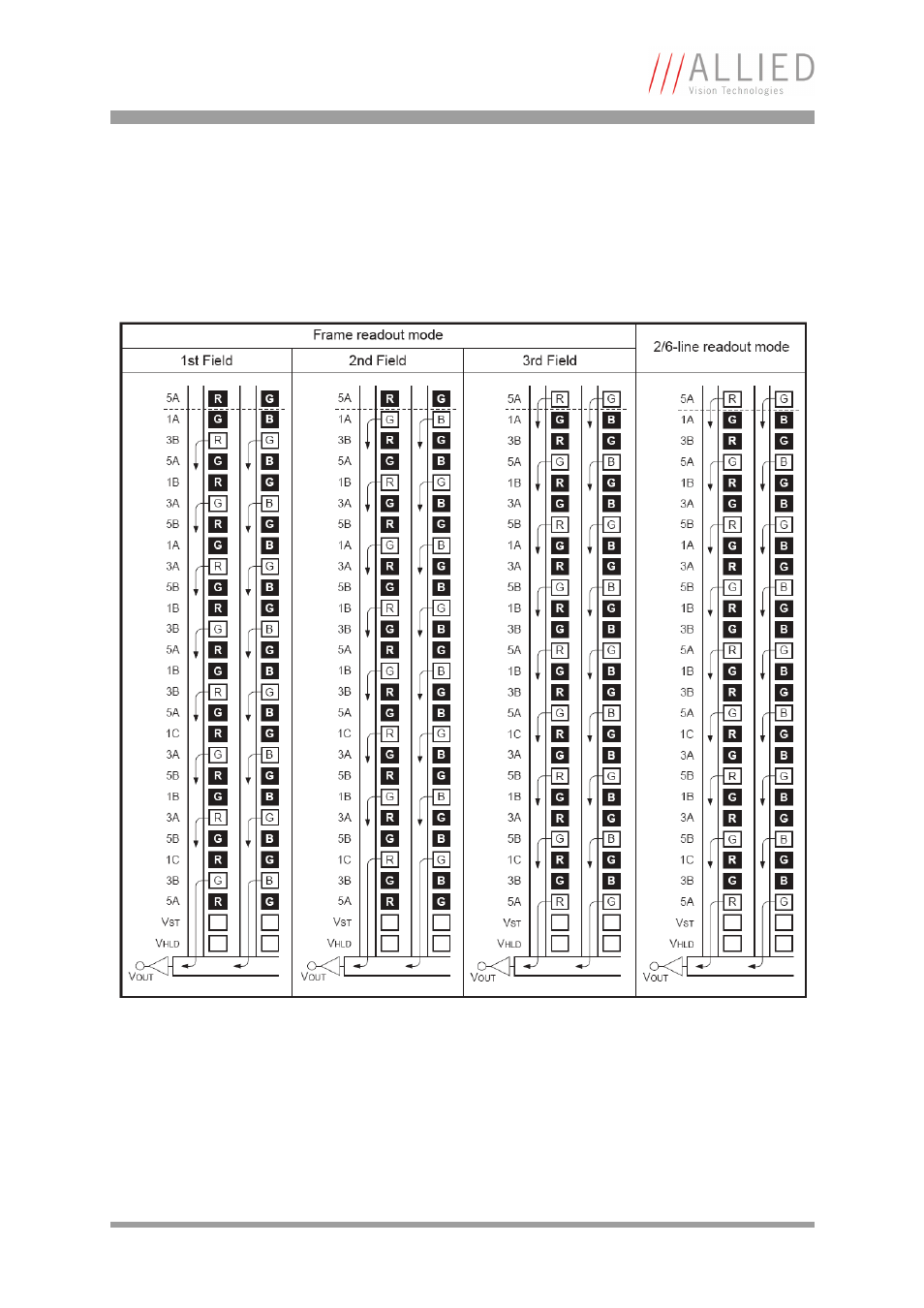

Figure 23: Oscar F-810C: Sony ICX-456AQ readout scheme
