Description of the data path
OSCAR Technical Manual V2.4.0
83
Horizontal mirror function
All Oscar cameras are equipped with an electronic mirror function, which
mirrors pixels from the left side of the image to the right side and vice versa.
The mirror is centered to the current FOV center and can be combined with
all image manipulation functions, like binning, shading and DSNU.
This function is especially useful when the camera is looking at objects with
the help of a mirror or in certain microscopy applications.
Note
L
Configuration
To configure this feature in an advanced register: See
Note
L
The use of the mirror function with color cameras and image
output in RAW format has implications on the BAYER-
ordering of the colors.

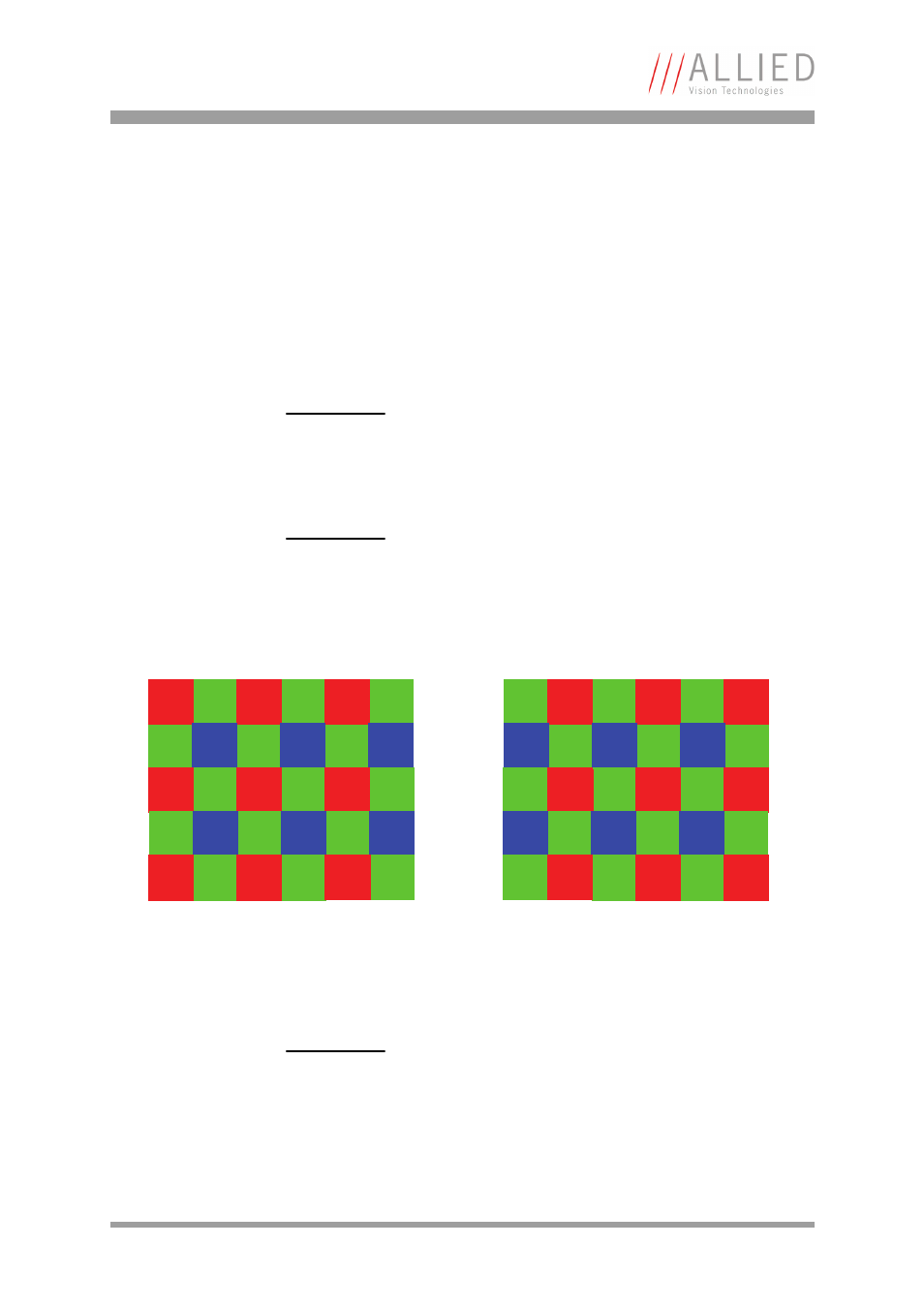

Figure 38: Mirror and Bayer order
Note
L
During switchover one image may be temporarily corrupted.
Mirror OFF: R-G-G-B (all Oscar cameras)
Mirror ON: G-R-B-G (all Oscar cameras)
