Camera interfaces
OSCAR Technical Manual V2.4.0
39
Control and video data signals
The inputs and outputs of the camera can be configured by software. The dif-
ferent modes are described below.
Inputs
Triggers
All inputs configured as triggers are linked by logical AND function. If two
inputs are being used as triggers, a high signal at the output of the block
must be present on all inputs in order to generate a trigger signal. The polar-
ity for each signal can be set separately via the inverting inputs. The camera
must be set to external triggering to trigger image capture by the trigger
signal.
Note
L
For a general description of the inputs and warnings see the
Hardware Installation Guide, Chapter OSCAR input descrip-
tion.

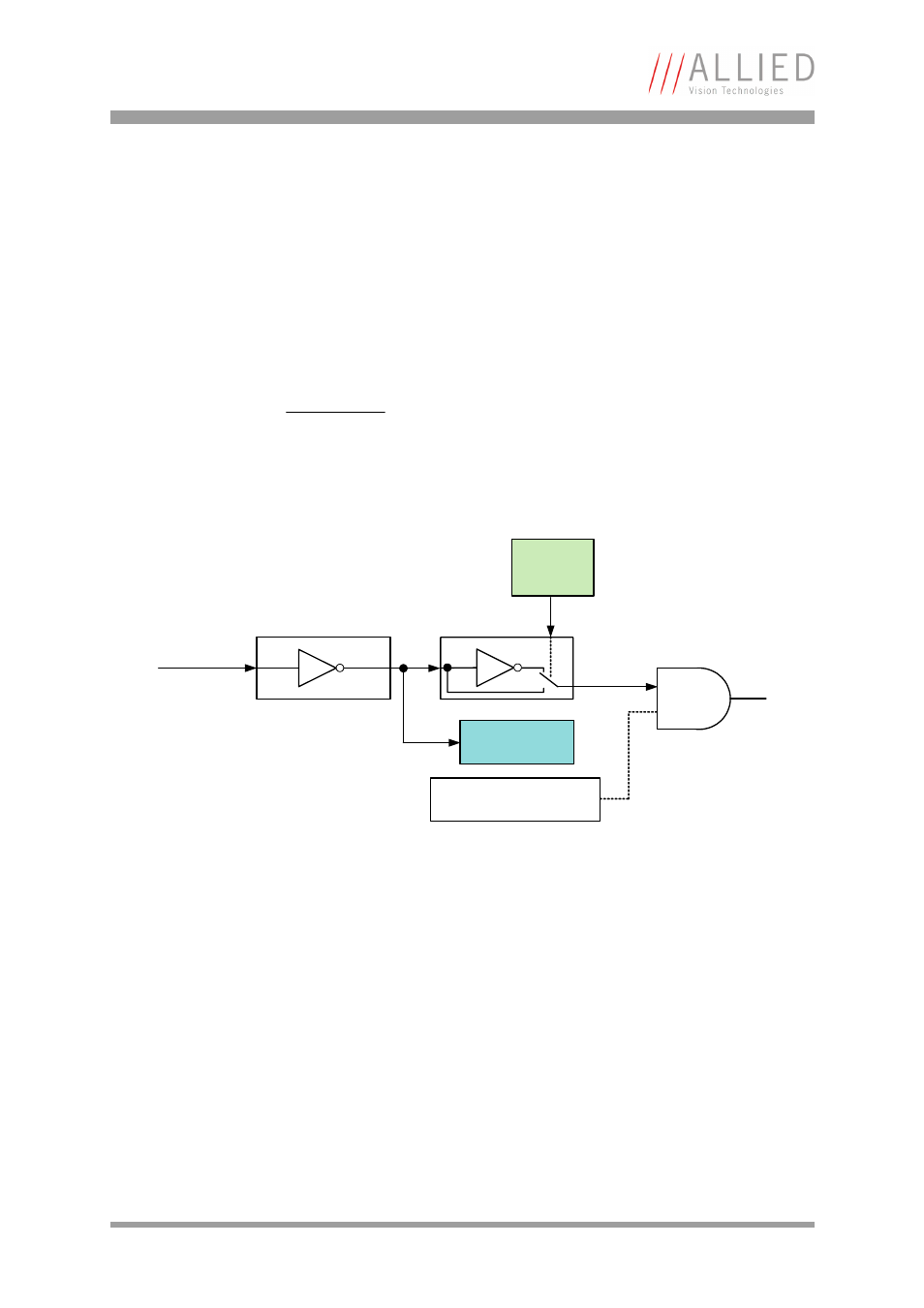

Figure 14: Input block diagram
Input
Polarity
selectable
via software
Input state
Opto-
Coupler
Input signal
Trigger-
AND
Input 2, if set to trigger
