Video formats, modes and bandwidth
OSCAR Technical Manual V2.4.0
130
The following table lists the various increments in pixel (px) as a function of
the camera model and mode.

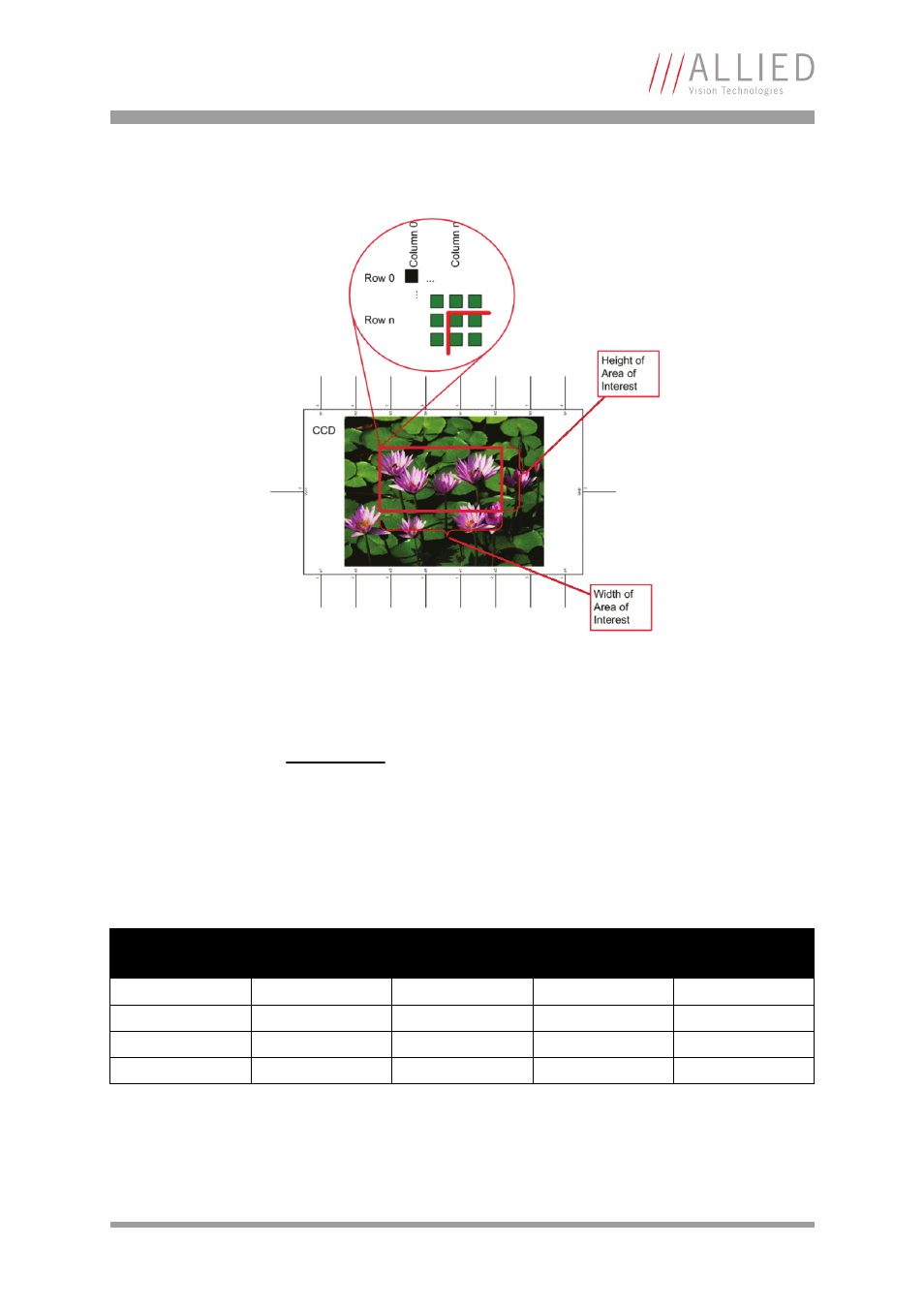

Figure 55: Area of Interest (AOI)
Note
L
• The left position + width and the upper position
+ height may not exceed the maximum resolution of the
sensor. The increments may vary from model and mode.
• The coordinates for width and height must be divisible
by a factor which is depending on the camera model.
Camera Oscar F-320C Oscar F-510C Oscar F-810C
F_7 Mode_0/1 Oscar F-810C
F_7 Mode_2
H-Pos 2 px 2 px 2 px 2 px
V-Pos 2 px 2 px 6 px 2 px
H-Size 4 px 4 px 4 px 4 px
V-Size 2 px 2 px 3 px 2 px
Table 50: AOI increments for different camera models and Format_7 modes
