Camera dimensions
OSCAR Technical Manual V2.4.0
29
Camera dimensions
Oscar standard housing
Note
L
For information on sensor position accuracy:
(sensor shift x/y, optical back focal length z and sensor rota-
tion
α) see Chapter
Sensor position accuracy of AVT cameras

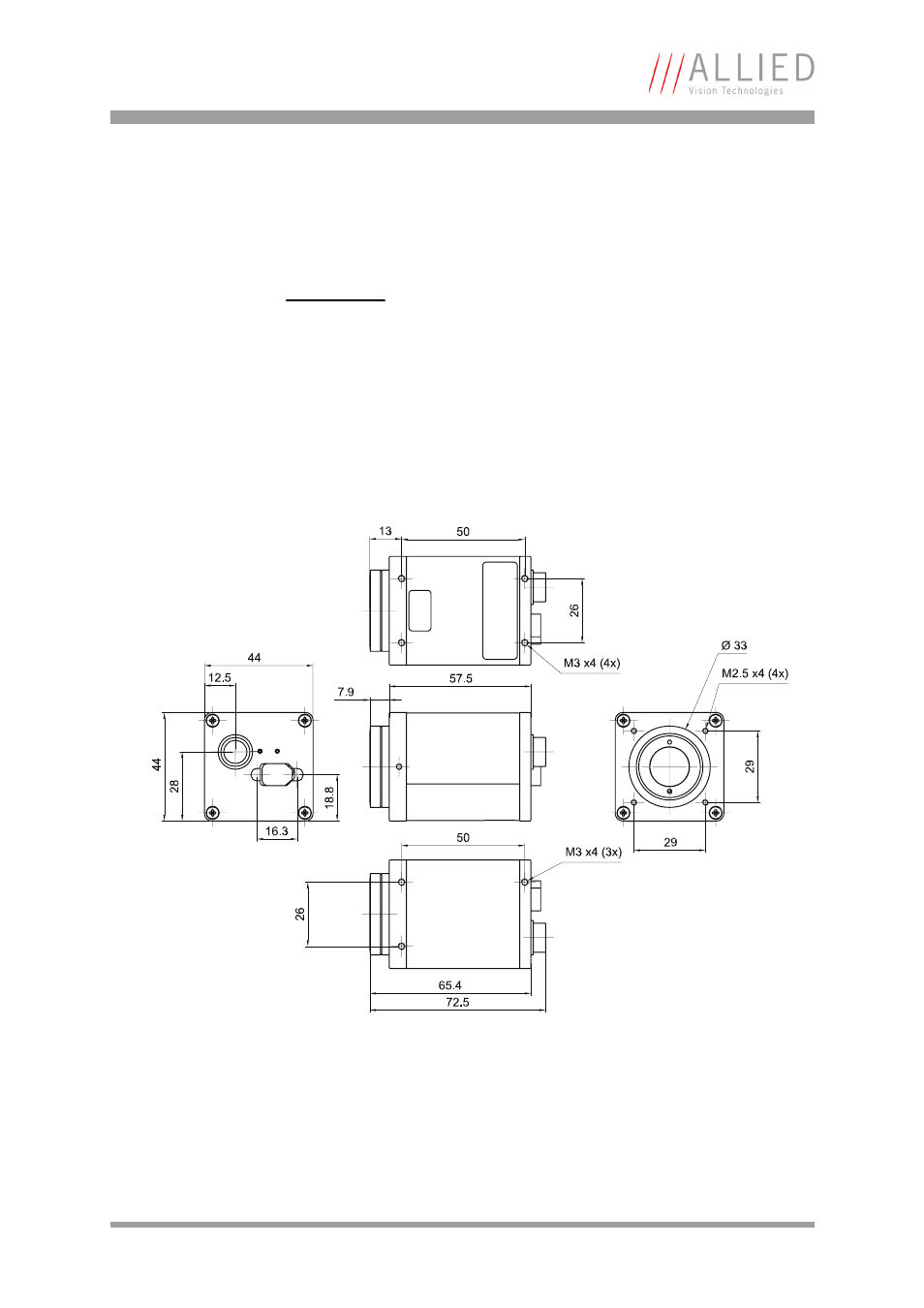

Figure 5: Camera dimensions
☺
Body size: 72.5 mm x 44 mm x 44 mm (L x W x H)
Mass: 170 g (without lens)
