Camera interfaces
OSCAR Technical Manual V2.4.0
35
Camera interfaces
This chapter gives you detailed information on status LEDs, inputs and out-
puts, trigger features and transmission of data packets.
IEEE 1394a port pin assignment
The IEEE 1394 plug is designed for industrial use and has the following pin
assignment as per specification:
Note
L
For a detailed description of the camera interfaces
(FireWire, I/O connector), ordering numbers and operat-
ing instructions see the Hardware Installation Guide,
Chapter Camera interfaces.
Read all Notes and Cautions in the Hardware Installation
Guide, before using any interfaces.

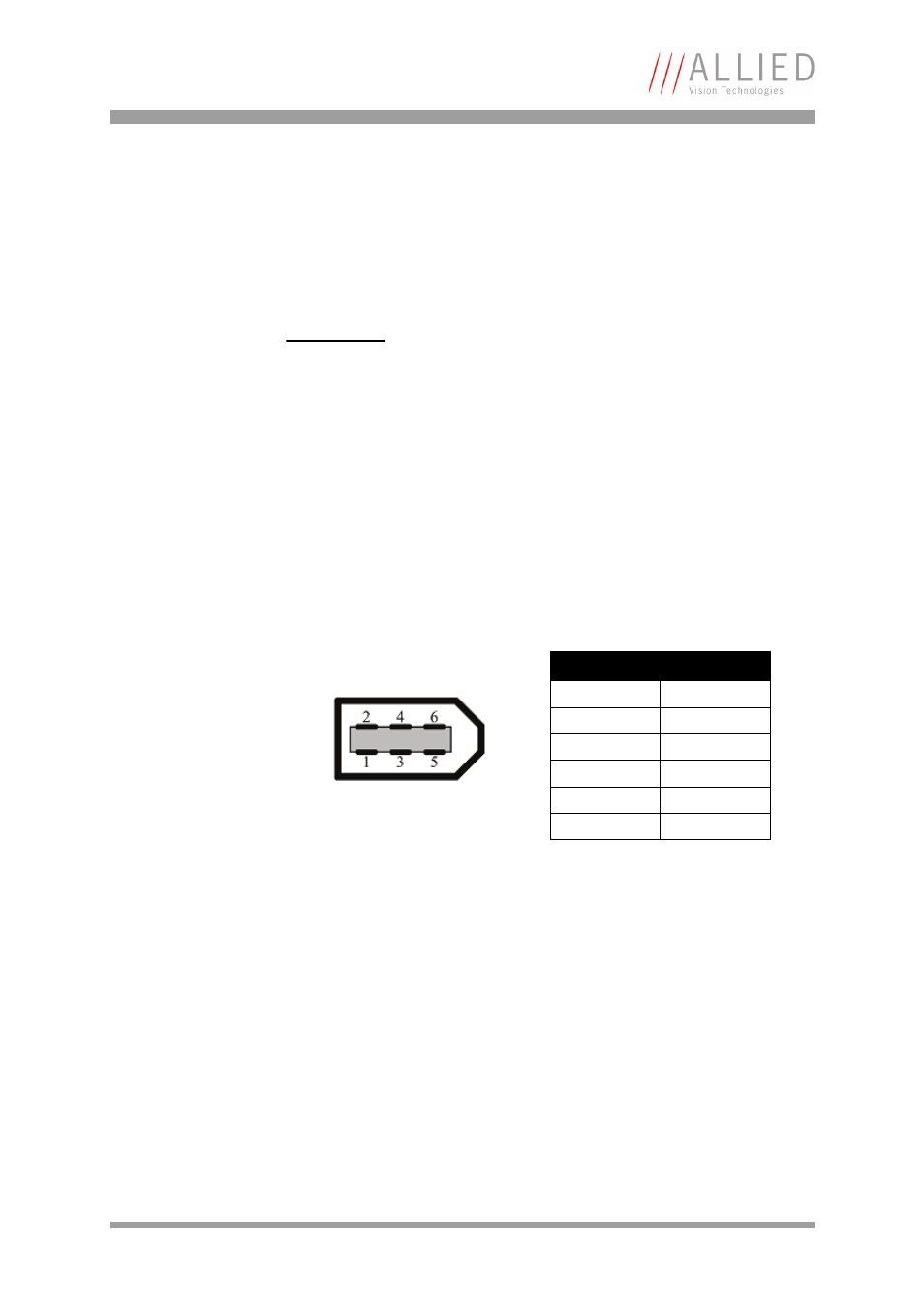

Figure 11: IEEE 1394a connector
Pin Signal
1 Cable power
2 Cable GND
3 TPB-
4 TPB+
5 TPA-
6 TPA+
