Room Alert 12E

AVTECH Software, Inc.

5

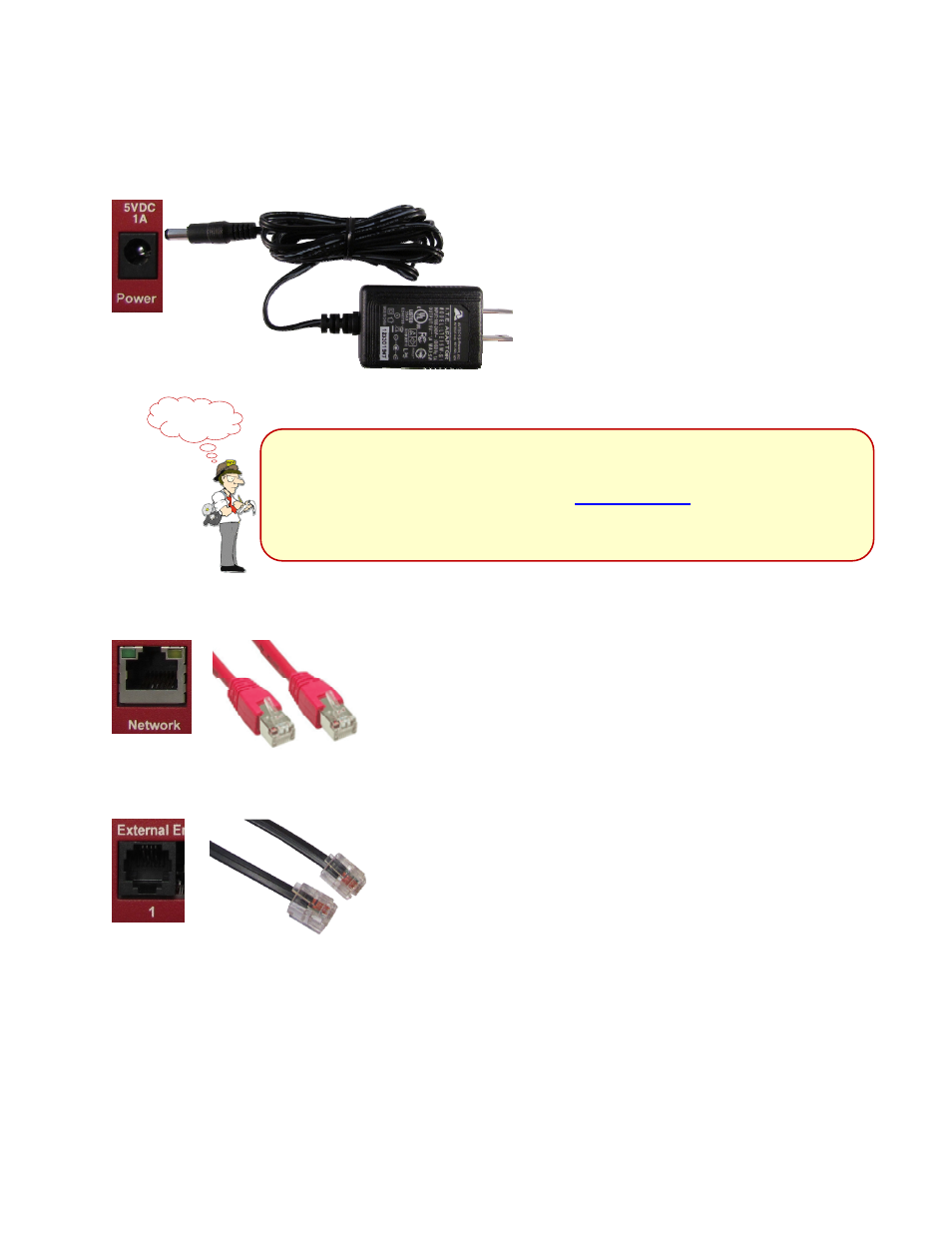

Front

Power Port

A standard power port connects Room Alert 12E to an
electrical outlet with AVTECH’s International
Power Adapter.

Ethernet Port

An RJ-45 PoE-enabled port connects Room Alert 12E
to your network via an RJ-45 network cable.

Digital Sensor Ports

Three (3) standard RJ-11 jacks connect any AVTECH
digital sensor to your Room Alert 12E via a standard
RJ-11 (straight through) telephone cord. Digital
Sensor Port 1 is shown here.

Look for the AVTECH logo. Using another power adapter could
damage the Room Alert 12E’s circuit board and void the warranty. If
you need one, purchase it online at

AVTECH.com

.

AVTECH has an

international power adapter with a compatible plug style for each and
every country.

NOTE
