79

746-257-B2-001, Rev. B (01/2014)

11.0 Dual IP Mode

11.3

Configuring Dual IP Mode, continued

To change the CPE IP address allocation option from

DHCP to Static via the Web Server, refer to the

following:

1. Connect to IDH4 via Web browser per the procedure in

Section 4.0, Web Interface.

2. In the

Advanced Configuration menu of the Transponder Web page, click the Communications

button.

3. Click the

Static button in the CPE Communications Module column of the page. Refer to Figure 11-

5. When prompted for User Name and Password, refer to

Section 4.3.1, Web Interface Security

Levels for User Name and Security Password

4. Enter the desired IP Address, Subnet Mask and Gateway in the provided data fields.

5. Click the

Set button to update the Communications Module with the new values.

6. Confirm the new Static IP Address is listed under the CPE Communications Module column of the

General page. Refer to Figure 11-6.

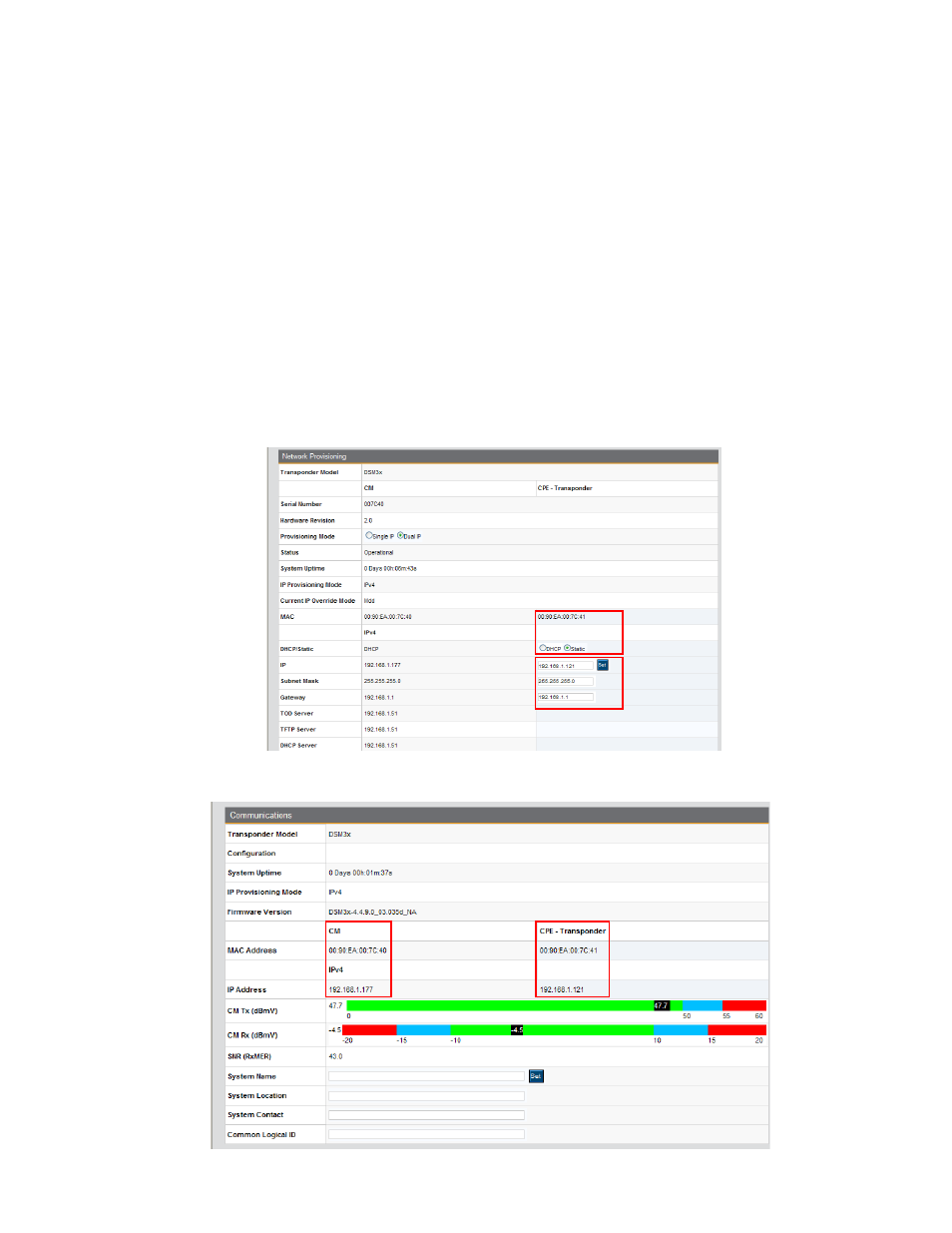

Fig. 11-5, Dual IP Configuration Settings for Transponder Web Server Communications Page

Fig. 11-6, Dual IP Parameters for Transponder Web Server General Page
