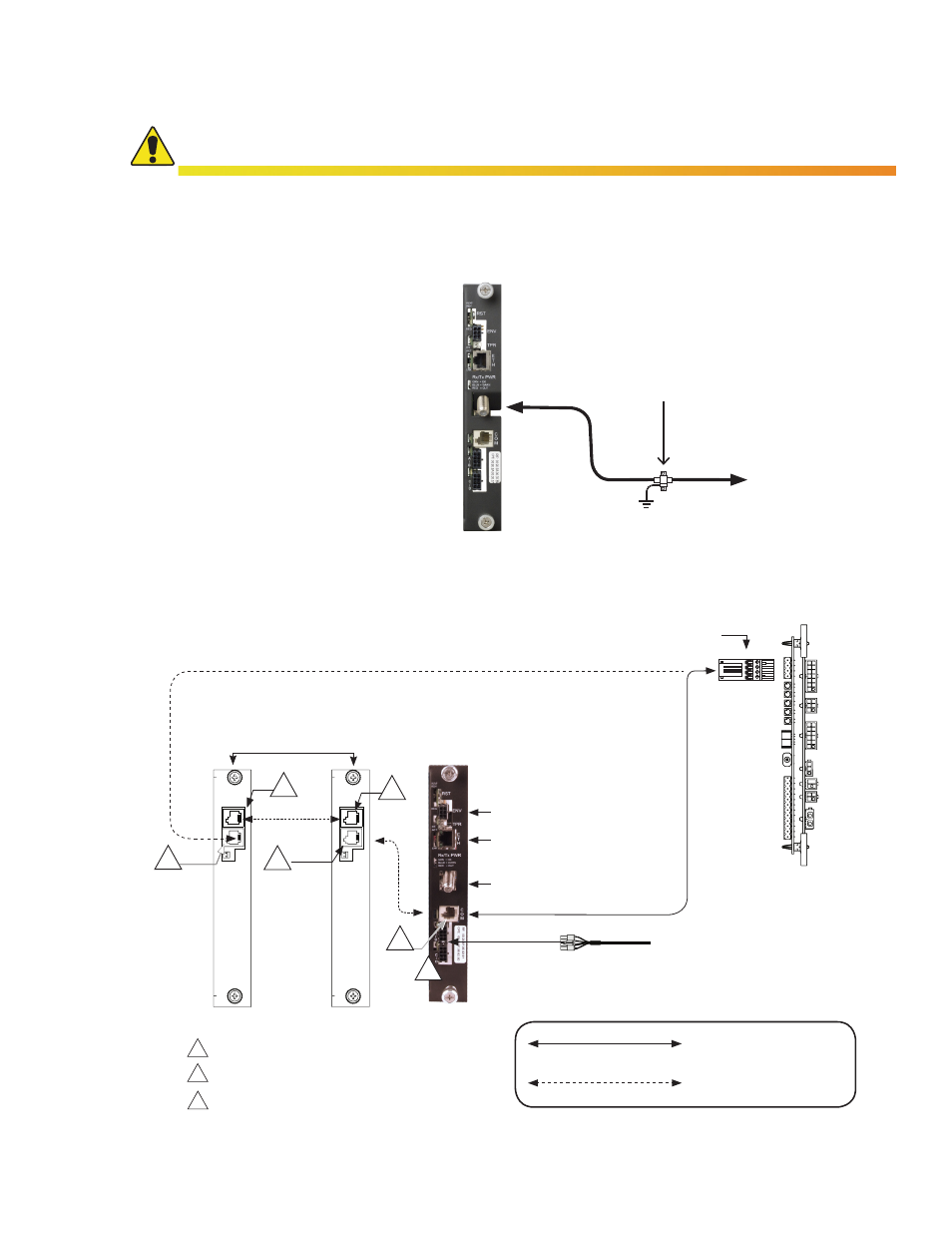

Page 59: Fig. 7-16, system interconnection diagram, Rf cable to headend grounded surge protector, Fig. 7-15, connecting the rf drop

background image

59

746-257-B2-001, Rev. B (01/2014)

Fig. 7-16, System Interconnection Diagram

7.7

Front Panel Connections

Connections

Connections with more

than one power supply

Battery Sense Wire Harness

Refer to Section 8 for part numbers and wiring

options.

C

O

M

S

Y

S

C

O

M

S

Y

S

Generator (ECM)

ECM to SCM Interface

(Alpha P/N 704-709-20)

B

C

A

A

B

Comm Port

System Port

Battery Sense Connections

B

C

A

A

Environmental connection
Ethernet connection

RF connection

7.0 Installation

Connect the RF drop according to the diagram below. The RF drop must have a properly installed

ground block in the power supply enclosure. Recommended downstream RF level is 0 dBmV.

Connect any other front panel connections at this time (e.g. battery strings, tamper switch).

Install a grounded surge suppressor (Alpha P/N 162-028-10 or equivalent).

CAUTION!

RF Cable

to Headend

Grounded Surge Protector

(See Caution Above)

Fig. 7-15, Connecting the RF Drop

7.6

Connecting the RF Drop

Linked CableUPS

Serial Interface Cards

IDH4X in

Primary XM2

AlphaBus Cable

(Alpha P/N 875-190-20 for 6',

-21 for 9', -22 for 18', -23 for 35')
